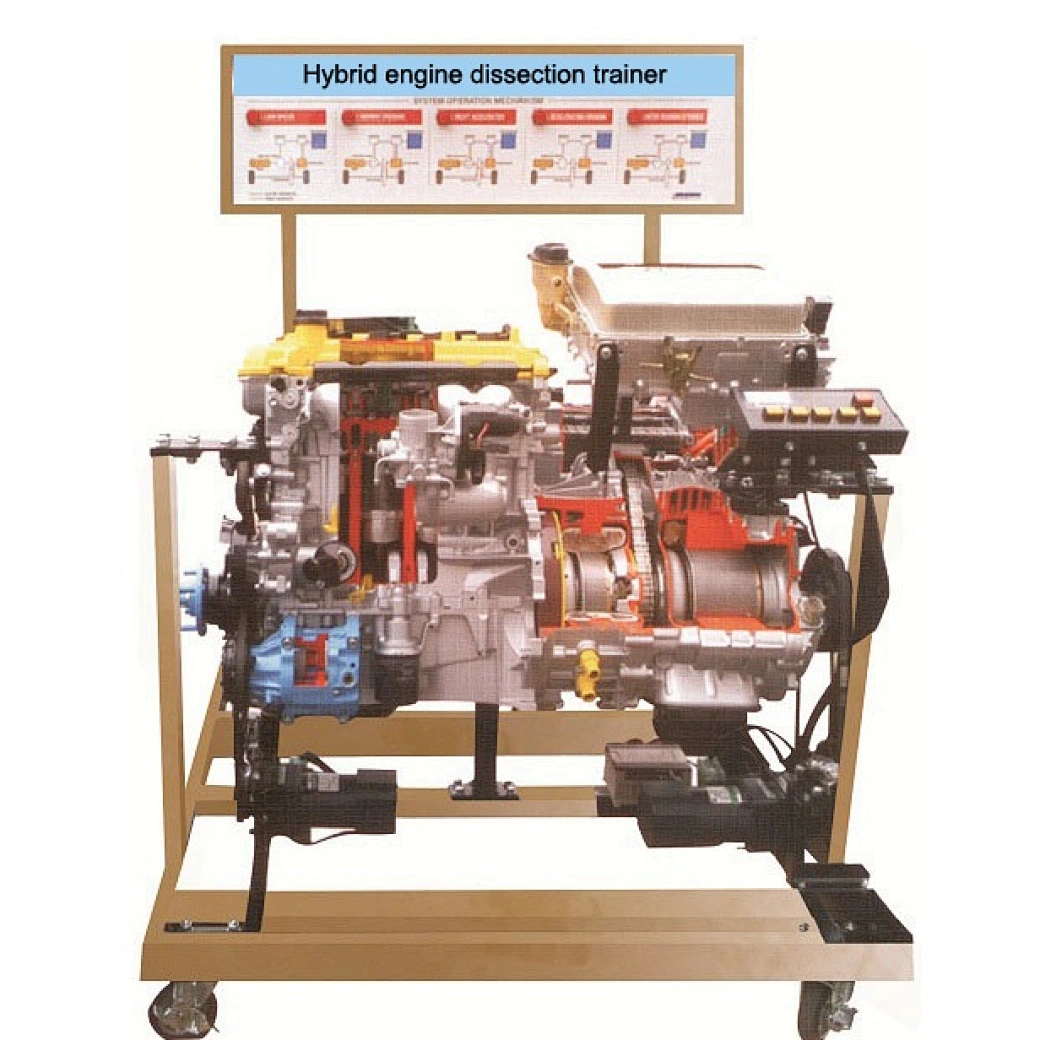

Hybrid engine dissection trainer

GTAT-1010

Technical parameter
1. Dimensions: 1250x1250x1500mm
2. Gear reducer motor: Single phase, 120W, <=100rpm
3. Power supply: AC 220V, 50Hz

Delivery

EXW

minimum order

1 set

Supply Ability

30set / Month

Country of Origin

Guangzhou,China

Stock Time

45Day

Quantity

Contact Now

The automotive training equipment engine training model dissection hybrid engine trainer uses hybrid engine cutaway to observe the components and parts of hybrid engine, such as the generator, motor, gearbox, etc in the structure of the hybrid engine system. The dissection models dissection hybrid engine dissection models displays the basic principles and structures of hybrid engine, and simulates its operation. This engine training model dissection models can be used to learn the basic knowledge, inspection work and other knowledge and skills of hybrid engine. The engine training model dissection hybrid engine is also suitable for the teaching and skills training of hybrid engine in higher vocational colleges and secondary vocational colleges. At the same time, dissection models dissection hybrid engine training model can also be used as an educational equipment for skill training in technical schools, vocational education centers, and vocational qualification appraisal stations.

Technical parameter

1. Dimensions: 1250x1250x1500mm

2. Gear reducer motor: Single phase, 120W, <=100rpm

3. Power supply: AC 220V, 50Hz

Product composition

Gasoline engine assembly	1PCS
Transmission assembly	1PCS
Generator	1PCS
Power separation device	1PCS
Inverter	1PCS
High voltage battery	1set
Mobile stand with training panel	1PCS
Electric driving motor	1PCS

Training courses

1. Function introduction of main components of the hybrid engine assembly;

2. Demonstration of the work principle and process of the hybrid engine;

Suitable car or engine models listed below:

P.N.	Car model
GTAT-1010-001	Renewed Toyota Corolla hybrid engine
GTAT-1010-002	Renewed Toyota Camry hybrid engine
