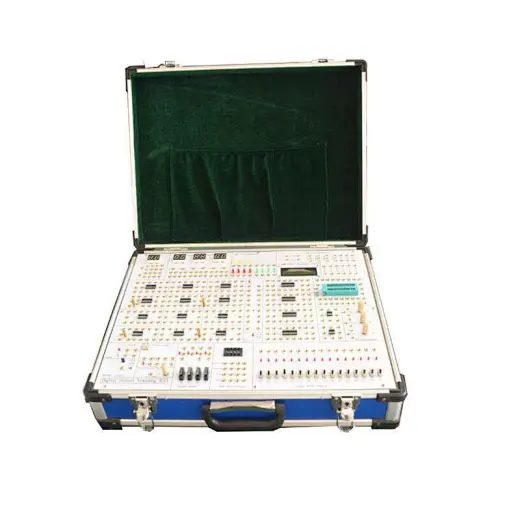

This digital circuit training teaching equipment uses high level quality components, the teaching equipment is designed for carrying out multi type digital circuit experiments and the digital circuit training electrical lab equipment is suitable for electronic technology research and development in the vocational and technical school and universities. The electrical lab equipment is also suitable for the teaching and skills training of related majors in higher vocational colleges and secondary vocational colleges. At the same time, the digital circuit training device electrical lab equipment can also be used as an teaching equipment for skill training and skill appraisal in technical schools, vocational education centers, and vocational qualification appraisal stations.

Technical parameter
Dimension: About 500mm × 380mm × 160mm
Power supply: Single phase, AC 220V±10% ,50HZ
Weight: about 5kg

Product description
This training it uses high level quality components, it is designed for carrying out multi type digital circuit experiments and it is suitable for electronic technology research and development in the vocational and technical school and universities.

Product composition
No.
Name
Specs
QTY
1
6 digital high accurate digital frequency meter

0-9.9999MHZ, error<1HZ


1PCS
2
Manual single pulse circuit
can simultaneously output both positive and negative pulses, pulse amplitude is TTL level.
2 groups
3
5 channel fixed frequency pulse sources
1HZ,1KHZ,10KHZ,100KHZ,1MHZ
1PCS
4
Continuous pulse, output TTL level

1PCS
5
8 digital independent logic level switches
output"0","1"level (positive logic)
1PCS
6
8 digital logic level display circuit
composed by red LED and driver circuit
1PCS
7
4 digital BCD decoder display circuit
composed by the eight LED digital display
1PCS
8
Eight LED digital tube

1PCS
Training courses
1. Transistor switching characteristics
2. TTL logic function and parameter test
3. CMOS logic function and parameter test
4. Connection and driver of integrated logic circuits
5. Design and test of combinational logic circuit
6. Decoder and its application
7. Data selector and its application
8. Trigger and its application
9. Counter and Its Applications
10. Shift Register and its Applications
11. Pulse divider and its application
12. Generate pulse signal by the gate circuit
13. 555 time-base circuit and its application
14. D / A, A / D converter
15. Contest Responder
16. Electronic stopwatch
17. 3-1/2 dc digital voltmeter
18. Digital frequency meter
19. Tug of war game
20. Random access memory 2114A and its application
21. Traffic light automatic controller
22. Car tail light controller
