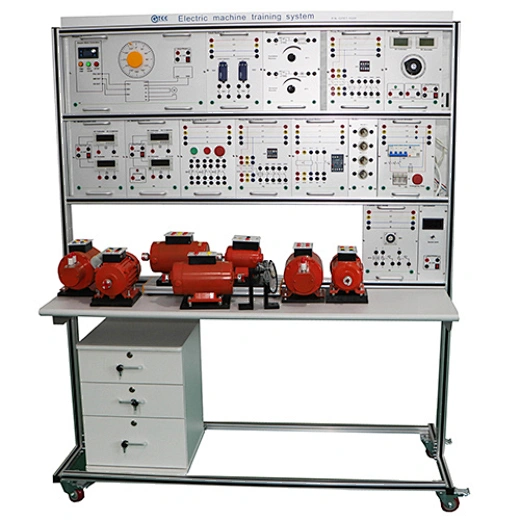

The electric motor training equipment mechatronics training system
GTET-1020
Technical parameter
Power supply: Three phase, AC380V/50Hz
Dimension: 1500*660*1800mm
Weight: About 150kg
Power supply: Three phase, AC380V/50Hz
Dimension: 1500*660*1800mm
Weight: About 150kg
Delivery
EXW
minimum order
1 set
Supply Ability
30set / Month
Country of Origin
Guangzhou,China
Stock Time
45Day
Quantity
The electric motor training equipment mechatronics training system is suitable for experiments and testing in skills development and training of electrical machine. The mechatronics training system electric motor training equipment is a useful electrical lab equipment. This electric motor training equipment can be used to learn the basic knowledge, process preparation, processing and assembling, inspection work and other knowledge and skills of electrical motors. The electrical lab equipment is also suitable for the teaching and skills training of related majors in higher vocational colleges and secondary vocational colleges. At the same time, the mechatronics training system electrical lab equipment can also be used as an assessment device for skill training and skill appraisal in technical schools, vocational education centers, and vocational qualification appraisal stations.
Technical parameter
Power supply: Three phase, AC380V/50Hz
Dimension: 1500*660*1800mm
Weight: About 150kg
Product composition
No. | Name | Specs | Qty |
1 | DC Compound Motor | Power: 300 W, Voltage: 220VDC, Speed: 1500 rpm | 1 set |
2 | Single Phase Synchronous Generator | Power: 300 W, Voltage: 220VAC, Speed: 1500 rpm | 1 set |
3 | Permanent Split Capacitor Motor | Power : 250 W, Voltage: 220VAC, Speed: 1500 rpm | 1 pcs |
4 | Three Phase Induction Motor | Power: 370W, Voltage: 380VAC, Speed: 1500 rpm, Connection: Δ & Υ | 1 set |
5 | Three Phase Synchronous Generator | Power: 300W, Voltage: 380VAC,Speed: 1500 rpm, Connection: Υ | 1 set |
6 | DC Separately Excited Motor | Power: 250W, Voltage: 220VDC, Speed: 1500 rpm | 1 pcs |
7 | AC Measurement Module | Voltmeter Range: 0~500VAC, Ammeter Range: 0~2A, | 1 set |
8 | DC Measurement Module | Voltmeter Range: 0~500VDC, Ammeter Range: 0~2A, Output: 220~250VDC | 1 set |
9 | Indication Bulbs Module | Input : AC 220V, 50Hz; single-phase, 4 incandescent lamp | 1 pcs |
10 | Thermal Overload Relay Module | Rated Voltage : 220VAC, Rated Current : 1.0 A- 22 A | 1 set |
11 | Limit Switch Module | Rated Voltage : 220VAC, 2-off limit switch | 1 set |
12 | Simulate Switch Board | Rated voltage : 220VAC, 2 push button | 1 pcs |
13 | Fault Current Circuit Breaker | 3-off protection fuse; 2 A , Pilot lamps L1 , L2 & L3, Fault current circuit breaker 3-Poles Input: AC 380V/50Hz 3-Phase | 1 pcs |
14 | Three Phase Contactor | Rated Voltage : 380VAC, Rated Current : 10 A Max. Coil Voltage: 220VAC | 1 pcs |
15 | Rheostat | 2 Protection Fuse; 2 A, Excitation Resistor: 0~1kΩ, Armature Resistor: 0~100Ω | 1 pcs |
16 | Y-Delta Timer Relay | Coil Voltage: 220VAC, Contact: Normally open (N.O.) & Normally closed (N.C.) Time : 0~60 seconds | 1 pcs |
17 | DC Motor Control Unit | Output: 0~240VDC, Fixed 250VDC, Input: AC 220V, 50Hz single-phase | 1 pcs |
18 | Tachometer | RPM Range: 0~9999rpm, Input: AC 220V | 1 pcs |
19 | Tacho-Generator Module | Speed: 1500 rpm, Output: Max. 20 VDC | 1 pcs |
20 | Stepper Motor Unit | Frequency Ranges: 5Hz,50Hz, 100Hz, 500Hz, 1k Hz and 5k Hz Counter reset function, Direction: CW or CCW | 1 pcs |
21 | Rotate Speed Sensor Module | Used with DC motor control unit / Tachometer | 1 pcs |
22 | Connecting cable | For connecting junction point 4 mm | 1 set |
Training courses
The equipment covers the learning objectives via experiment includes:
1. Starting control
2. Self-Lock control
3. First connection for contactor (KM)
4. Second connection for contactor (KM)
5. Third connection for contactor (KM)
6. Fourth connection for contactor (KM)
7. The working principles of forward and reverse rotation control circuits of switch interconnects
8. Forward and reverse rotate control circuits of contactor interconnect (1)
9. Forward and reverse rotate control circuits of contactor interconnect (2)
10. Auto stop control by travel switch
11. The connection of changing star to delta
12. Operates the DC motor & DC generator
13. DC Motor & DC generator usage
