Order No.: GT2021051001
Specification:
Power supply：
DC output : +/- 0~20V 2A, ±5V 1A,±15V 1A

AC output 240V 0.5A, 12V 0.5A ,Digital Multimeter AC/DC Voltage : 1mV~400V

DC Current 1mA~4A ,Resistance 0~4 MΩ ,

Function Generator 1Hz ~ 100Khz (Max 20Vp-p) sinewave,trianglewave,squarewave,sawtoothwave
Realtime control OS ：
windows 10/ Android Lollipop 5.1.1
Laboratory CPU：
Intel Atom Bay Trail-TZ3735F/Quadcore/1.33Ghz , RAM : DDR 2GB , In memory 32GB,

Out Memory Maximum 128GB support , LCD : 10"IPS Screen  Resolution 1280x800,

Touch pannel : 10 point capacitive multi-touch screen

Size 257x172x10mm

Input Power Bandwith 25MHz ,Inner Oscilloscope Channels 2

(Option) Vertical Resolution 8 bits

Bandwitdth 25MHz
Input ranges ：
+50mV~+20V, Overvoltage protection +100V
Memory ：
16Kb,Maximum sample rate 200ms
Trigger modes：
none,auto,repeat,single , Automatic measurements : scope mode,statistics

Spectrum mode: frequency at peak,amplitude at peak THD db,SNR-SINAD,SFDR  totalpower,

average amplitude at peak
Mask limit testing  :
mask generation (numeric or graphical) SDK/API:

32 and 64 bit drives for windows 7,8 and 10  Linux drivers, mac OS X drivers

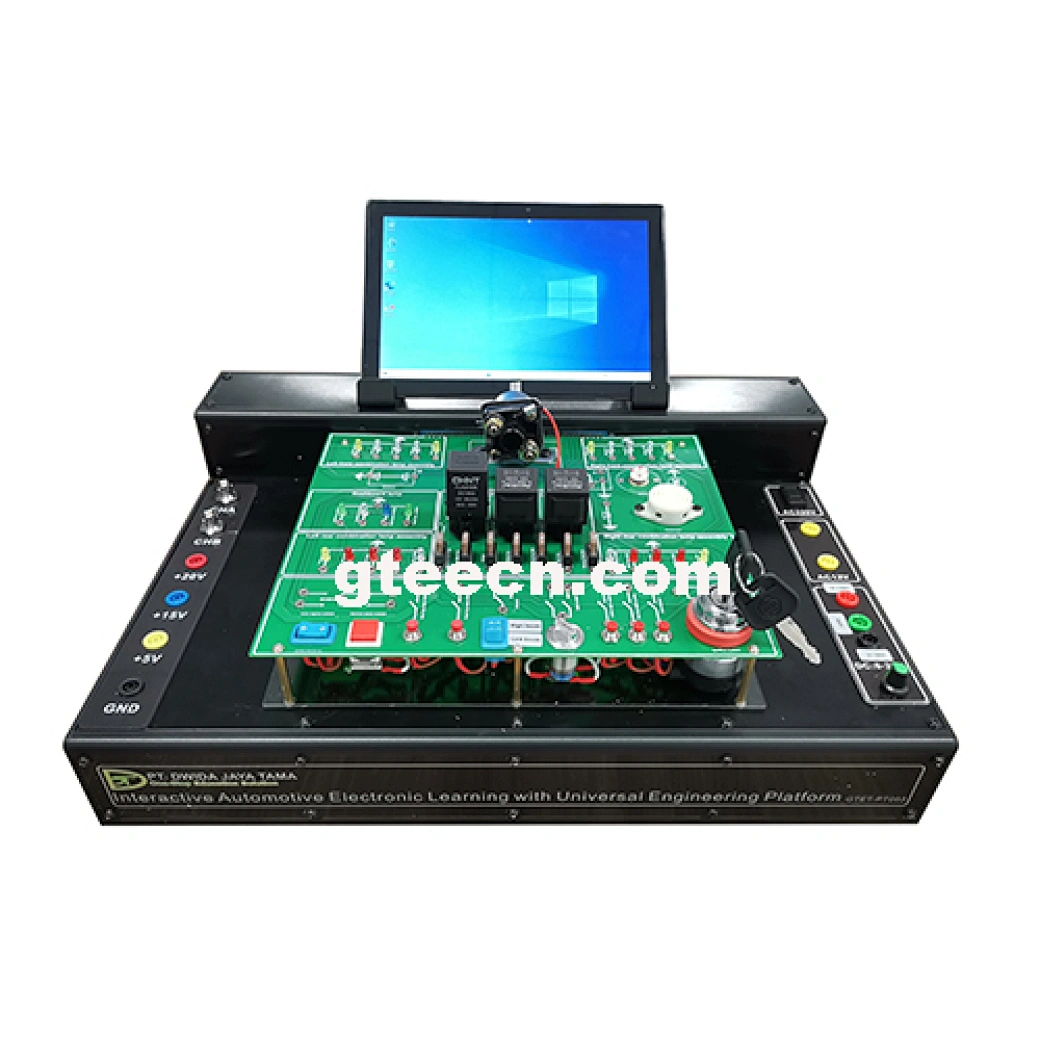

Including training module :
AUTO ELECTRICS
Topic covered included : Battery & Fuse experiment
Starter & solenoid experiment, Horn & relay experiment, Light circuit experiment
Brake & reversing light, Fault find-out experiment
