The educational equipment teaching trainer mainly controls the start and stop of the system through buttons. After the electrical training equipment is started, the teaching trainer will automatically switch between star and three-phase startup. The changes of voltage and current on meters can display the working voltage and current of the educational equipment in real time. The educational equipment electrical training equipment is also suitable for the teaching and skills training of related majors in higher vocational colleges and secondary vocational colleges. At the same time, the teaching trainer electrical training equipment can also be used as an assessment device for skill training and skill appraisal in technical schools, vocational education centers, and vocational qualification appraisal stations.
Technical parameter
Power supply: Three phase, AC380V/50Hz
Size: 600*600*1500mm
Weight: About 50kg

Product description

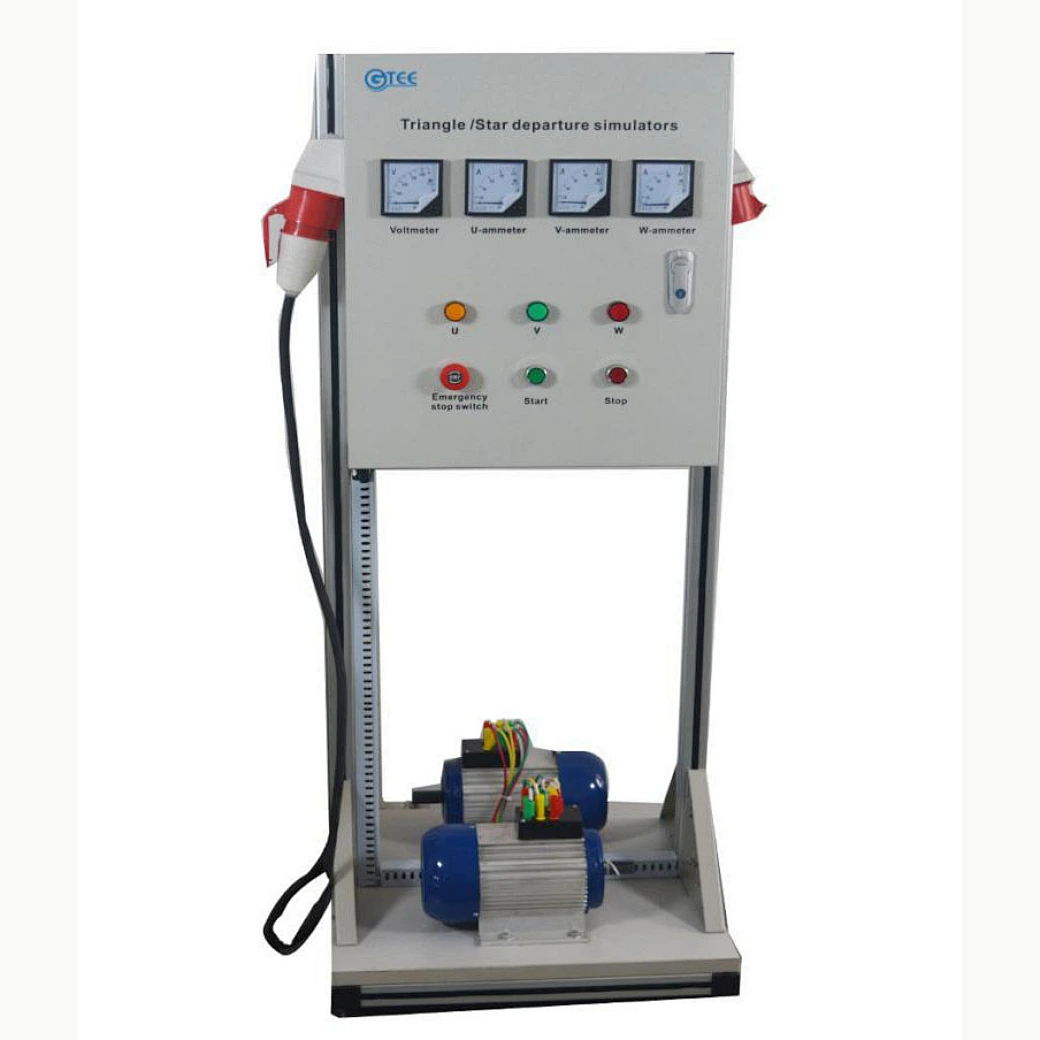

The training bench mainly controls the start and stop of the system through buttons. After the system is started, it will automatically switch between star and three-phase startup. The changes of voltage and current on meters can display the working voltage and current of the system in real time.

Product composition
No.
Name
Specs
QTY
1
Voltmeter
1PCS
2
Ammeter
3PCS
3
Power indicator light
3PCS
4
Three-phase AC motor
2PCS
5
Work bench
1PCS
Training courses
1. Start and stop the three phase AC motor through triangle connection
2. Start and stop the three phase AC motor through star connection
