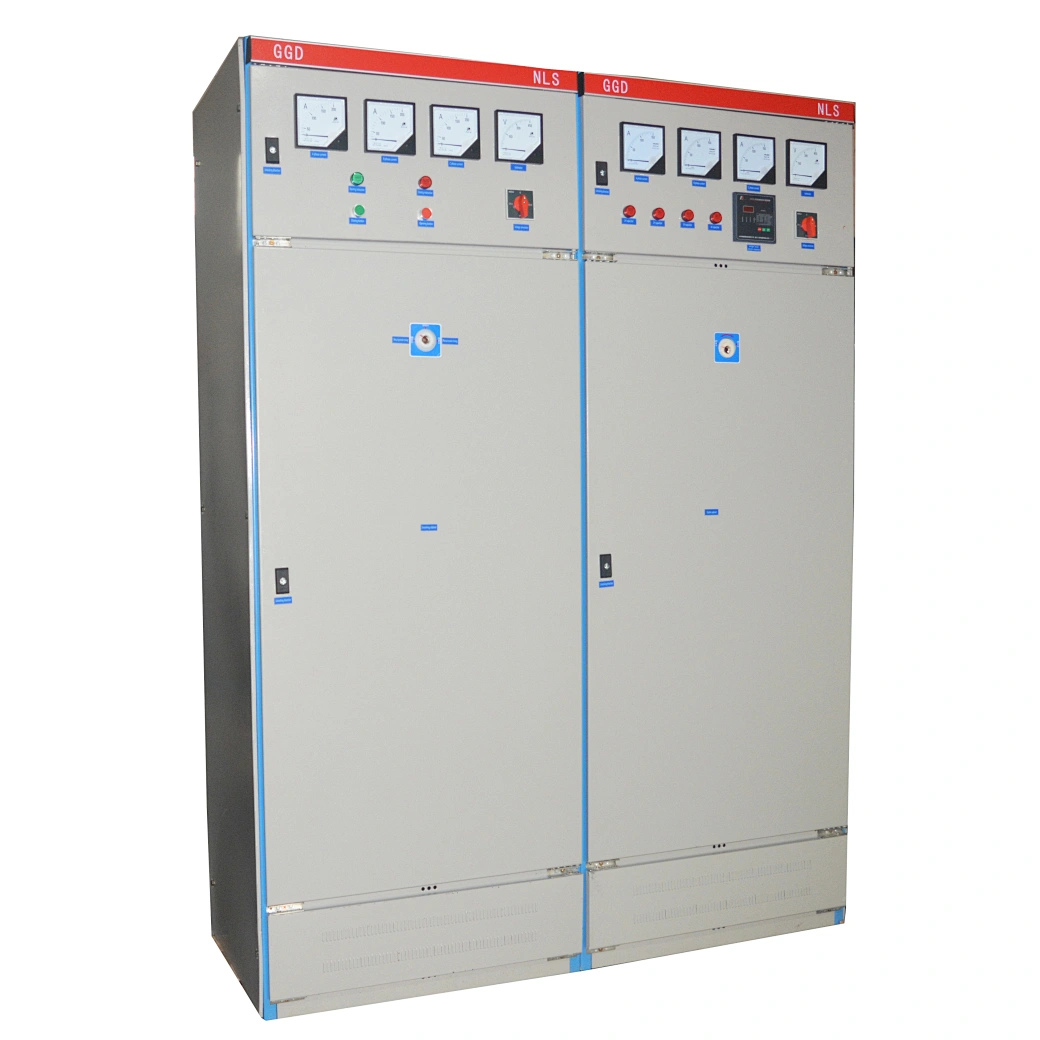

This educational equipment low voltage electrical device is mainly composed of analog high voltage cabinet, low voltage cabinet, voltmeter, ammeter and inactivity automatic compensation controller. The vocational training equipment describes the working principle of the power distribution cabinet. By using this low voltage electrical device vocational training equipment, students can gain deep understanding of how the power distribution cabinet works. This educational equipment can be used to learn the basic knowledge and other knowledge and skills of low voltage electrical device. The vocational training equipment is also suitable for the teaching and skills training of related majors in higher vocational colleges and secondary vocational colleges. At the same time, the educational equipment can also be used as an assessment device for skill training and skill appraisal in technical schools, vocational education centers, and vocational qualification appraisal stations.

Technical parameter
Supply voltage: Three-phase 380V AC
Dimension: 1630x 660 x 2200mm
Weight: About 500kg

Product composition and function
This equipment is mainly composed of analog high voltage cabinet, low voltage cabinet, voltmeter, ammeter and inactivity automatic compensation controller. The system describes the working principle of the power distribution cabinet. By using this device, students can gain deep understanding of how the power distribution cabinet works.

Product composition
No.
Item
Specs
Qty
1
High voltage cabinet

1 set
2
Low voltage cabinet

1 set
Training courses
1. System wiring
2. Power-on operation for high voltage cabinet
3. Power-on operation for low voltage cabinet
4. Usage method of reactive power automatic compensation controller of low voltage cabinet
