Fire alarm system training kit
GTET-1022
Technical parameter
Power supply: Single phase, AC220V/50Hz
Dimension: 1500*660*1800mm
Weight: About 100kg
Power supply: Single phase, AC220V/50Hz
Dimension: 1500*660*1800mm
Weight: About 100kg
Delivery
EXW
minimum order
1 set
Supply Ability
30set / Month
Country of Origin
Guangzhou,China
Stock Time
45Day
Quantity

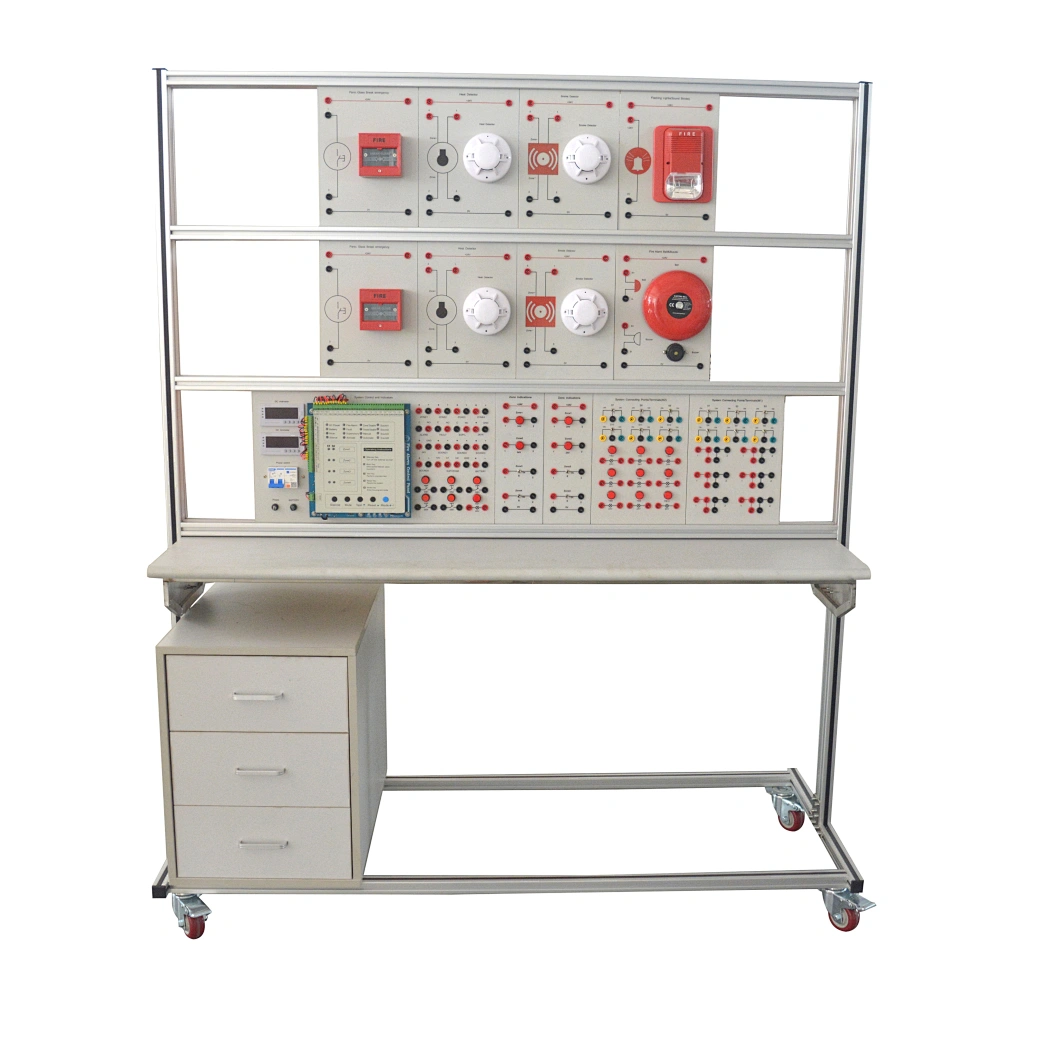

The fire alarm training equipment educational equipment is a standard 2-zone fire alarm system training unit. Components such as controls, detectors, warning devices and etc. isclearly displayed and systematically arranged on a study panel of the fire alarm trainer. The educational equipment fire alarm trainer is anexcel lent unit for students to study typical fire alarm and componentparts as well as providing facilities for fault simulations and practicalexperience in troubleshooting.The fire alarm training equipment educational equipment is also suitable for the teaching and skills training of fire alarm trainer in higher vocational colleges and secondary vocational colleges. At the same time, the fire alarm training equipment educational equipment can also be used as an assessment device for skill training and skill appraisal in technical schools, vocational education centers, and vocational qualification appraisal stations.
Technical parameter
Power supply: Single phase, AC220V/50Hz
Dimension: 1500*660*1800mm
Weight: About 100kg
Product composition
No. | Name | Specs | Qty |
1 | System control and indicators | Solid State Control Station, Ammeter, Voltmeter, 25 x LED Monitor Lights, 5 x Push Buttons 2 x Panel Fuses, 4 x Toggle Switches | 1 pcs |
2 | System connecting points/terminals | 32 x Terminal posts / sockets 4mm, 1 Set of connecting leads both ends fitted with 4mm stacking jack | 1set |
3 | 2 Zone Indications | 2 LED + 2 Toggle switches | 1 pcs |
4 | Smoke Detector | 2 pcs | |
5 | Heat Detector | 2 pcs | |
6 | Flashing Lights | 1 pcs | |
7 | Bell & Buzzer | 1 set | |
8 | Panic Glass Break Emergency Switches | 2 pcs | |
9 | Toggle Switches, | 6 pcs | |
10 | Battery Charger | 1 pcs | |
11 | Standby Battery Set | 1 pcs | |
12 | Line resistor | 2 pcs |
Training courses
1. System equipment understanding and wiring operation
2. Connection of alarm controller, short circuit isolator and linkage interface module
3. Connection and use of fire display panel
4. Connection of various fire detectors
5. Connection of intelligent input and output module, audible and visual alarm and alarm button
6. Element address coding settings
7. Management operation of the system
8. Data query operation of the system
9. Equipment start stop operation
10. Single point operation
11. Linkage programming
12. Judgment and treatment of line fault
