The educational equipment electrical skills training device can be used as electrical instrumentation and lighting circuits operating training device. This vocational training equipment educational equipment is useful for electrical skills training and this school equipment can also be used in Labor Occupational Skill Testing departments, colleges, vocational school, technical school. The vocational training equipment educational equipment is also suitable for the teaching and skills training of electrical skills training in higher vocational colleges and secondary vocational colleges. At the same time, the educational equipment vocational training equipment can also be used as an educational equipment for skill training and skill appraisal in technical schools, vocational education centers, and vocational qualification appraisal stations.

Technical parameter
Dimension: 1640×660×1630mm
Power supply: Three phase, AC380V/50Hz
Weight: About 100kg

Product description

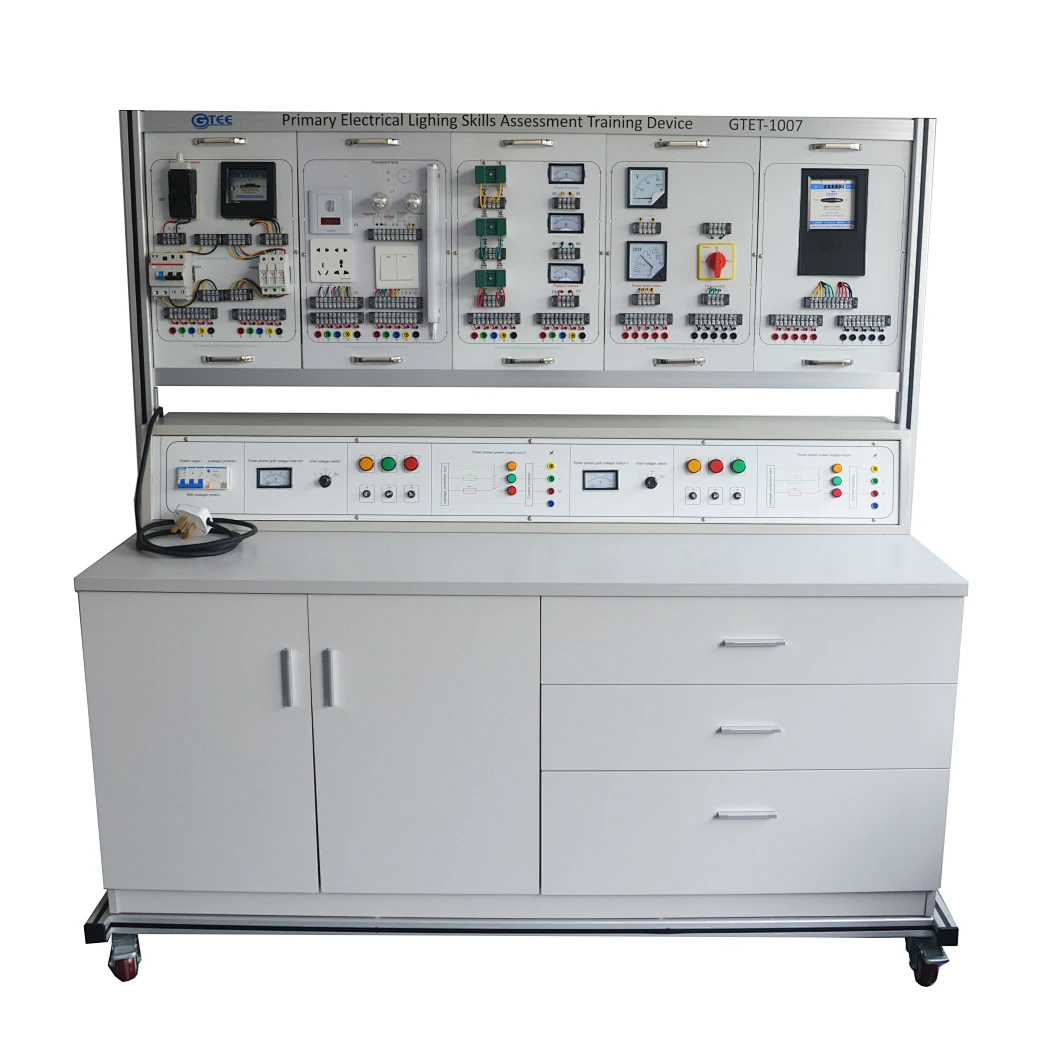

The educational equipment can be used as electrical instrumentation and lighting circuits operating training device .
And the educational equipment can also be used in Labor Occupational Skill Testing departments, colleges, vocational school, technical school.

Product composition
No.
Name
Specs.
QTY
1
Training bench

1
2
Training table

1
3
Experimental hanging box module

5
4
Cable
1*32

5
Safe banana plug cable
80CM
10
6
Bulb
E14
2
7
Fluorescent lamp

1

Training courses
1. Direct connection of single-phase watt-hour meter
2. Three-phase meter wiring users
3. Three-phase meter wiring with transformer
4. Three current transformers, three current meter for measuring a star wiring
5. Two current transformers, three current meter for measuring V-shaped wiring
6. Installation of outdoor lighting
7. Installation of lighting on the three-phase three-wire line
8. Installation and wiring of fluorescent lamp
9. Double switch control a lighting circuit connection
10. DC voltmeter and direct way of measuring meter
11. Using a voltmeter to measure the voltage
12. Three-phase four wire shunt with three wiring leakage protection switch
