Electrical installation training system
GTET-1023
Technical parameter
Power supply: Three-phase 380V/AC/50Hz
Dimension:2040X1250X2330mm
Weight: approx. 200 KG
Power supply: Three-phase 380V/AC/50Hz
Dimension:2040X1250X2330mm
Weight: approx. 200 KG
Delivery
EXW
minimum order
1 set
Supply Ability
30set / Month
Country of Origin
Guangzhou,China
Stock Time
45Day
Quantity

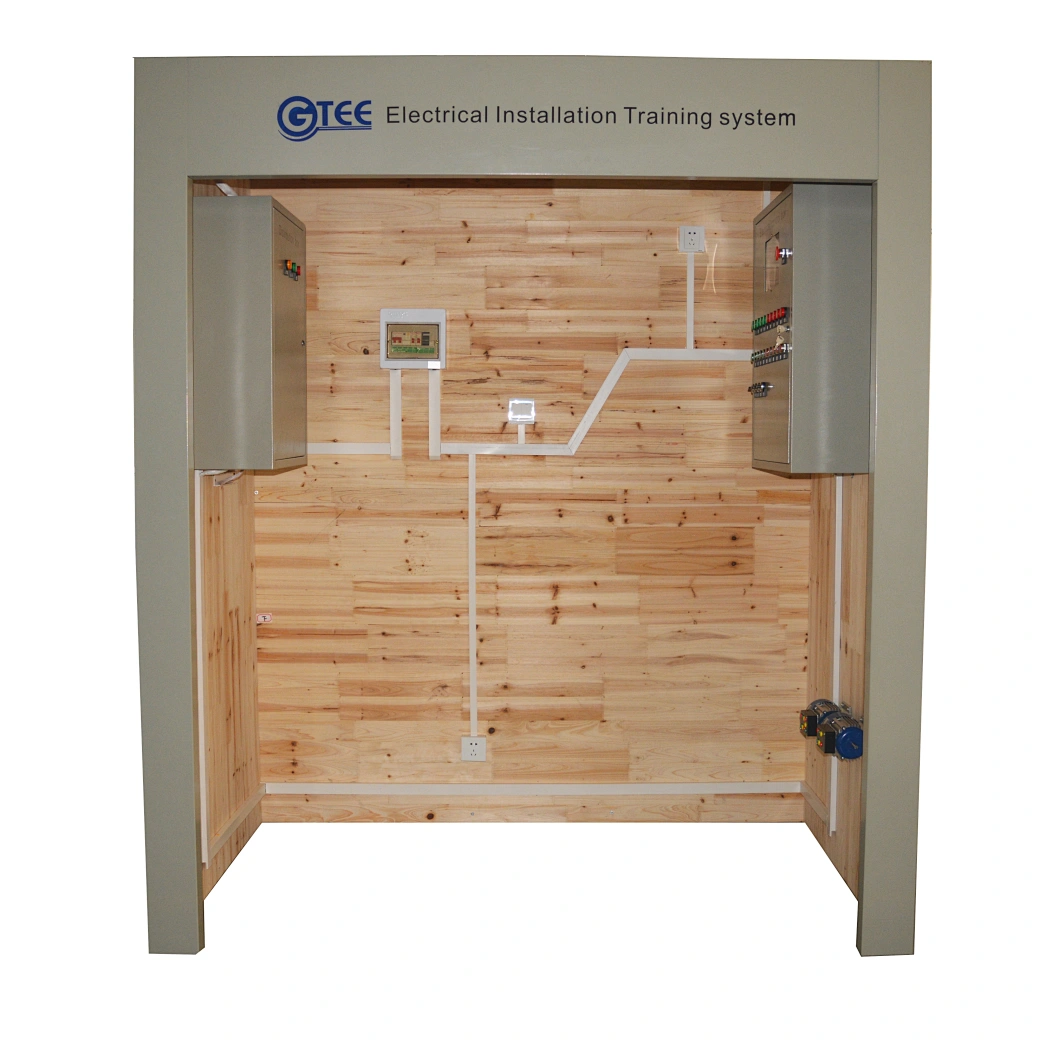

This electrical lab equipment electrical installation trainer teaching equipment is using the design, layout, wiring, programming, commissioning, operation, fault repair and other operations of the electrical training equipment system, students can master the comprehensive ability of electrical lab equipment installation, commissioning, operation and maintenance. The electrical training equipment teaching equipment electrical installation trainer is also suitable for the teaching and skills training of electrical installation trainer in higher vocational colleges and secondary vocational colleges. At the same time, the teaching equipment electrical training equipment can also be used as an electrical lab equipment for skill training and skill appraisal in technical schools, vocational education centers, and vocational qualification appraisal stations.
Technical parameter
Power supply: Three-phase 380V/AC/50Hz
Dimension:2040X1250X2330mm
Weight: approx. 200 KG
Product composition
No. | Name | Specs | QTY |
1 | Watt-hour meter | 3 phase, 5A, | 1 |
2 | Watt-hour meter | Single phase, 5A, | |
3 | Isolating switch | 3P，30A | 1 |
4 | Leakage type air switch | 3P+N | 1 |
5 | Air switch | 3P | 1 |
6 | Leakage type air switch | 1P+N | 1 |
7 | Power indicator | Yellow, green, red | 3 |
8 | Distribution box | 450mm×520mm×220mm | 1 |
9 | Fluorescent lamp | T5 | 1 |
10 | Energy saving light | 9W | 2 |
11 | Sodium lamp | 110W | 1 |
12 | Screw lamp socket | E27 | 2 |
13 | Voice switch | 86 type | 1 |
14 | 1 position socket | 118 type | 2 |
15 | 2-position socket | 118 type | 1 |
16 | 1 position switch | 118 type | 1 |
17 | 2-position switch | 86 type | 2 |
18 | 4-position switch | 86 type | 2 |
19 | Ceiling lamp | 21W | 1 |
20 | Touch switch | 86 type | 1 |
21 | Molded case switch | NM1-63S/3200 20A | 2 |
22 | Contactor | CJX2-0910/220V | 5 |
23 | Auxiliary contactor | F4-22 | 3 |
24 | PLC | H2U-1616MT | 1 |
25 | Inverter | MD330T1.5KW | 1 |
26 | Expansion module | H2U-0016ERN | 1 |
27 | Time relay | ST3PF-2 30S AC220V | 1 |
28 | Time relay | ST3P C-A 30S AC220V | 1 |
29 | Thermal relay | JRS1D-25 | 1 |
30 | Temperature controller | E5CZ-C2MT | 3 |
31 | Switching power supply | DC24V 2A | 1 |
32 | Touch screen | 1 | |
33 | Installation guide | C45 | 1 |
34 | Power indicator | AD58B-22D | 5 |
35 | Button switch | LA68B-EA35 | 10 |
36 | Emergency stop switch | LA68D-11ZS | 1 |
37 | Knob switch | 1 | |
38 | Control box | 500mm×700mm×230mm | 1 |
39 | Three phase AC asynchronous motor | (Y-△), with base | 1 |
40 | Three phase AC asynchronous motor | (Y-△), with base and Centrifugal switch | 1 |
41 | Three phase AC asynchronous motor (two speed 60W) | 2/4 two speed, with base | 1 |
42 | Other excited DC motor | DC110V/50w | 1 |
43 | Stepper motor | With driver and base | 1 |
44 | AC servo motor | With driver and base | 1 |
45 | Travel switch | 4 | |
46 | Capacitive sensor | 1 | |
47 | Inductive sensor | 1 | |
48 | Photoelectric sensor | 1 | |
49 | Temperature sensor | (thermal resistance, thermocouple) | 1 |
50 | PVC tube | ￠16 | 1 |
51 | PVC straight through | ￠16 | 1 |
52 | PVC wall sparse | ￠16 | 1 |
53 | Ties | 3*100mm | 1 |
54 | M4 * 20 screw with cap | 200pcs | 1 |
55 | Trunking | 3025 | 1 |
56 | Insulated conductor | BVR1.5mm2 | 1 |
57 | PVC trunking | 5025 | 1 |
58 | PVC trunking rack | 50*50 | 1 |
59 | Special type number tube | 1 | |
60 | Cold press fork | 1 | |
61 | Twining tape | 1 | |
62 | Needle nose plier | 125mm | 1 |
63 | Wire stripper | 1 | |
64 | Crimping plier | 1 | |
65 | Electrician plier | 200mm | 1 |
66 | Screwdriver | ￠4*100mm | 1 |
67 | Cross screwdriver | ￠4*100mm | 1 |
68 | Test pencil | 500v | 1 |
69 | Aluminum alloy herringbone ladder | 1.5m | 1 |
70 | Flat file | 200mm | 1 |
71 | Steel tape | 3m | 1 |
72 | Electric knife | 105mm | 1 |
73 | Steel ruler | 300mm | 1 |
74 | Adjustable wrench | 150mm | 1 |
75 | Hexagon wrench | 1 | |
76 | Fuse | 15A | 1 |
77 | Handsaw bow | 1 | |
78 | Hand saw blade | 1 | |
79 | Bender | 1 | |
80 | Megger | 500V | 1 |
81 | Angle grinder | ￠70 | 1 |
82 | Grinding wheel cutting machine | 200mm | 1 |
83 | Electric hand drill | 1 |
Training courses
1. Wiring training of watt hour meter
2. Installation training of distribution box
3. Installation training of control box
4. Installation training of fluorescent lamp
5. Installation training of incandescent lamp
6. Installation training of ceiling lamp
7. Installation news of energy saving lamp
8. Power distribution wiring training of distribution box
9. Wiring and debugging training of control circuit
10. Wiring and debugging training of PLC control circuit
11. PLC basic instruction programming (including the application of some special instructions) training
12. Training on basic parameter setting of frequency converter
13. Multi speed control training of frequency converter
14. Basic interface setting and application training of touch screen
15. Training on wiring and parameter setting of stepping motor and driver
16. Training on wiring and parameter setting of servo motor and driver
17. Training on wiring and parameter setting of thermocouple and temperature control device
18. Wiring and debugging training of various sensors
19. Use training of analog module
20. Use of common electrical tools
21. DC motor control and speed regulation training
22. Training on PVC pipe treatment and layout
23. Training on PVC pipe threading
24. Installation training of switch and socket
25. Installation training of junction box
26. Basic design of line distribution
27. Learning and training of construction specifications
28. Learning and training of safety construction requirements
29. Training on controlling one lamp in two places
30. Trunking wiring construction training
31. Construction training of concealed works
