Educational Equipment Comprehensive electronic training kit Vocational Training Equipment
GTET-KM4
Delivery:
EXW
minimum order:
10 pieces
Supply Ability:
30pieces / Month
Country of Origin:
Guangzhou,China
Stock Time:
45Day
Technical parameter
Dimension: About 500mm × 400mm × 260mm
Power supply: Single phase, AC 220V±10%, 50HZ
Weight: about 5kg
Dimension: About 500mm × 400mm × 260mm
Power supply: Single phase, AC 220V±10%, 50HZ
Weight: about 5kg
Quantity:
This educational equipment electronic training kit is integrated digital and analog circuit with function signal generator, digital voltmeter, 6-digit high-precision digital frequency meter, the educational equipment electrical lab equipment is really a good device for basic analog and digital circuit training.This electronic training kit can be used to learn the basic knowledge and other knowledge and skills of digital and analog circuit. The electrical lab equipment electronic training kit is also suitable for the teaching and skills training of related majors in higher vocational colleges and secondary vocational colleges. At the same time, electrical lab equipment can also be used as an educational equipment for skill training and skill appraisal in technical schools, vocational education centers, and vocational qualification appraisal stations.
Technical parameter
Dimension: About 500mm × 400mm × 260mm
Power supply: Single phase, AC 220V±10%, 50HZ
Weight: about 5kg
Product description

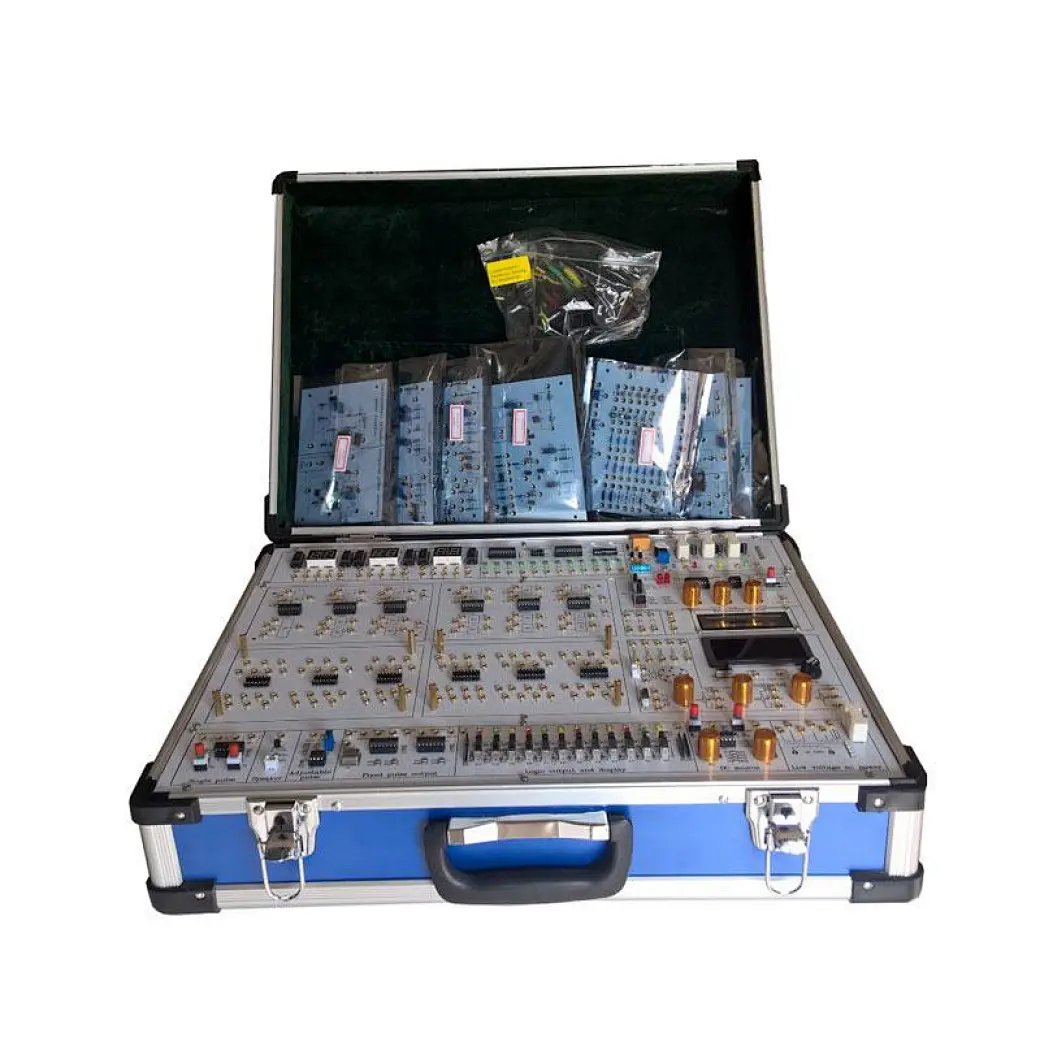

This training kit is integrated digital and analog circuit with function signal generator, digital voltmeter, 6-digit high-precision digital frequency meter, it is really a good device for basic analog and digital circuit training.
Product composition
No. | Name | Specs | QTY |
1 | DC source, two channels continuously adjustable | -0.5V ~ +0.5 V; -5V ~ +5 V | 1PCS |
2 | Function Generator , Output square wave, triangle wave, sine wave three waveforms | 10Hz-100Hz，100Hz-1KHz, 1KHz-10KHz 10KHz-100KHz | 1PCS |
3 | 2 single pulses | output both positive and negative pulses | 1PCS |
4 | 4 channels(T1, T2, T3, T4)and start and stop timing generator circuit | 1PCS | |
5 | 6-way fixed pulse output | 1Hz, 10Hz, 1kHz, 10kHz,100kHz, 1MHz | 1PCS |
6 | 8 digital inputs, 8 outputs display circuit | 1PCS | |
7 | 4 LED digital tube(BCD code display) | Hole-type dual in-line : 14 pins×10 pcs, 16 pins×3 pcs, 20 pins×1 pcs | 1SET |
8 | Onboard five adjustable potentiometer | 1K, 10K, 100K, 470K, 1M | 1PCS |
9 | Onboard fixed resistors, capacitors, diodes, regulator, speaker | 1PCS | |
10 | Six high-precision digital frequency meter, | measuring range: 0~9.9999 MHZ error<1Hz (designed by the CPLD chip) | 1PCS |
11 | On board DC voltmeter | 0~30V | 1PCS |
Training courses
Digital circuit:
1. Gate logic function circuit and testing
2. Decoder and data selector
3. Arithmetic circuit(half-adder, full adder and logic operation)
4. Trigger R-S, D, J-K
5. Counter circuit testing and research
6. One-shot and waveform generator
7. Integrated counter and register
8. 555 circuit
9. Three-state output flip-flops and latches
10. COMS gate circuit test
11. TS gate, OC gate functional test and application
12. Different series TTL chip performance and parameters test
13. Gate circuit drive capability test
14. Logical experiments and analysis
15. TTL and COMS interconnected experiment
16. MSI experiment
17. Competition and adventure experiment
18. Trigger application
19. Register application
20. Counter MSI chip applications
21. Timing circuit applications
22. Order pulse and pulse divider circuit
Analog circuit:
1. Single-stage amplifier circuit
2. Two-stage amplification circuit
3. Negative feedback amplifier circuit
4. Emitter follower
5. Differential amplifier circuit
6. Proportion sum operation circuit
7. Integral and differential circuit
8. Waveform generating circuit
9. Active filter
10. Voltage comparator
11. RC sinusoidal oscillator integrated circuit
12. Integrated power amplifier
13. Rectifier filter circuit and a shunt regulator
14. Series voltage regulator circuit
15. Integrated voltage regulator
16. RC sinusoidal oscillator
17. LC oscillator and frequency selective amplifier
18. Current/voltage conversion circuit
19. Voltage/frequency conversion circuit
20. Complementary symmetry power amplifier
21. Waveform conversion circuit
22. Yang effect tube experiment(new)
23. SCR experiment circuit(new)
