Digital and analog electronic training device

GTET-1025

Technical parameter
Power supply: Single phase 220V AC, 50Hz
Dimension: 1600x810x1340mm m
Weight: About 100kg

Delivery

EXW

minimum order

1 set

Supply Ability

30set / Month

Country of Origin

Guangzhou,China

Stock Time

45Day

Quantity

Contact Now

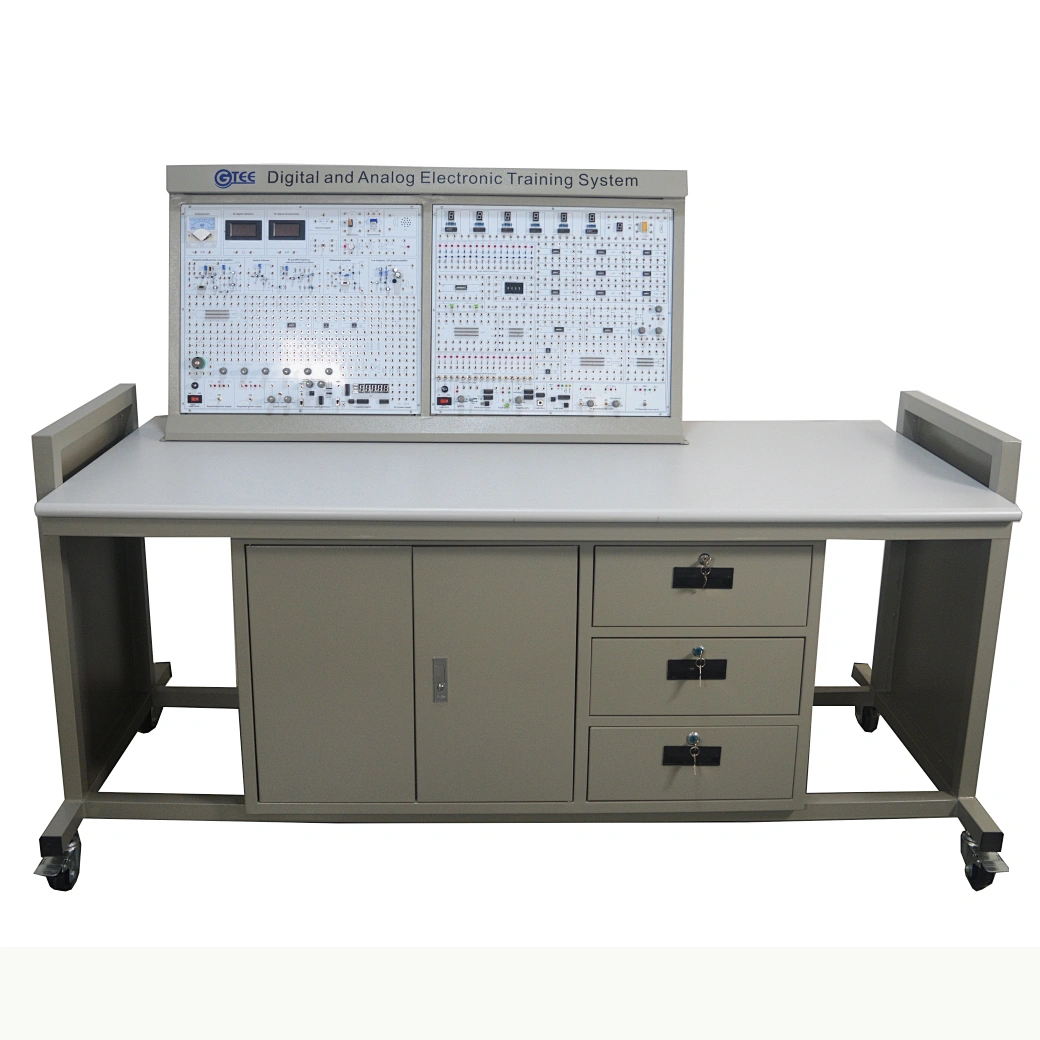

This educational equipment analog and digital electronic trainer electrical lab equipment contains analog and digital circuit module, which is suitable for the training of basic analog and digital circuit technology. This electrical lab equipment can be used to learn the basic knowledge, and skills of analog and digital electronic trainer. The educational equipment is also suitable for the teaching and skills training of related majors in higher vocational colleges and secondary vocational colleges. At the same time, the electrical lab equipment analog and digital electronic trainer educational equipment can also be used as an assessment device for skill training and skill appraisal in technical schools, vocational education centers, and vocational qualification appraisal stations.

Technical parameter

Power supply: Single phase 220V AC, 50Hz

Dimension: 1600x810x1340mm m

Weight: About 100kg

Product composition

No.	Name	Specs	QTY
1	Training bench		1
2	Analog circuit module		1
3	Digital circuit module		1
4	Power supply module	Single phase, AC220V, 50Hz	1
5	Storage cabinet		1 set

Training courses

Part 1: Analog circuit

Experiment 1 The use of common electronic instruments

Experiment 2 Simple test of diode

Experiment 3 Transistor common emitter single tube amplifier

Experiment 4 Negative feedback amplifier circuit experiment

Experiment 5 .Emitter follower

Experiment 6 Differential amplifier circuit

Experiment 7 FET amplifier

Experiment 8 Integrated Operational Amplifier Proportional Summation Circuit

Experiment 9 Integral and differential circuit

Experiment 10 .Voltage comparator

Experiment 11 .Waveform generating circuit

Experiment 12 Active filter

Experiment 13 Low frequency OTL power amplifier

Experiment 14 Integrated voltage regulator

Experiment 15 Series voltage regulator circuit

Part 2: Digital Circuit

Experiment 1 Gate circuit

Experiment 2 Study of three-state gate and OC gate

Experiment 4 Data selector

Experiment 5 Shift Register

Experiment 6 Conversion experiment

Experiment 7 Design and debugging of combinatorial logic circuit (1)

Experiment 8 Design and debugging of combinatorial logic circuit (2)

Experiment 9 Integrated trigger

Experiment 10 The design of counter (1)

Experiment 11 The design of counter (2)

Experiment 12 Design of multivibrator and monostable trigger

Experiment 13 D / A converter

Experiment 14 Oscillation, counting, decoding, display circuit
