Basic hydraulic training device

GTHT-0002

Delivery:

EXW

minimum order:

1 set

Supply Ability:

30set / Month

Country of Origin:

Guangzhou,China

Stock Time:

45Day

Technical parameter
Dimension: 1500mm × 650mm × 1750mm
Power supply: Single phase AC220V, 50Hz
Weight: about 200kg

Quantity:

Request a Quote

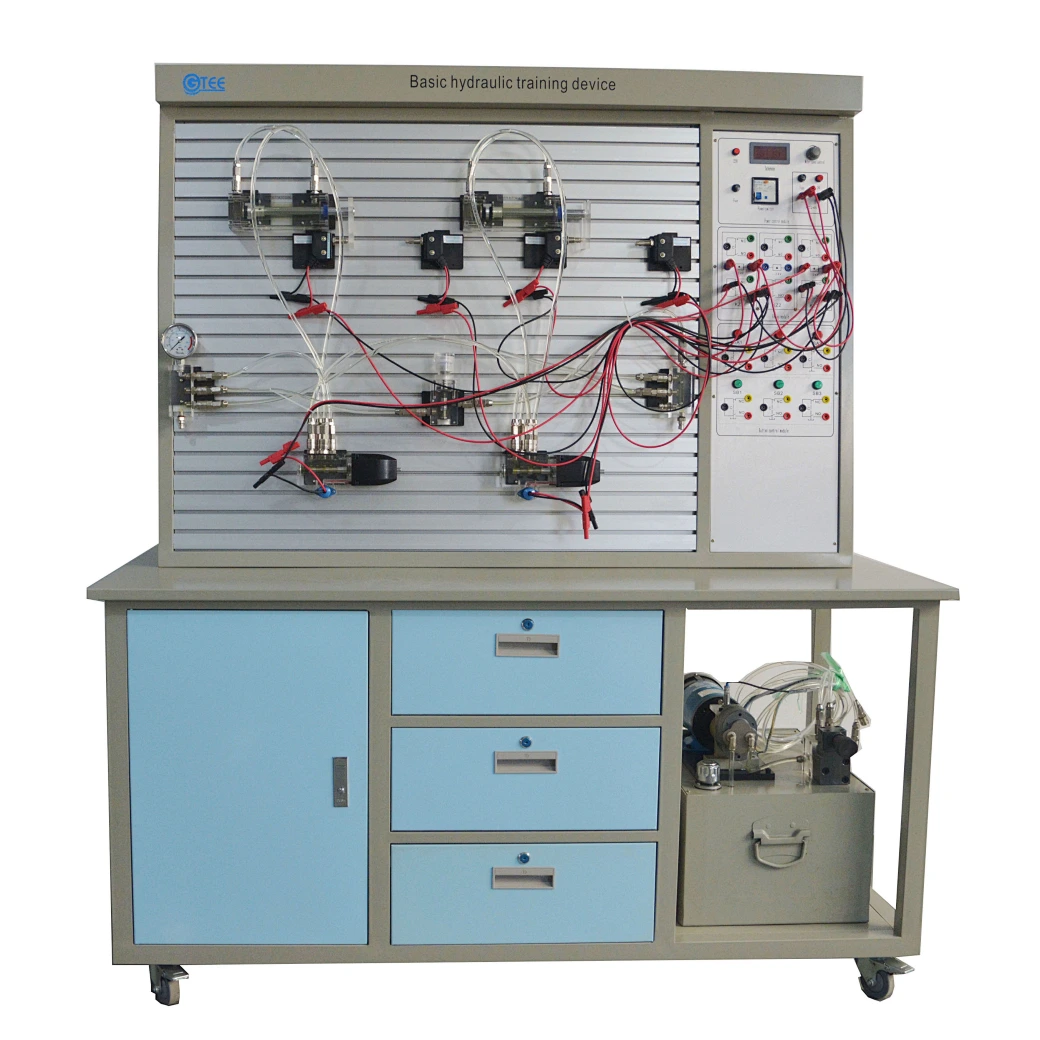

This basic hydraulic training device teaching equipment is designed and made based on the universal content about “Hydraulic transmission”, “Hydraulic control technology”. Students can get more accurate, in-depth understanding of the structure of hydraulic components, hydraulic control loop theory and design methods through operation on the basic training device. The basic training device teaching equipment hydraulic training device uses transparent hydraulic components for easy understanding of the work principle of the hydraulic system. The basic training device teaching equipment is suitable for the teaching needs of the theory and maintenance training of hydraulic training device system in vocational and technical schools, colleges and universities, training institutions.

Technical parameter

Dimension: 1500mm × 650mm × 1750mm

Power supply: Single phase AC220V, 50Hz

Weight: about 200kg

Product description

This device is designed and made based on the universal content about “Hydraulic transmission”, “Hydraulic control technology”. Students can get more accurate, in-depth understanding of the structure of hydraulic components, hydraulic control loop theory and design methods through operation. It uses transparent hydraulic components for easy understanding of the work principle of the hydraulic system.

Product composition

No.	Name	Specs	QTY
1	Experimental bench		1 pcs
2	Control panel		1 pcs
3	Drag motor and speed control circuit	400W, 1500rpm	1 set
4	Gear oil pump	10L/min, 0-1.6Mpa	1 pcs
5	Hydraulic oil tank		1 pcs
6	Auxiliary hydaulic oil tank		1 pcs
7	Cylinder stopper plate		2 pcs
8	Cylinder (with stroke collision block)		2 pcs
9	Spring return cylinder		1 pcs
10	Pressurized cylinder		1 pcs
11	Check Valves		2 pcs
12	Pilot Operated Check Valves		2 pcs
13	Overflow valve		2 pcs
14	The throttle valve		1 pcs
15	Speed control valve		2 pcs
16	Sequence valve		2 pcs
17	Pressure reducing valve		1 pcs
18	2/2 solenoid valve		1 pcs
19	4/2 solenoid valve		2 pcs
20	4/3 solenoid valve	O type	1 pcs
21	4/3 solenoid valve	H type	1 pcs
22	4/3 solenoid valve	M type	1 pcs
23	5/3 solenoid valve		1 pcs
24	Pressure relay		1 pcs
25	Limit switch(normally closed)	LX19-001	2 pcs
26	Limit switch(normally open)	LX19-001	2 pcs
27	Pressure gauge	0-1.0Mpa	3 pcs
28	Three way		2 pcs
29	Four way		2 pcs
30	Accessories		1 set
31	Tools		1 set

Training courses

1. The reversing loop by using reversing valve

2. The locking loop by using “O” functional reversing valve

3. The locking loop by using hydraulic controlled one-way valve

4. Pressure setting loop

5. Two stage pressure loop

6. Reducing loop by using reducing valve

7. Boost loop by using pressure cylinder

8. Unloading loop by using reversing valve

9. The oil inlet throttling speed regulating loop

10. The oil return throttling speed regulating loop

11. The variable pump speed regulating loop

12. Compound speed regulating loop with gear pump and speed regulating valve

13. Speed transition circuit with short connected flow valve

14. Two times feed loop in series of speed regulating valve

15. Two times loop parallel to the speed regulating valve

16. Sequent circuit by using sequence valve

17. Sequent circuit by using pressure relay

18. Sequent circuit by using electrical stroke switch

19. Sequent circuit by using motion valve
