PLC controlled pneumatic and hydraulic training device industrial training equipment
GTPHT-0001
Delivery:
EXW
minimum order:
1 set
Supply Ability:
30set / Month
Country of Origin:
Guangzhou,China
Stock Time:
45Day
Technical parameter
Dimension: 1500×800×1750mm
Power supply: Single phase AC220V, 50Hz
Weight: about 300kg
Dimension: 1500×800×1750mm
Power supply: Single phase AC220V, 50Hz
Weight: about 300kg
Quantity:

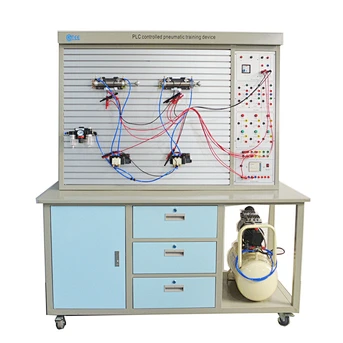

The pneumatic and hydraulic training equipment plc trainer industrial training equipment uses double-sided structure, is an experimental table provides places for doing pneumatic and hydraulic test experiment for two groups of four students. The educational training equipment plc trainer pneumatic and hydraulic training equipment can simultaneously do double-sided comprehensive PLC controlled pneumatic and hydraulic experiments, optimizing and sharing resources and improving products’ performance. The educational training equipment plc trainer pneumatic and hydraulic training equipment uses transparent hydraulic components for easy understanding of the work principle of the hydraulic system. The educational training equipment pneumatic and hydraulic training equipment plc trainer is suitable for the teaching needs of the theory and maintenance training of hydraulic and pneumatic system in vocational and technical schools, colleges and universities, training institutions.
Technical parameter
Dimension: 1500×800×1750mm
Power supply: Single phase AC220V, 50Hz
Weight: about 300kg
Product description
The experimental device uses double-sided structure, is an experimental table provides
places for doing pneumatic and hydraulic test experiment for two groups of four students. It can simultaneously do double-sided comprehensive PLC controlled pneumatic and hydraulic experiments, optimizing and sharing resources and improving products’ performance. It uses transparent hydraulic components for easy understanding of the work principle of the hydraulic system.
Product composition
Pneumatic:
No. | Name | Specs | QTY |
1 | Air compressor | 10L, 0.7Mpa | 1 pcs |
2 | Experimental bench | 1 pcs | |
3 | Components installation panel | Relay control unit, Signal input unit, | 1 set |
4 | PLC control units and accessories | MITSUBISHI FX1S-20MR | 1 set |
5 | Single-acting cylinder | MSAX25×100-CA | 1 pcs |
6 | Dual-acting cylinder | MAX25×100-CA | 2 pcs |
7 | Oil-water separator | AC2000 Triple pieces | 1 pcs |
8 | Reducing valve (with pressure gauge) | AR2000 | 1 pcs |
9 | 5/2 Handle shuttle valve | 4H210-08 | 1 pcs |
10 | 5/2 Single solenoid shuttle valve | 4V210-08(DC24V) | 2 pcs |
11 | 5/2 Double solenoid shuttle valve | 4V220-08(DC24V) | 1 pcs |
12 | 5/3 Double solenoid shuttle valve | 4V230-08(DC24V) | 1 pcs |
13 | 5/2 Single pneumatic control | 4A210-08 | 2 pcs |
14 | 5/2 Double pneumatic control | 4A220-08 | 2 pcs |
15 | 2/2 knob valve | MOV-02 | 1 pcs |
16 | 2/2 button valve | MOV-03A | 1 pcs |
17 | “OR” gate shuttle valve | ST-08 | 2 pcs |
18 | Quick exhaust valve | QV-08 | 2 pcs |
19 | One-way throttle valve | KLA-08 | 2 pcs |
20 | One-way throttle valve(install on the cylinder) | JSC601 | 7 pcs |
21 | One-way valve | ‘1/4 | 2 pcs |
22 | Sequence valve | Designed and made | 2 pcs |
23 | Air capacitor | Designed and made | 1 pcs |
24 | Six-way valve | Designed and made | 2 pcs |
25 | Magnetic switch | Designed and made | 4 pcs |
26 | Tools | 1 set | |
27 | Accessories | 1 set | |
28 | Three way | 2 pcs | |
29 | Four way | 2 pcs | |
30 | Accessories | 1 set | |
31 | Tools | 1 set |
Hydraulic
No. | Name | Specs | QTY |
1 | Experimental bench | 1 pcs | |
2 | PLC control units and accessories | MITSUBISHI FX1S-20MR | 1 set |
3 | Drag motor and speed controller | 400W, 1500rpm | 1 set |
4 | Gear oil pump | 10L/min, 0-1.6Mpa | 1 pcs |
5 | Hydraulic oil tank | 1 pcs | |
6 | Auxiliary hydraulic oil tank | 1 pcs | |
7 | Cylinder stopper plate | 2 pcs | |
8 | Cylinder (with stroke collision block) | 2 pcs | |
9 | Spring return cylinder | 1 pcs | |
10 | Pressurized cylinder | 1 pcs | |
11 | Check Valves | 2 pcs | |
12 | Pilot Operated Check Valves | 2 pcs | |
13 | Overflow valve | 2 pcs | |
14 | The throttle valve | 1 pcs | |
15 | Speed control valve | 2 pcs | |
16 | Sequence valve | 2 pcs | |
17 | Pressure reducing valve | 1 pcs | |
18 | 2/2 solenoid valve | 1 pcs | |
19 | 4/2 solenoid valve | 2 pcs | |
20 | 4/3 solenoid valve | 1 pcs | |
21 | 4/3-way solenoid valve | 1 pcs | |
22 | 4/3 solenoid valve | 1 pcs | |
23 | 5/3 solenoid valve | 1 pcs | |
24 | Pressure relay | 1 pcs | |
25 | Limit switch (normally closed) | 2 pcs | |
26 | Limit switch (normally open) | 2 pcs | |
27 | Pressure gauge | 3 pcs | |
28 | Three way | 2 pcs | |
29 | Four way | 2 pcs | |
30 | Tools | 1 set | |
31 | Accessories | 1 set |
Training courses
Pneumatic:
1. The reversing loop of single acting cylinder
2. The reversing loop of double acting cylinder
3. Single acting cylinder speed control loop
4. Single phase speed control loop of double acting cylinder
5. Double acting cylinder speed control loop
6. Speed switching loop
7. Buffer loop
7. Secondary pressure control loop
8. Counting loop
9. Delay loop
10. Interlocking loop
11. Single cylinder and single reciprocating control loop
12. Single cylinder continuous reciprocating action loop
13. Sequential action loop of a straight cylinder and a rotating cylinder
14. Multi cylinder sequential working loop
15. Double cylinder synchronous action loop
16. Four cylinder linkage loop
17. Unloading loop
18. The application loop of the “OR” gate shuttle valve
19. The application loop of the fast exhaust valve
20. High and low voltage switch over control loop
21. Overloading protection loop
Hydraulic:
1. The reversing loop by using reversing valve
2. The locking loop by using “O” functional reversing valve
3. The locking loop by using hydraulic controlled one-way valve
4. Pressure setting loop
5. Two stage pressure loop
6. Reducing loop by using reducing valve
7. Boost loop by using pressure cylinder
8. Unloading loop by using reversing valve
9. The oil inlet throttling speed regulating loop
10. The oil return throttling speed regulating loop
11. The variable pump speed regulating loop
12. Compound speed regulating loop with gear pump and speed regulating valve
13. Speed transition circuit with short connected flow valve
14. Two times feed loop in series of speed regulating valve
15. Two times loop parallel to the speed regulating valve
16. Sequent circuit by using sequence valve
17. Sequent circuit by using pressure relay
18. Sequent circuit by using electrical stroke switch
19. Sequent circuit by using motion valve
