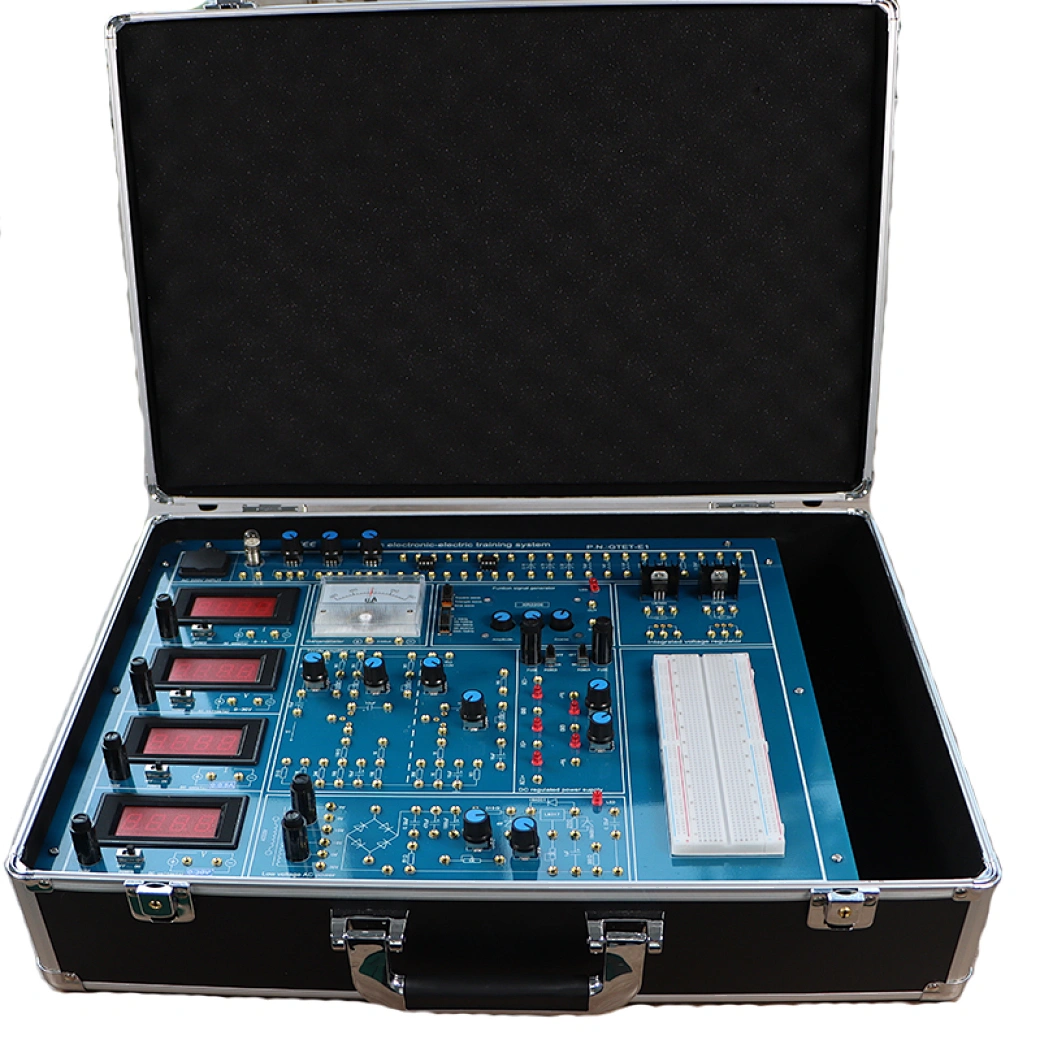

This basic electronic training kit electrical training equipment is a comprehensive electronic design platform for electronic system design and teaching. The electrical training equipment can carry out multi type experiment and the teaching equipment basic electronic training kit is suitable for electronic technology research and development in the vocational and technical school and universities.The teaching equipment is also suitable for the teaching and skills training of related majors in higher vocational colleges and secondary vocational colleges. At the same time, the electrical training equipment basic electronic training kit can also be used as an teaching equipment for skill training and skill appraisal in technical schools, vocational education centers, and vocational qualification appraisal stations.

Technical parameter
Dimension: About 500mm × 380mm × 160mm
Working power: Single phase, AC 220V±10%, 50Hz
Weight: About 5kg

Product composition
No.
Name
Specs
QTY
1
Fixed DC power supply
+5V, +12 and -12V
1PCS
2
Dual variable DC Power Supply
+1.25~+30V; -30~-1.25V
1PCS
3
AC Power Supply
9V, 15V, 18V & 30VAC
1PCS
4
AC Voltmeter,
0-30VAC
1PCS
5
DC Voltmeter,
0-30VDC
1PCS
6
AC Ammeters
0-1 Amp. AC
1PCS
7
DC Ammeters
0-500m A. DC
1SET
8
Galvanometer
1PCS
9
Function Generator
Sine, Square, Triangular Wave Frequency all adjustable. 0.5Hz to 500Khz six ranges
1PCS
10
Resistance bank
1PCS
11
Capacitance bank
1PCS
12
Inductance bank
1PCS
13
Bread board
1PCS

Training courses
1. Single-stage amplifier
2. Emitter follower
3. Proportional sum operation circuit
4. Integral and differential circuit
5. Waveform generation circuit
6. Voltage comparator
7. Linear regulator circuit
8. Adjustable voltage regulator circuit
9. Waveform conversion circuit
