Technical parameter
1.Test stand: 930 x 860 x 1850 mm approx.
2. Brake unit: 980 x 850 x 1100 mm approx.
3.Measuring ranges:
-Ambient temperature:0-100°C
- Fuel temperature:0-100°C
- Air consumption:30-333L/min
- Fuel consumption:0-50cm3/min
4.Power supply:three-phase 380V/AC, single-phase 220V/AC;
minimum order
1 set
Supply Ability
30set / Month
Country of Origin
Stock Time
Contact Now

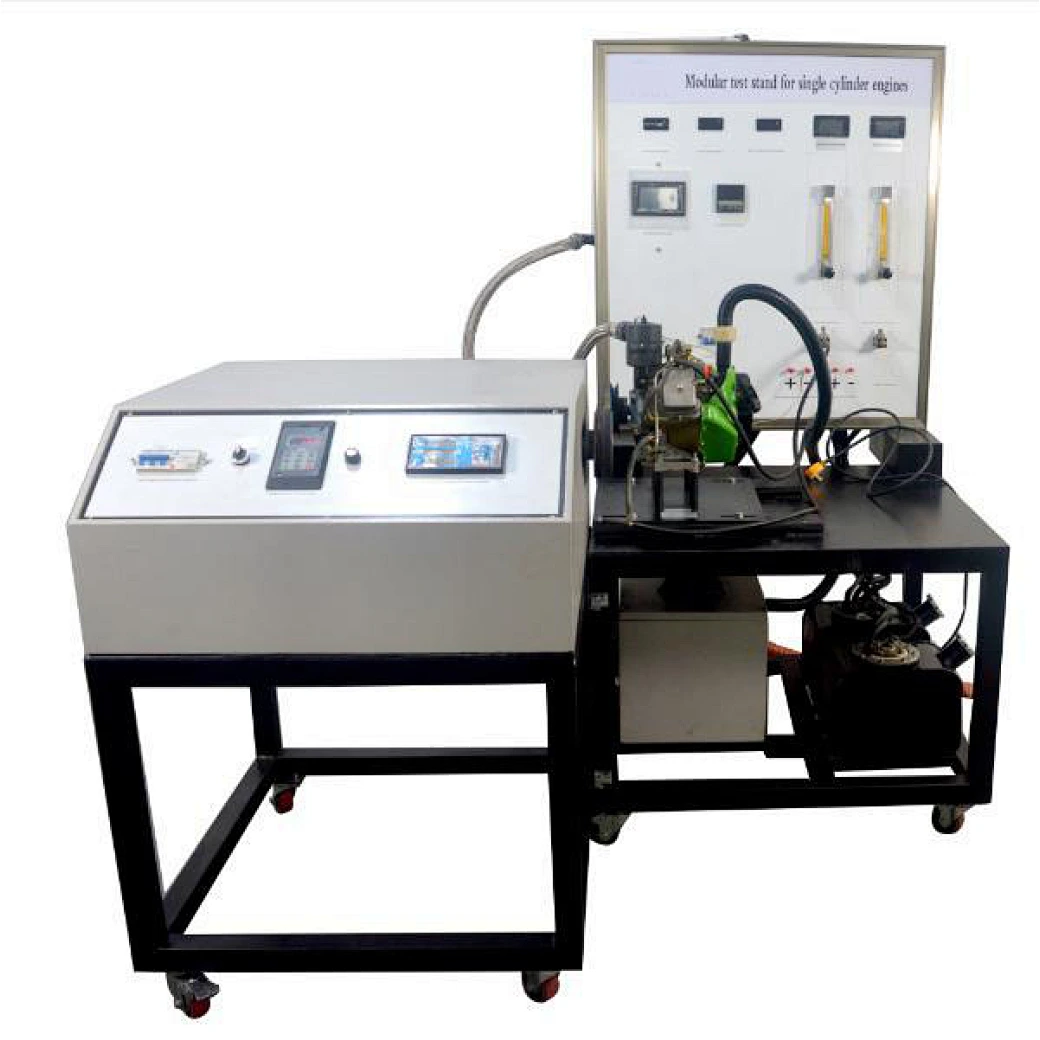

This engine test bench can be used to learn the basic knowledgeand skills of engine test bench. The engine test stand engine dynamometer is also suitable for the teaching and skills training of related majors of engine dynamometer in higher vocational colleges and secondary vocational colleges. Meanwhile, educational equipment the engine test bench engine dynamometer can also be used as an engine test stand for skill training and skill appraisal in technical schools, vocational education centers, and vocational qualification appraisal stations.

Technical parameter

1.Application of equipment
The equipment is used to study working processes of gasoline engines (with loading device) within laboratory works carried out at project universities
Equipment shall cover at least the following laboratory works
▪ Study of the engine and loading device build
▪ Engine test methods
▪ Determination of engine idle specifications
▪ Determination of engine speed specifications
▪ Determination of engine load specifications
▪ Determination of engine control specifications
▪ Temperature determination of engine parts
▪ Temperature determination of lube oil
▪ Temperature determination of incoming charge and exhaust gases
▪ Determination of the exhaust system elements' hydraulic resistance
▪ Determination of engine exhaust gases toxicity
▪ Rules and procedures for the maintenance of engines
2.Technical specifications
Equipment type
▪ floor-standing
▪ automated
▪ with electronic loading device
▪ with connection to laptop for plotting and analyzing engine specifications
Equipment shall include the following main parts
▪ steel or metal frame (powder coated, on wheels) with vibrating plate
▪ gasoline engine with fuel tank and attachments
▪ loading device
▪ control unit
▪ rechargeable battery
▪ intake manifold vacuum sensor
▪ exhaust manifold gas pressure sensor
▪ lube oil temperature sensor
▪ exhaust gas temperature sensor
▪ incoming charge temperature sensor
▪ intake system mass air flow sensor
▪ cylinder barret temperature sensor
▪ intake system mass air flow sensor
▪ crankshaft speed sensor
▪ engine torque sensor
▪ loading device oil temperature sensor
▪ load unit air temperature sensor
▪ oil pressure sensor
▪ possibility to connect the equipment to laptop
▪ availability of laptop or personal computer
▪ availability of special software
Gasoline engine
▪ single cylinder
▪ 4 stroke
▪ with fuel tank and attachments
Weight   at least 120 kg
Overall dimensions     at least 1200 x 500 x 800 mm
Power    at least 200 W
Power supply
▪ 220V ± 10%, 50Hz, if necessary, complete with adapter
▪ power cable, European standard
Special software
▪ availability
▪ for laptop
▪ for plotting and analyzing engine specifications
▪ interface in English
3.Delivery set
▪ Equipment shall be delivered as a complete set and shall be compatible with design and functionality.
▪ Delivery set shall include, but not be limited to:
1. Working Processes of Gasoline Engines (with Loading Device) Laboratory Equipment* – 1 set
3. Special software – 1 set
4. Description of possible laboratory works with Working Processes of Gasoline Engines (with Loading Device) Laboratory Equipment (in English) – 1 set
5. Tools for installation and maintenance of the laboratory equipment – 1 set
6. Accessories, spare parts and consumables not listed above, but recommended by the Manufacturer – 1 set
