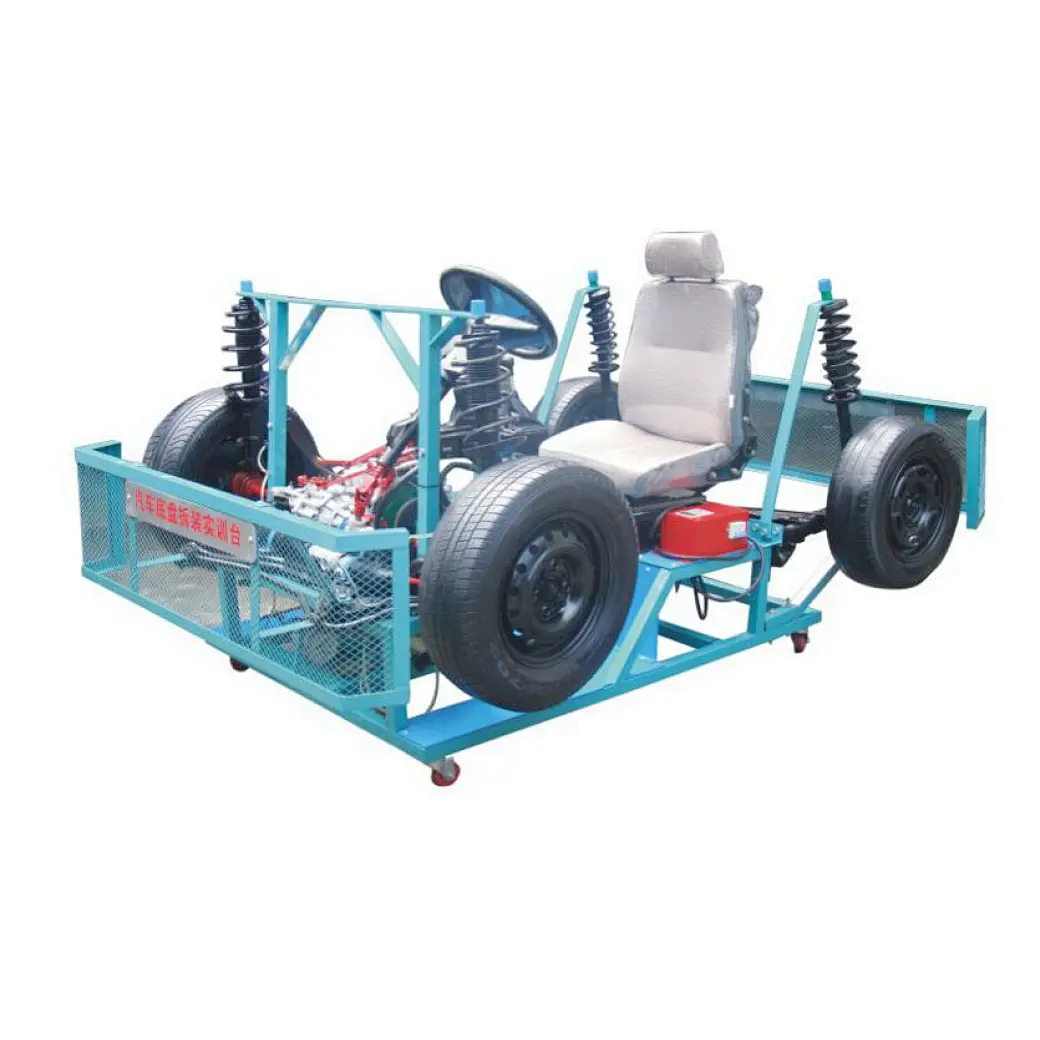

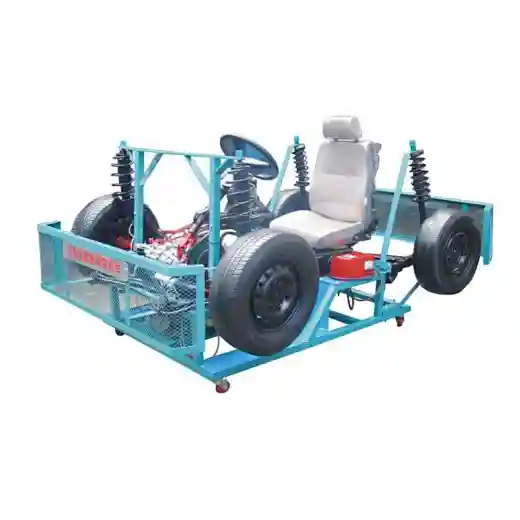

Automotive training equipment vehicle chassis system cutaway trainer(Front wheel drive)

GTAT-2014

Delivery:

EXW

minimum order:

1 set

Supply Ability:

30set / Month

Country of Origin:

Guangzhou,China

Stock Time:

45Day

Technical parameter
1. Dimensions: 2200x1600x1100mm(L x W x H）
2. Power supply: AC220V, 50Hz
3. Car model: Volkswagen Jetta car (front wheel drive)

Quantity:

Request a Quote

The cutaway model automotive car chassis system teaching model educational training equipment fully shows the layout inner and outer structure of vehicle system with full parts.This educational training equipment dissection teaching model is based on the original automotive car chassis system components, and is arranged according to the location layout of the original vehicle. The teaching model educational training equipment is suitable for the teaching needs of the theory and maintenance training of automotive car chassis system in vocational and technical schools, colleges and universities, training institutions.

Technical parameter

1. Dimensions: 2200x1600x1100mm(L x W x H）

2. Power supply: AC220V, 50Hz

3. Car model: Volkswagen Jetta car (front wheel drive)

Product description

The trainer fully demonstrated the internal structure of the front wheel drive vehicle chassis, transmission system, steering system, braking system, and driving system through dissection. It can clearly observe the connection relationships of various systems and demonstrate the working process of the front drive powertrain system.

Product composition

Front wheel drive chassis	1SET
Transmission& clutch	1SET
Brake system& suspension system	1SET
Seat, tires	1SET
Drive motor	1SET
Front and rear axle, differential	1SET
Power steering system	1SET
Mobile stand	1PCS

Training courses

1. Function introduction of the main components of the front wheel drive vehicle chassis system

2. Introduction of the front wheel drive vehicles chassis structure;

3. Demonstration of the power transmission process of front wheel drive vehicles;

4. Disassembly and assembly of tires

5. Disassembly and assembly of shock absorber
