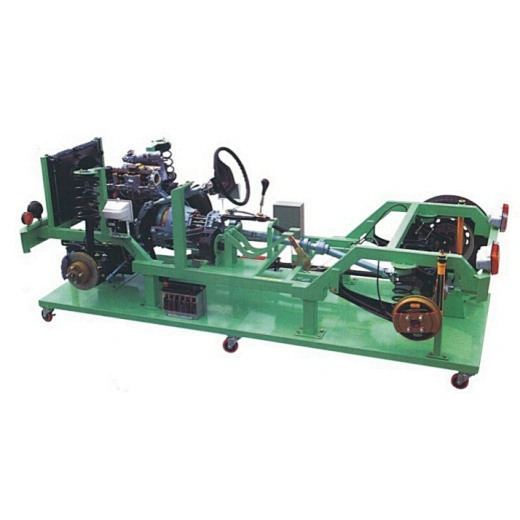

The vehicle chassis system cutaway model educational equipment fully shows the layout inner and outer structure of vehicle system with full parts.This automotive training equipment educational equipment is based on the original vehicle chassis system components, and the automotive training equipment is arranged according to the location layout of the original vehicle. The automotive training equipment educational equipment is suitable for the teaching needs of the theory and maintenance training of vehicle chassis system in vocational and technical schools, colleges and universities, training institutions.
Technical parameter
1. Dimensions: about 2200x1600x1100mm
2. Power: AC220V, 50Hz
3. Car model: Toyota Hiace (rear wheel drive)

Product description
The trainer fully demonstrated the internal structure of the rear wheel drive vehicle chassis, transmission system, steering system, braking system, and driving system through dissection. It can clearly observe the connection relationships of various systems and demonstrate the working process of the front drive powertrain system.

Product composition
Rear wheel drive chassis
1SET
Engine, transmission, clutch
1SET
Brake system, suspension system
1SET
Seat, tires
1SET
Drive motor
1SET
Front and rear axle, differential
1SET
Power steering system
1SET
Lighting system
1SET
Mobile stand
1PCS

Training courses
1.  Function introduction of the main components of the rear wheel drive vehicle chassis system
2. Introduction of the rear wheel drive vehicles chassis structure;
3. Demonstration of the power transmission process of rear wheel drive vehicles;
4.  Disassembly and assembly of tires
5.  Disassembly and assembly of shock absorber
