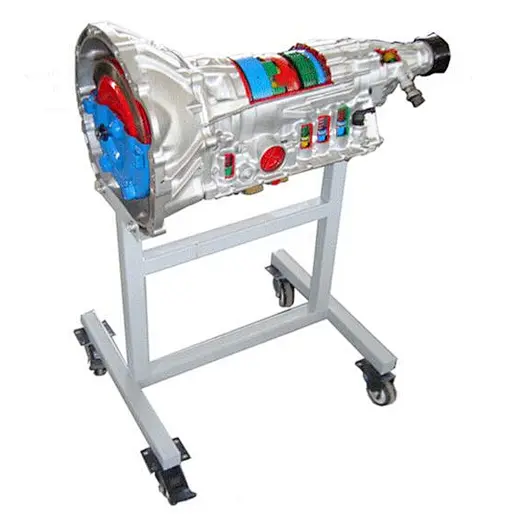

The dissection models transmission training equipment displays the basic principles and internal structures of rear wheel drive transmission. This teaching equipment dissection models transmission training equipment is based on the original rear wheel drive transmission system components, and is arranged according to the location layout of the original vehicle. The dissection models transmission training equipment is suitable for the teaching needs of the theory and maintenance training of transmission system in vocational and technical schools, colleges and universities, training institutions.

Technical parameter
1. Dimensions: 800x600x800mm（L x W x H）
2. Manual operation
3. Drive mode: rear wheel drive

Product description
This cutaway model can show the internal structure of the rear-wheel drive transmission, the shifting principle of the rear drive transmission.

Product composition
Transmission assembly cutaway
1PCS
Hand wheel
1PCS
Mobile stand
1PCS
Training courses
1. Function introduction of main components of the rear wheel drive transmission;
2. Demonstration of the work principle and process of the rear wheel drive transmission;
3. Working principle of the rear drive transmission mechanism.

Suitable car models listed below
P.N.
Car model
GTAT-2003A-001
Wuling(MT)
