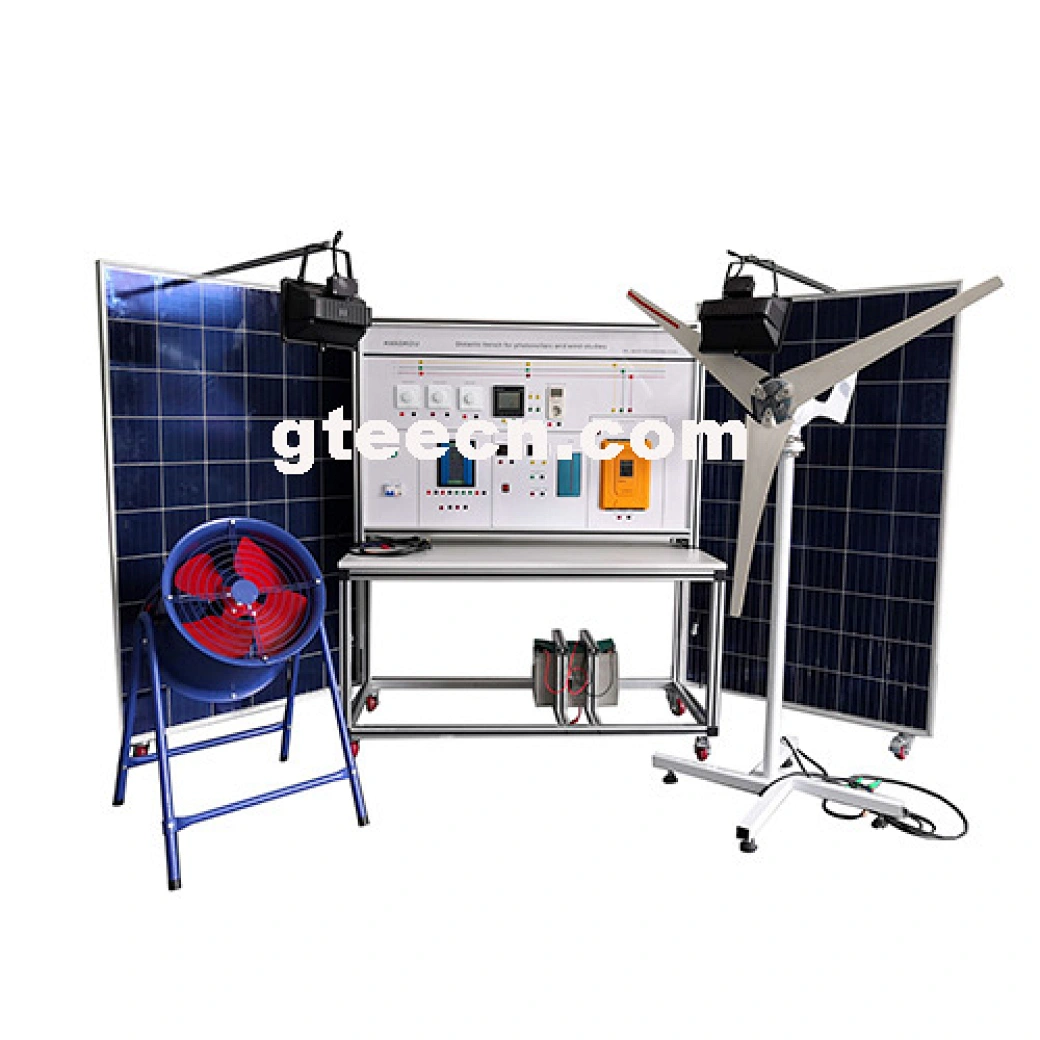

Didactic bench for photovoltaic and wind energy trainer studies
30set / Month
Country of Origin
Order No.: 015-GT2005-ZGP026-065-008
Synoptic diagram of the mobile educational bench with 4 wheels.
N.B: The bench content:
* Lot of secure connection sheets to carry out the experiments without difficulty
* Lot of measurement cables of different lengths.
* CD of interactive lessons on the work to be done on the bench
* Manual (s) of practical work.
* Supplied with cords, and connection by security sockets and all accessories necessary for connection and security and data acquisition.
* All the equipment making up the bench must comply with the safety standards in force.
* Realization of diagram and wiring for energy restitution on the network
* Study and recording of the electrical characteristics of the wind turbine and solar panels
2 photovoltaic modules with connection accessories.
DC / AC conversion with an inverter; Hybrid inverter:
1 solar battery
Solar charge controller, Artificial solar source or sun emulator
1 inverter 220V
Unit of measurement, of the energies produced and consumed with recovery of the readings taken
Wind power station in the form of a bench or on a mac
Supplied with necessary fixing accessories
Power: 300 W
Wind emulator with wind speed adjustment
Ammeter - Voltmeter - Wattmeter and power factor
(Note: The quoted software is designed by us, it will not be exactly the same as your software.)
