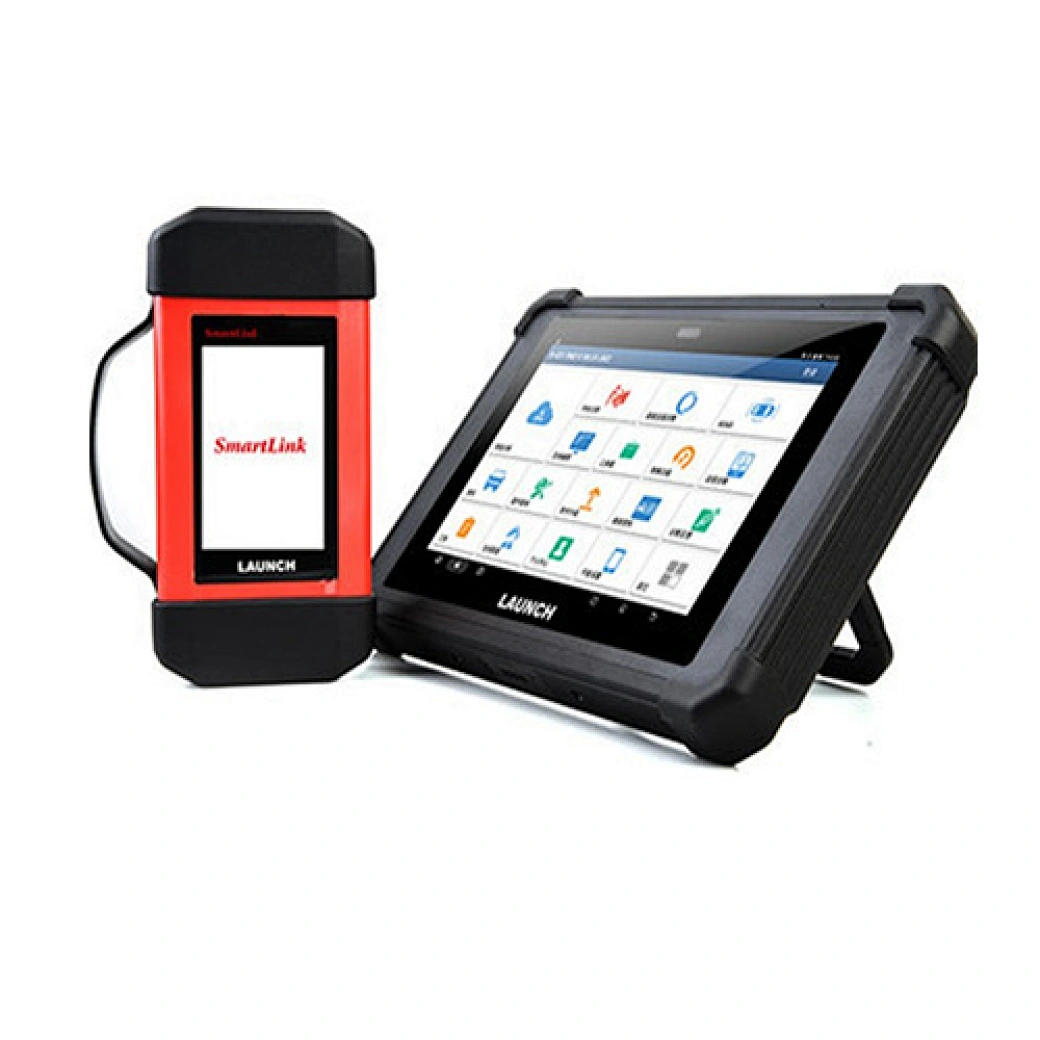

Automotive repair tools Electric vehicle diagnostic instrument

1. Innovative dual diagnosis mode, which supports both local diagnosis and Smart Link remote diagnosis

2. It is equipped with a new Smart Link C Remote Diagnosis box, which supports passenger business integrated vehicle diagnosis, ECU writing, CAN2.0/CAN FD/DOIP and other mainstream diagnosis protocols and J2534/D-PDU/RP1210 diagnosis

3. Communication standard: 5g Wi Fi communication is adopted between the host and the diagnosis box, which is much better than the traditional Bluetooth connection in terms of transmission rate, diagnosis distance, anti-interference, etc.

4. Support most common physical interfaces, such as USB type C, USB type A, micro SIM slot interface, etc.

5. Support intelligent diagnosis, remote diagnosis, online programming and intelligent maintenance ecological service system

6. Qualcomm 8-core processor, 10.1-inch touch screen display

7. Support all electronic control systems of 12V new energy vehicles, diagnose the electronic control system faults of most new energy vehicles in Europe, the United States, Asia and China, and realize the vehicle fault diagnosis of the whole vehicle type and the whole system

Technical parameters：

CPU: Qualcomm 2.0GHz eight core

Operating system: Android 7.1

Memory: 4G

Storage: 64G, supporting 128G expansion

Display screen: 10.1 inch, full fit, sun readable screen

Resolution: 1920x1200

Camera: front 8million pixels, rear 13million pixels

Cellular network: td-lte/fdd-lte/td-scdma/cdma (cdma2000/cdma1x) /wcdma/ gsm (GPRS)

WIFI: 2.4g/5ghz dual band x2

Interface: USB type cx1/usb type ax1/micro SIM slot (LTE version)

Sensor: G-sensor, light sensor 320x211x46 (mm)

Size: 320 × 21 1x46(mm)

Operating temperature: 0~50 ℃
