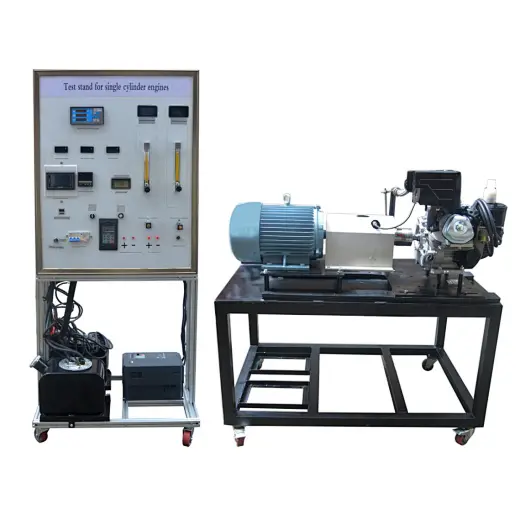

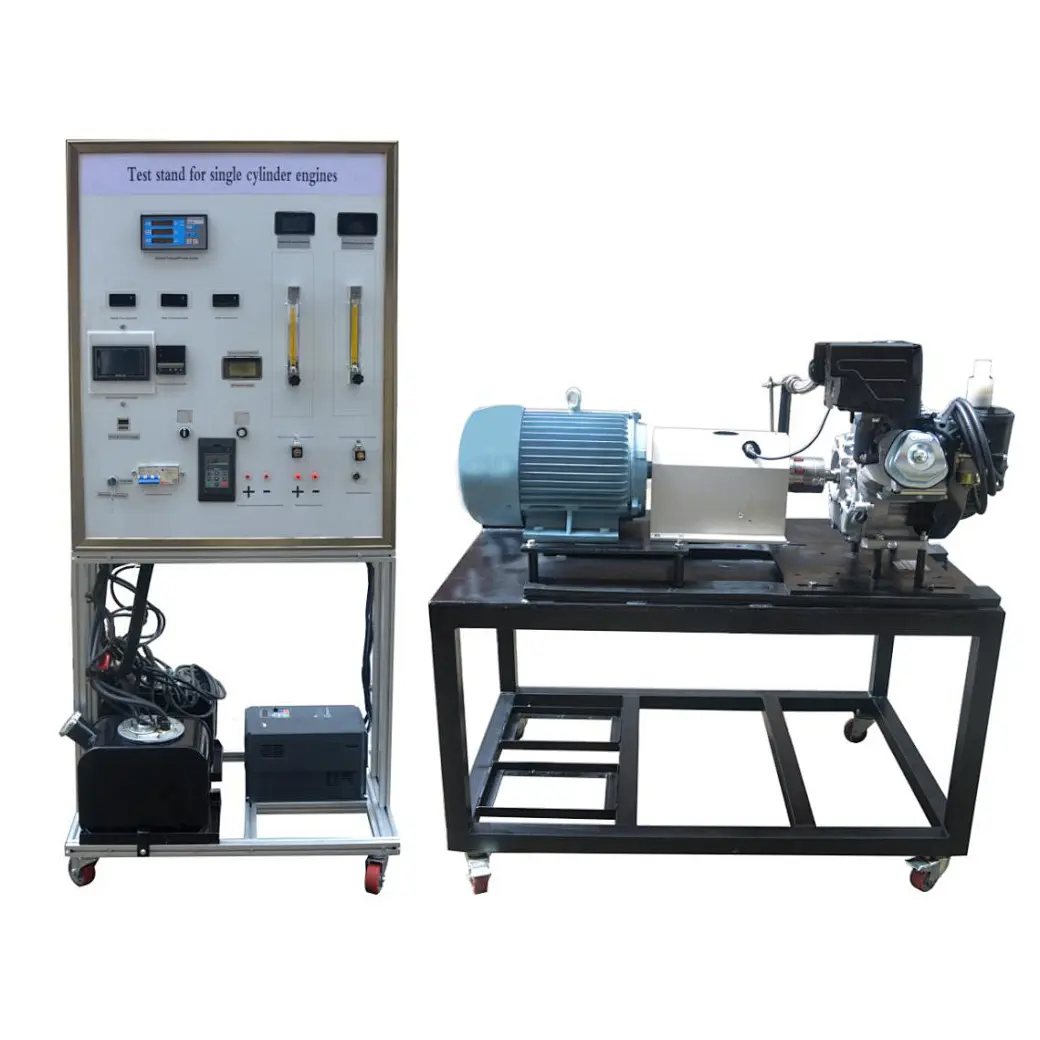

Engine test stand for single cylinder engines, 7.5kW
GTAT-T005
Delivery:
EXW
minimum order:
1 set
Supply Ability:
30set / Month
Country of Origin:
Guangzhou,China
Stock Time:
45Day
Technical parameter
1.Dimension:
Control stand: 1000 x 600 x1800mm.
Test bench: 1300 x 900 x1300mm.
2.Power supply：three-phase AC 380V, single-phase AC 220V;
3.Asynchronous motor as brake unit:- Power output: approx. 7.5kW
4.Measuring ranges
- Torque: 0-50Nm
- Temperatures: 0-900°C
- Speed: 0-5000rpm
- Fuel consumption: 50cm³/min
- Air consumption: 0-690L/h
1.Dimension:
Control stand: 1000 x 600 x1800mm.
Test bench: 1300 x 900 x1300mm.
2.Power supply：three-phase AC 380V, single-phase AC 220V;
3.Asynchronous motor as brake unit:- Power output: approx. 7.5kW
4.Measuring ranges
- Torque: 0-50Nm
- Temperatures: 0-900°C
- Speed: 0-5000rpm
- Fuel consumption: 50cm³/min
- Air consumption: 0-690L/h
Quantity:
This single cylinder engine test bench can be used to learn the basic knowledgeand other knowledge and skills of engine test stand. The single cylinder engine test bench engine test stand is also suitable for the teaching and skills training of related majors in higher vocational colleges and secondary vocational colleges. At the same time, the single cylinder engine test bench engine test stand can also be used as an assessment device for skill training and skill appraisal in technical schools, vocational education centers, and vocational qualification appraisal stations.
Main features
1.Three-phase asynchronous motor acting as a braking unit to generate motor load;
2. Can test engine module GTAT-T012;
3.Power transmission from test engine to brake unit by elastic coupling;
4.Quietening vessel for intake air;
5.Can measure and display torque, intake air temperature, intake air volume, engine speed, fuel level, and exhaust gas temperature.
6.Test engine operation and display data.
7.Data measured and displayed for the engine tested: Exhaust gas temperature and cooling water temperatures
Technical parameter
1.Dimension:
Control stand: 1000 x 600 x1800mm.
Test bench: 1300 x 900 x1300mm.
2.Power supply：three-phase AC 380V, single-phase AC 220V;
3.Asynchronous motor as brake unit:- Power output: approx. 7.5kW
4.Measuring ranges
- Torque: 0-50Nm
- Temperatures: 0-900°C
- Speed: 0-5000rpm
- Fuel consumption: 50cm³/min
- Air consumption: 0-690L/h
Product composition
Control stand | 1pcs |
Test stand | 1pcs |
The device can be additionally equipped with a data acquisition module and software GTAT-ETS01
