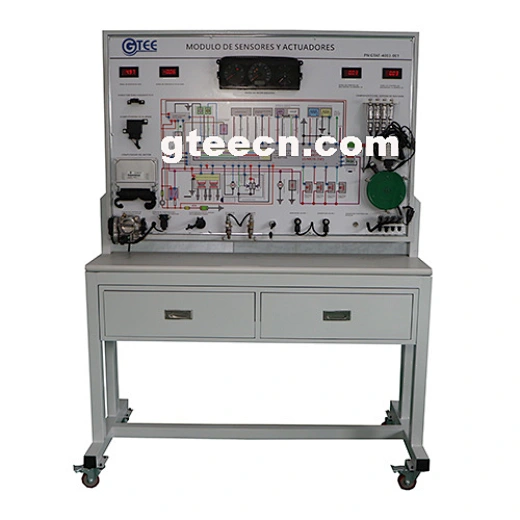

Automotive Sensors and actuators training module Engine control system trainer

GTSS3-0020

Delivery:

EXW

minimum order:

1 set

Supply Ability:

30set / Month

Country of Origin:

Guangzhou, China

Stock Time:

45Day

Quantity:

Request a Quote

Order No.: GT2022010501

Car model: Jetta 1.6L

Technical parameter

1. Dimensions: 1260x850x1860mm

2. Power supply: AC220V, 60Hz

Product description

The trainer is designed to demonstrate the structure and working process of the engine electronic control system.

Product composition

Engine ECU	1PCS
Ignition system/ Fuel injection system	1PCS
Fault set module	1PCS
Dashboard	1PCS
Mobile stand with test panel	1PCS

Main features

1. Voltage, resistance, frequency, etc. of the sensors, actuator can be measured.

2. Diagnostic seat installed on the panel can be connected to the auto decoder, it can read the fault codes, clear fault code and read data stream.

3. Fault setting module: manual fault set module.

Training courses

1. Function introduction of main components of engine control system;

2. Demonstration of the work principle and process of engine control system;

3. Measurement of the signals of the sensors and actuators by multimeter or oscilloscope;

4. Fault set and troubleshooting
