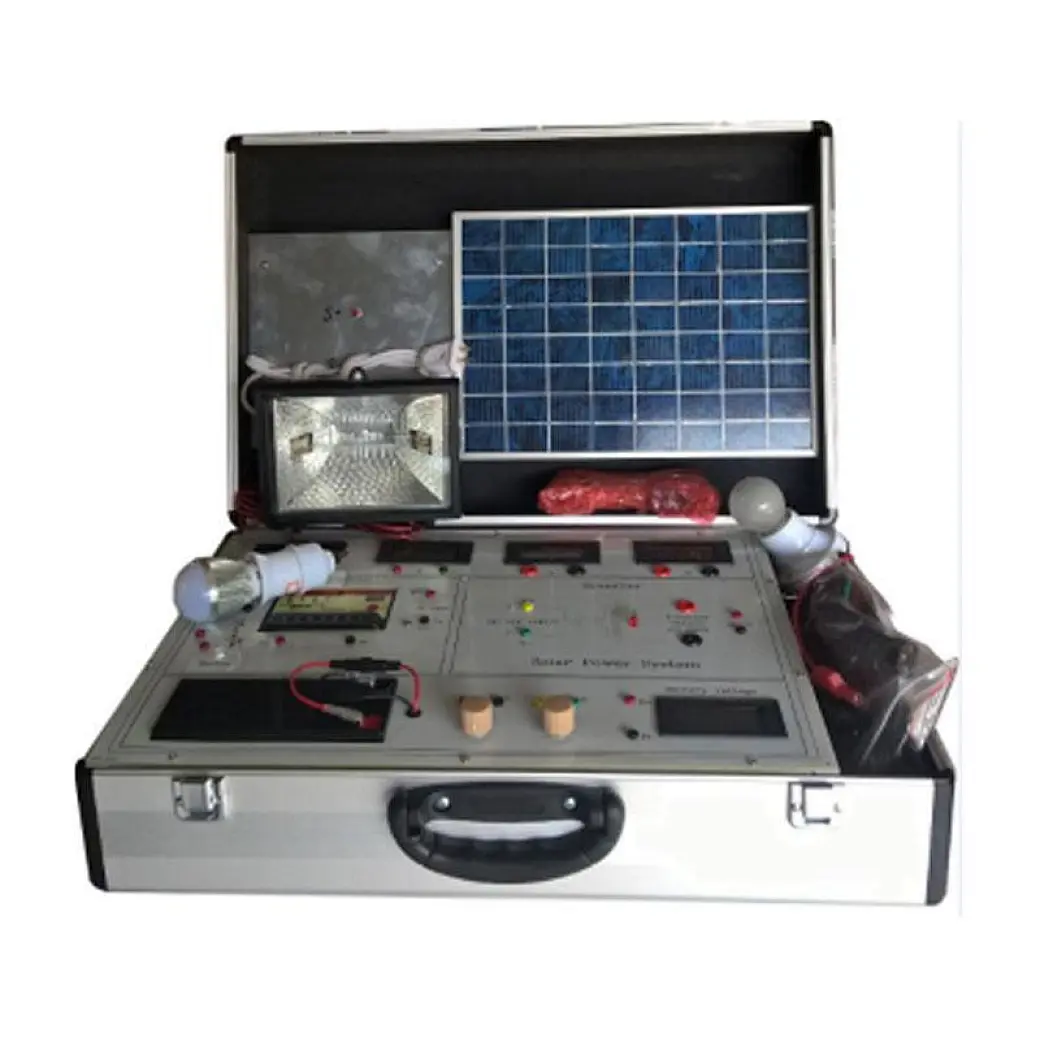

Solar teaching experiment kit
GTNT-008
Technical parameter
1. Dimension: About 500mm × 380mm × 160mm
2. Working environment: 0 °C ~ 40 °C, ≤ 85% RH
● Temperature protection: ≥ 65 °C
● Conversion efficiency:> 90%
● Protection: overload, over voltage, short circuit, low voltage, high temperature, reverse polarity
7. Weight: About 5kg
1. Dimension: About 500mm × 380mm × 160mm
2. Working environment: 0 °C ~ 40 °C, ≤ 85% RH
● Temperature protection: ≥ 65 °C
● Conversion efficiency:> 90%
● Protection: overload, over voltage, short circuit, low voltage, high temperature, reverse polarity
7. Weight: About 5kg
Delivery
EXW
minimum order
1 set
Supply Ability
30set / Month
Country of Origin
Guangzhou,China
Stock Time
45Day
Quantity
This educational training equipment solar energy training equipment can be used to learn the basic knowledge and other knowledge and skills of solar energy system. The solar energy training equipment experiment kit educational training equipment is also suitable for the teaching and skills training of related majors in higher vocational colleges and secondary vocational colleges. Meanwhile, the solar energy training equipment can also be used as an experiment kit for skill training and skill appraisal in technical schools, vocational education centers, and vocational qualification appraisal stations.
1. To help students understand the principles of solar photovoltaic and learn the engineering application of solar photovoltaic.
2. This educational training equipment solar energy training equipment system is a solar photovoltaic power system that can provide a practical teaching, testing and demonstration platform for solar cells, sine wave inverter and controller.
3. The workflow of the educational training equipment experiment kit will be:
● The solar energy is converted to low voltage 12VDC by solar cell module on the experiment kit
● Then charge the battery through the controller
● Then convert 12VDC into 220VAC for all the load by sine wave inverter
Technical parameter
1. Dimension: About 500mm × 380mm × 160mm
2. Working environment: 0 °C ~ 40 °C, ≤ 85% RH
● Temperature protection: ≥ 65 °C
● Conversion efficiency:>90%
● Protection: overload, over voltage, short circuit, low voltage, high temperature, reverse polarity
7. Weight: About 5kg
Product composition
1. Solar battery : 10w, 18V,
2. Battery capacity: 12V/7AH
3. Solar controller:
● Rated output voltage and current: 12V/2A
● Battery overcharge protection: 14.40 ± 0.2V, recovery 13.8 ± 0.2V
● Battery discharge protection: 10.80 ± 0.2V, recovery 12.5 ± 0.2V
● Two output modes: Normal ON / OFF mode, light control on / off mode
4. Inverter:
● Rated input voltage: 10 ~ 15V
● Rated output voltage: AC220V ± 10%, 50Hz ± 3Hz; DC5V
● Output waveforms: sine wave
● Rated output power: 150W
● Low Voltage Shutdown: 9V ~ 10V
● Overvoltage shutdown: 14.5 to 15.5
Training course
1. Solar photovoltaic energy conversion experiment
2. Environmental impact on the photovoltaic conversion experiment
3. Solar cell directly load experiment
4. Controller principle experiment
5. Controller overshoot protection experiment
6. Controller over-discharge protection experiment
7. Controller's two output modes experiment
8. Low-voltage inverter protection experiment
9. Inverter over voltage protection experiment
10. Inverter output experiment
11. Solar photovoltaic system electrical load experiment
12. Photovoltaic solar power generation system control experiment
