This educational equipment didactic equipment uses dc servo motor, dc servo drive to carry out the training of dc servo manual control, dc servo typical position closed-loop control, and the analog circuits realize dc servo motor position closed-loop adjusting loop (P, I, D) etc.This didactic equipment can be used to learn the basic knowledge and other knowledge and skills of dc serve motor control loop. The educational equipment is also suitable for the teaching and skills training of related majors in higher vocational colleges and secondary vocational colleges. At the same time, the dc servo motor didactic equipment can also be used as an dc serve motor control loop educational equipment for skill training and skill appraisal in technical schools, vocational education centers, and vocational qualification appraisal stations.

Technical parameter
1. Dimension: About 420 mm x 300 mm x 120 mm
2. Working power: Single-phase AC220V,50 HZ, <50 W

Product description

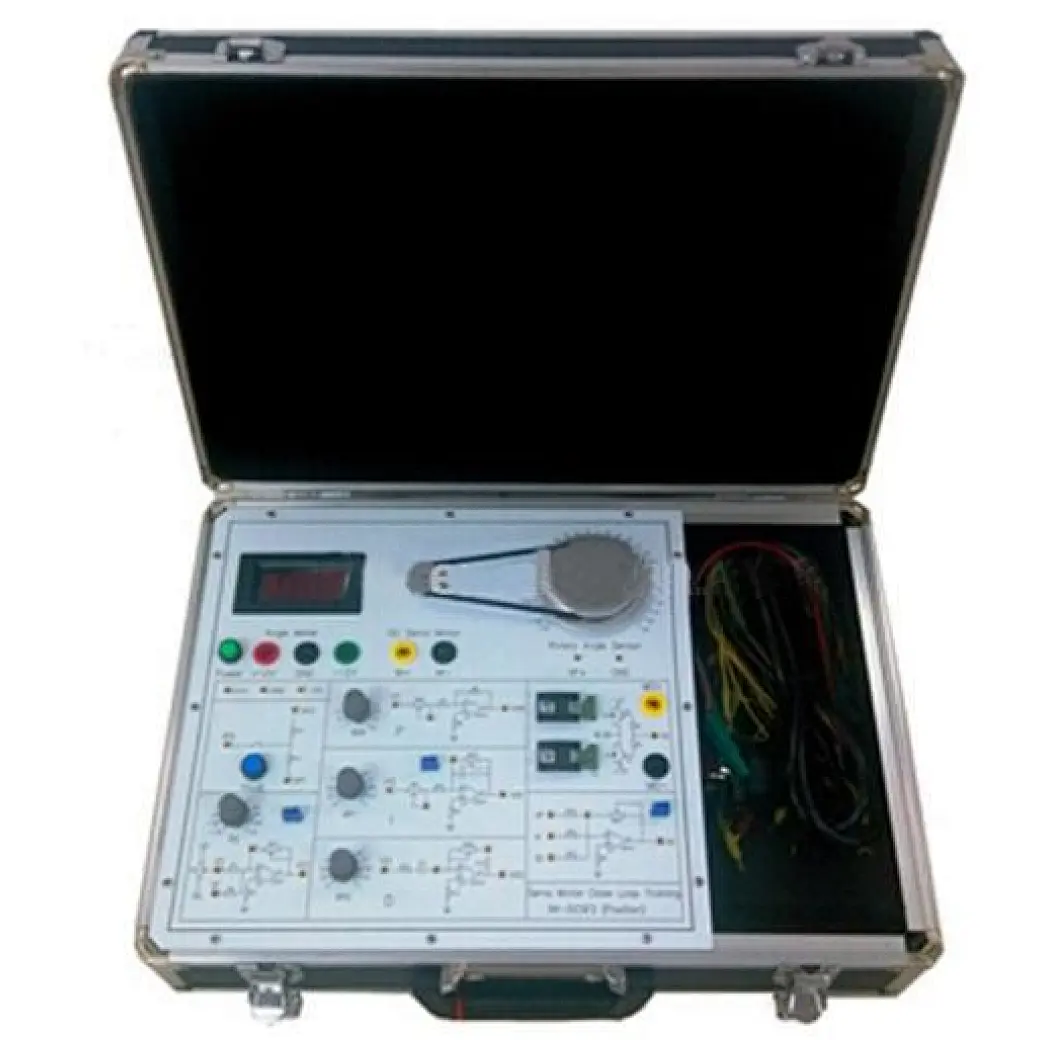

This training device uses dc servo motor, dc servo drive to carry out the training of dc servo manual control, dc servo typical position closed-loop control, and the analog circuits realize dc servo motor position closed-loop adjusting loop (P, I, D)  etc.

Product composition
No.
Item
QTY
1
DC servo motor
1 UNIT
2
Angle meter
1 UNIT
3
DC servo drive
1 UNIT
4
Feedback device
1 UNIT
5
Control circuit module
1 UNIT
6
Experimental jump line
1 SET
7
Related tools
1 SET
Basic experiments
1. DC servo motor knowhow training
2. The dc servo drive knowhow training
3. DC servo manual control experiment
4. DC servo typical speed closed-loop control application experiment
