Order No.: 003- GT17-0162-002

Specification:

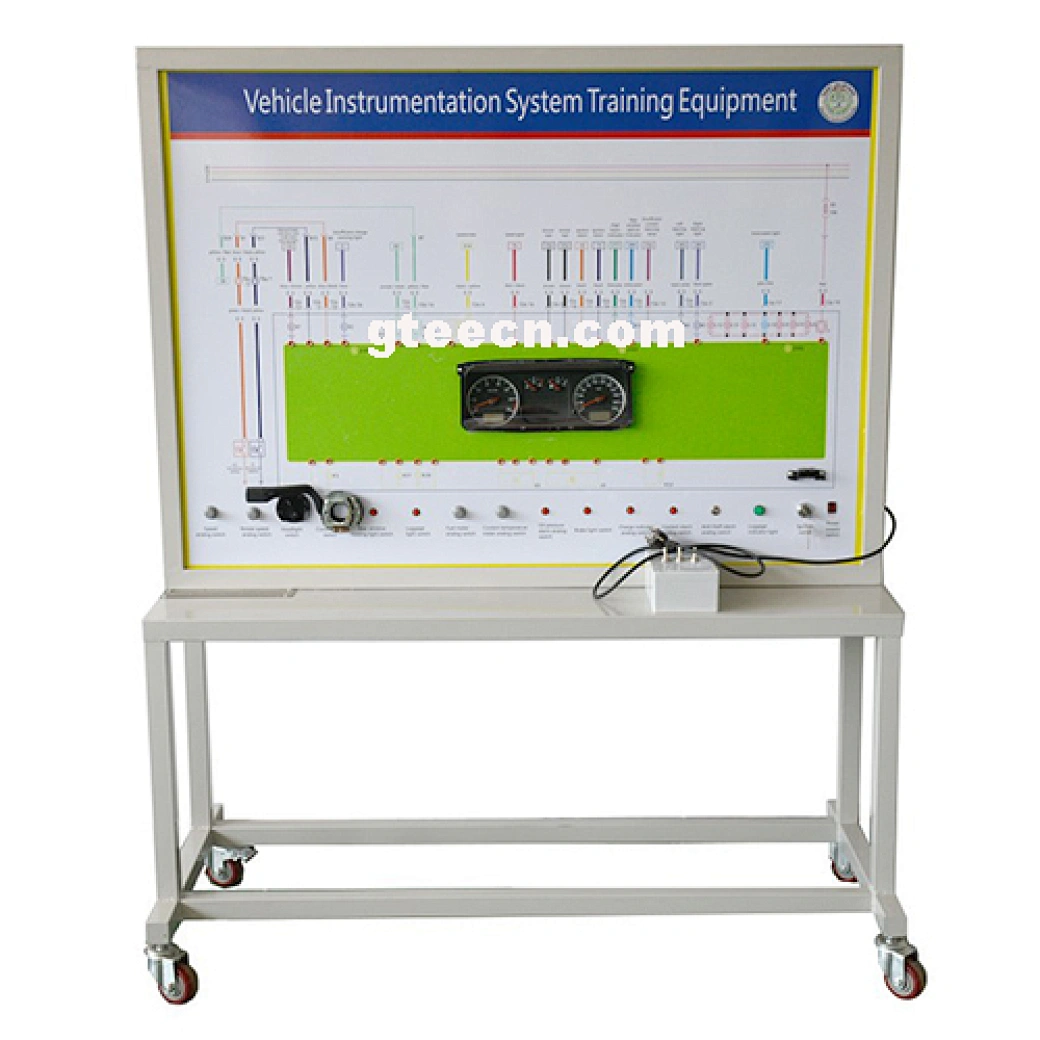

The equipment should include all real main components of the instrumentation system, lighting combination switch, ignition switch, OBDII diagnostic base, signal simulators, etc.
The automotive training board automotive training equipment should be equipped with all relevant teaching aids, which can normally demonstrate the lighting system, tachometer, speedometer, water temperature gauge, fuel gauge and other displays.
The automotive training board should be equipped with simulation regulator, which can demonstrate the signal changes of tachometer, speedometer, water temperature gauge, fuel gauge and so on in a real time.
The automotive training board automotive equipment should contain several external terminals on the schematic, with which voltage, resistance current and other testing and maintenance training of each component and control circuit can be conducted.
Allowable for faults simulation, with which you can simulate faults and set the broken circuit fault of the main control circuits of the instrument system and automotive equipment is convenient far teachers to perform instrument system training assessment of students.
A circuit diagram on the front panel to illustrate the working principle of the system must be Included.
Supporting manual.sheets, and experiment guide book must be included.
