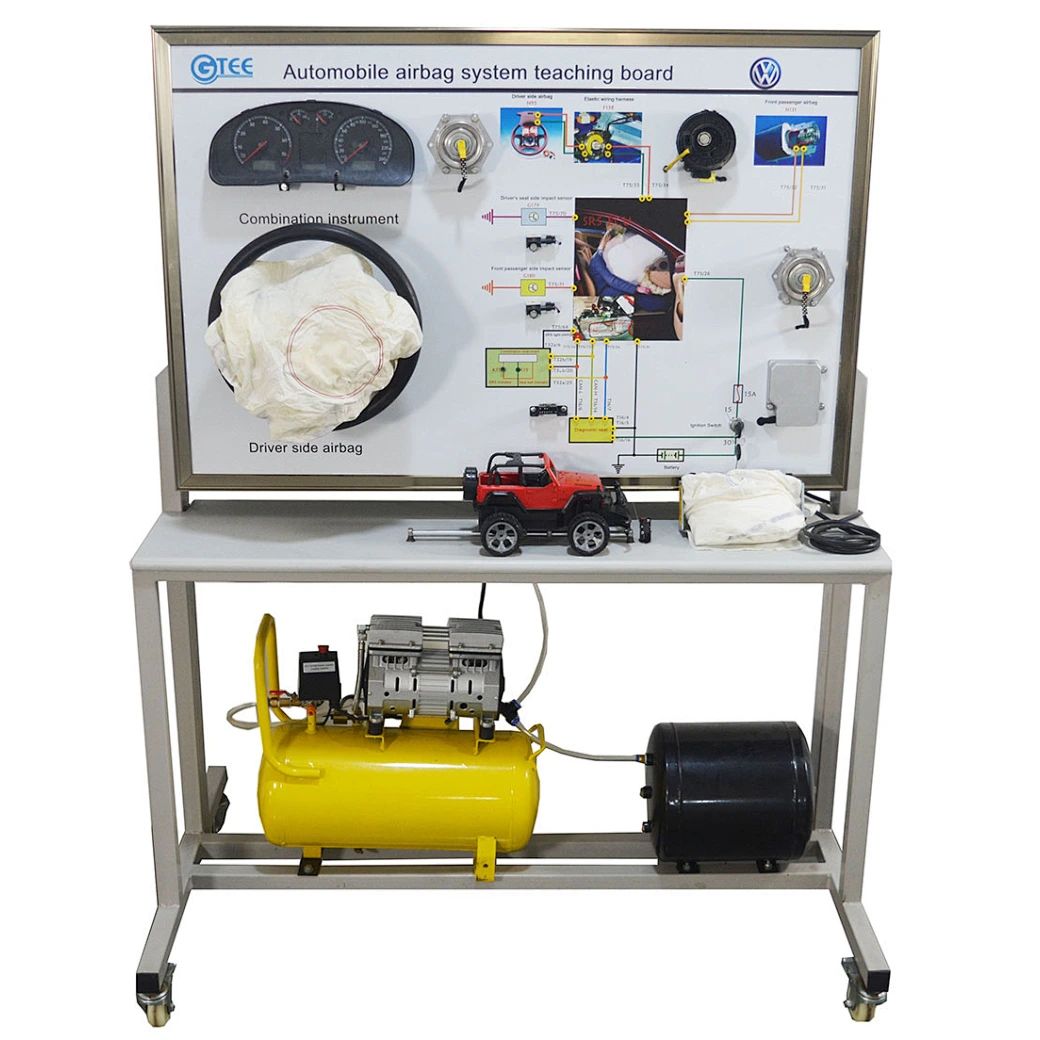

The automotive training board airbag teaching board driving school lab equipment uses new Passat airbag system components. The driving school lab equipment airbag teaching board shows the composition and working principle of the automobile airbag system.

Technical parameter
1. Dimensions: about 1340x650x1800mm
2. Power supply: AC220V, 50Hz
3. Air compressor: 0.75KW  24L 7bar

Product description
This automotive training board uses the original components of the Volkswagen Passat airbag system. The airbag teaching board displays the composition and structure of the automotive airbag system. It can simulate the working process of air bag system.

Product composition
Airbag ECU
1SET
Air tank
1SET
Fault setting module (Manual switch type)
1SET
Collision sensor
1SET
Left and right airbag
1SET
Air compressor
1SET
Collision simulation device
1SET
Dashboard
1SET
Mobile stand with test panel
1SET
OBD diagnostic seat
1SET

Main features
1. Equipped with the original car airbag system, it can fully demonstrate the structure and composition of the airbag system.
2. The automotive training board can simulate and demonstrate the working process of the airbag system.
3. The airbag teaching board can measure the electrical signals ie voltage, current, frequency etc of the airbag system.
4. Fault setting module: manual switch type (optional intelligent type).
5. Equipped with an OBD diagnostic seat, it can read and clear airbag system fault codes, and read the data streams.

Training courses
1. Function introduction if the main components of the airbag system;
2. Demonstration of the working process of the airbag system;
3. Signal measurement of sensors and actuators;
4. Fault setting and troubleshooting;
5. Use of scanner.
