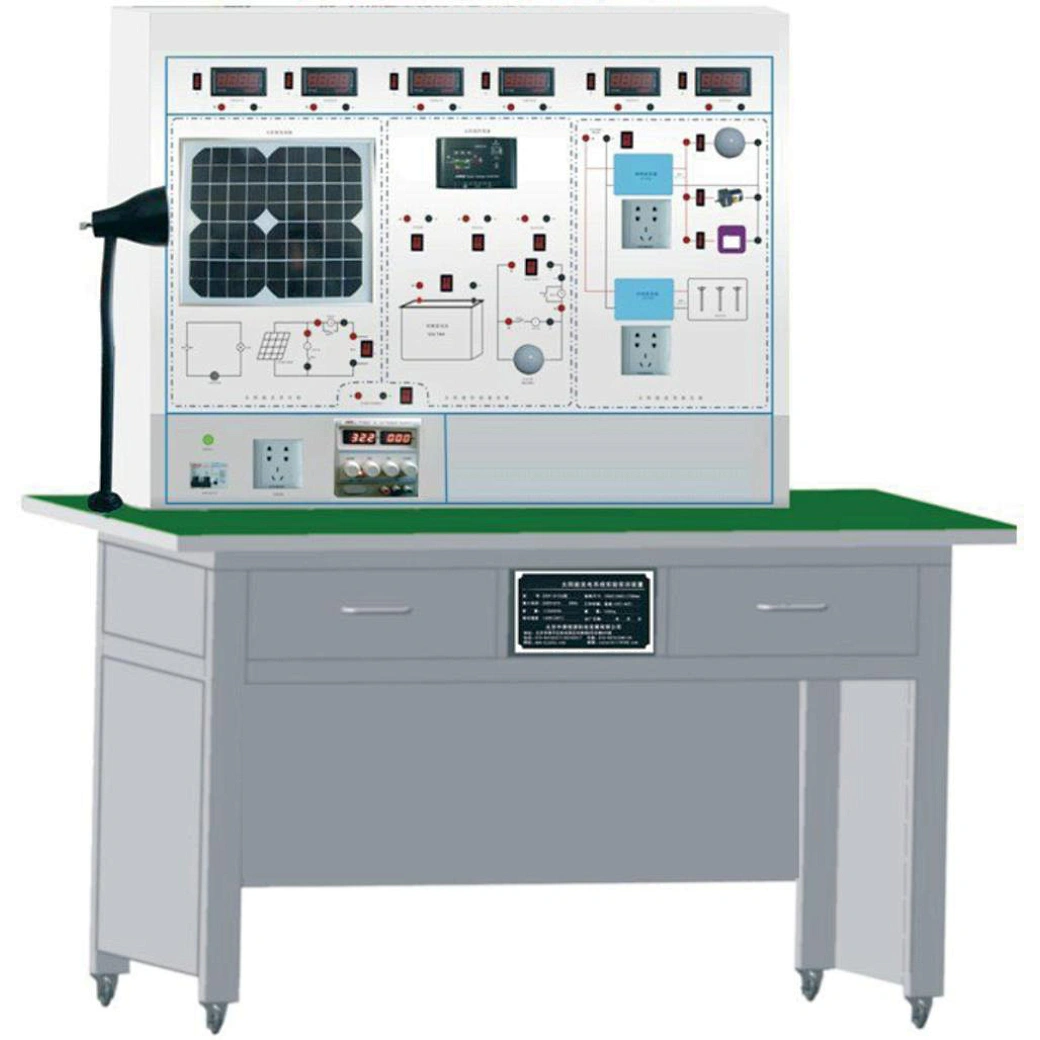

Solar photovoltaic power generation system experimental training device
GTNT-003
Technical parameter
Dimension (l × w × h): 1300X700X1700mm.
Working temperature: -10°C~40°C, relative humidity<85%(25°C)
Power supply: Single phase, AC220V/50Hz,
Weight: about 100kg
Dimension (l × w × h): 1300X700X1700mm.
Working temperature: -10°C~40°C, relative humidity<85%(25°C)
Power supply: Single phase, AC220V/50Hz,
Weight: about 100kg
Delivery
EXW
minimum order
1 set
Supply Ability
30set / Month
Country of Origin
Guangzhou,China
Stock Time
45Day
Quantity
The vocational training equipment solar photovoltaic power training equipment didactic equipment are specially designed to meet the experimental teaching requirements of solar cell performance testing and photovoltaic application of new energy related majors in higher education and vocational education.This vocational training equipment solar photovoltaic power training equipment can be used to learn the basic knowledge and other knowledge and skills of electrical machines. The didactic equipment solar photovoltaic power training equipment is also suitable for the teaching and skills training of related majors in higher vocational colleges and secondary vocational colleges. Meanwhile the vocational training equipment can also be used as a didactic equipment for skill training and skill appraisal in technical schools, vocational education centers, and vocational qualification appraisal stations.
Technical parameter
Dimension (l × w × h): 1300X700X1700mm.
Working temperature: -10°C~40°C, relative humidity<85%(25°C)
Power supply: Single phase, AC220V/50Hz,
Weight: about 100kg
Product composition
Monocrystalline silicon component 10W,
Control module
Inversion and load module
Solar energy test module
Storage battery pack
Solar light source controller
Single phase off-grid inverter
Experiment contents:
1. Solar cell power generation principle;
2. Solar photovoltaic panels energy conversion;
3. Photovoltaic conversion influenced by environment;
4. Solar cell photovoltaic systems direct load characteristics;
5. Solar controller test and reverse protection test;
6. Protection for storage battery by solar controller;
7. Solar cell IV curve test;
