Solar energy generation training bench
GTNT-004
Technical parameter
Power supply: AC220V±10%, 50HZ;
Power: ≤500W;
Temperature: -10°C～+40°C
Dimensions (l × w × h): work bench: 1200* 700 *1800mm;
Frame with solar panel: 540*1025*500mm(4set)
Weight: About 150kg
Power supply: AC220V±10%, 50HZ;
Power: ≤500W;
Temperature: -10°C～+40°C
Dimensions (l × w × h): work bench: 1200* 700 *1800mm;
Frame with solar panel: 540*1025*500mm(4set)
Weight: About 150kg
Delivery
EXW
minimum order
1 set
Supply Ability
30set / Month
Country of Origin
Guangzhou,China
Stock Time
45Day
Quantity

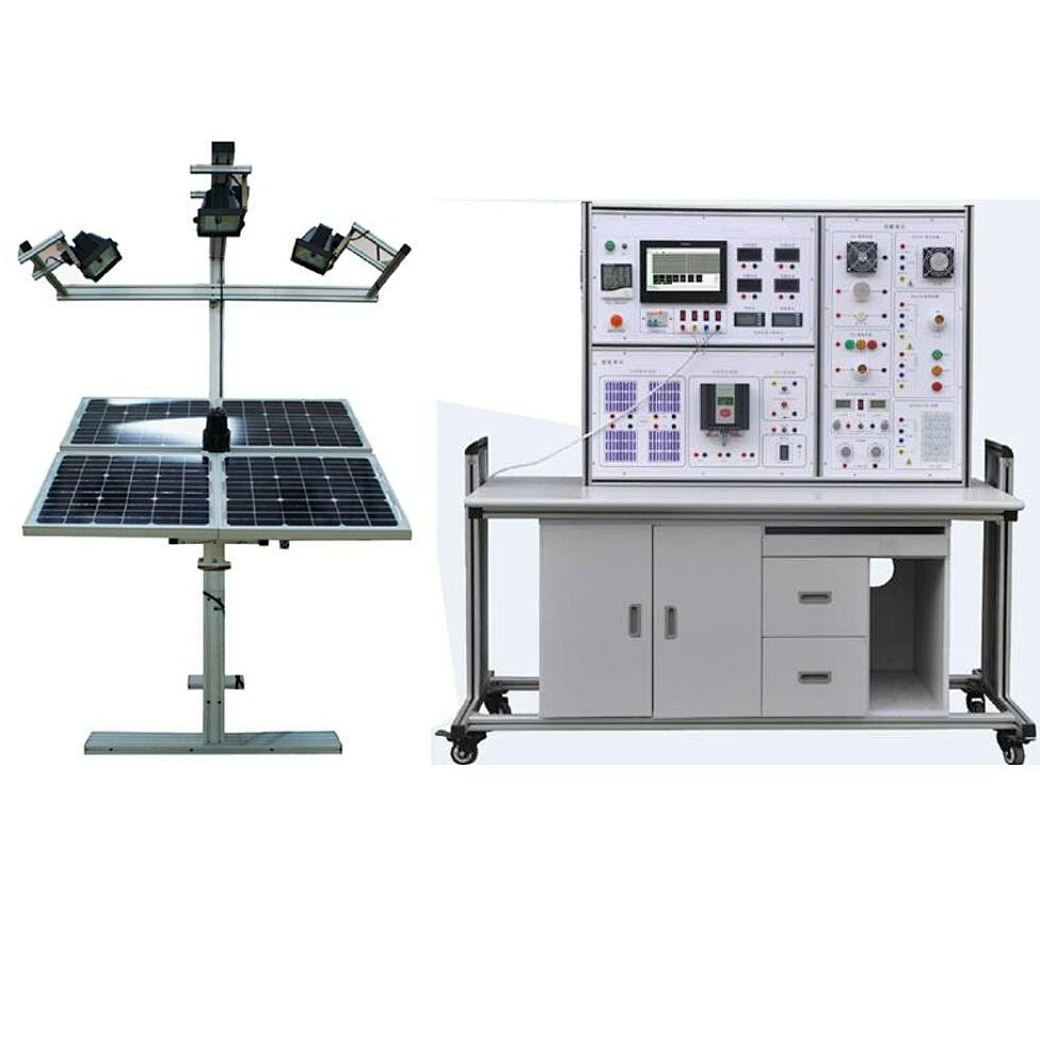

This educational equipment solar energy generation solar energy training equipment training bench adopts 4 set 100W monocrystalline silicon solar cell panel (54cm*100cm) and 220V, 1000W solar simulation light to simulate light source. The educational equipment solar energy generation solar engergy training equipment training bench adopts dual system charge and discharge controller with multiple working modes and perfect protection functions, which is ideal solar energy training equipment for the solar power generating training.The educational equipment solar energy generation training bench is suitable for the teaching needs of the theory and maintenance training of solar energy training equipment in vocational and technical schools, colleges and universities, training institutions.
Technical parameter
Power supply: AC220V±10%, 50HZ;
Power:≤500W;
Temperature: -10°C～+40°C
Dimensions (l × w × h): work bench: 1200* 700 *1800mm;
Frame with solar panel: 540*1025*500mm(4set)
Weight: About 150kg
Product composition
Training bench 1200*700*1800mm
Solar panel 4 sets: DC18V Power:100w, Size:540*1025mm
Simulated light source: Power: 1000w, 220VAC
Controller : 12V/24V，10A
Inverter: 380VAC, 2kw
Battery: 12V/65AH
Measuring device: Ammeter, Voltmeter, Wattmeter.
Training courses:
1. Energy conversion experiment of solar photovoltaic panels
2. The influence of environment on PV transformation
3. Direct load characteristic test of solar cell photovoltaic system
4. Working principle experiment and protection measures of solar controller
5. Experiment on overcharging protection of solar cells
6. Experiment on battery discharge protection of solar controller
