Small freezer trainer vocational training equipment

Small freezer training equipment

GTRT-0001
Technical parameter
1. Dimension: About 6000mm × 2400mm × 2500mm
2. Working power: AC380V±10%,50Hz
3. Compressor power: ≥2.5HP
4. Refrigerant: R22
5. Safety protection: overvoltage, over current, overload, leakage and grounding
Delivery
EXW
minimum order
1 set
Supply Ability
30set / Month
Country of Origin
Guangzhou,China
Stock Time
45Day
Quantity
Contact Now

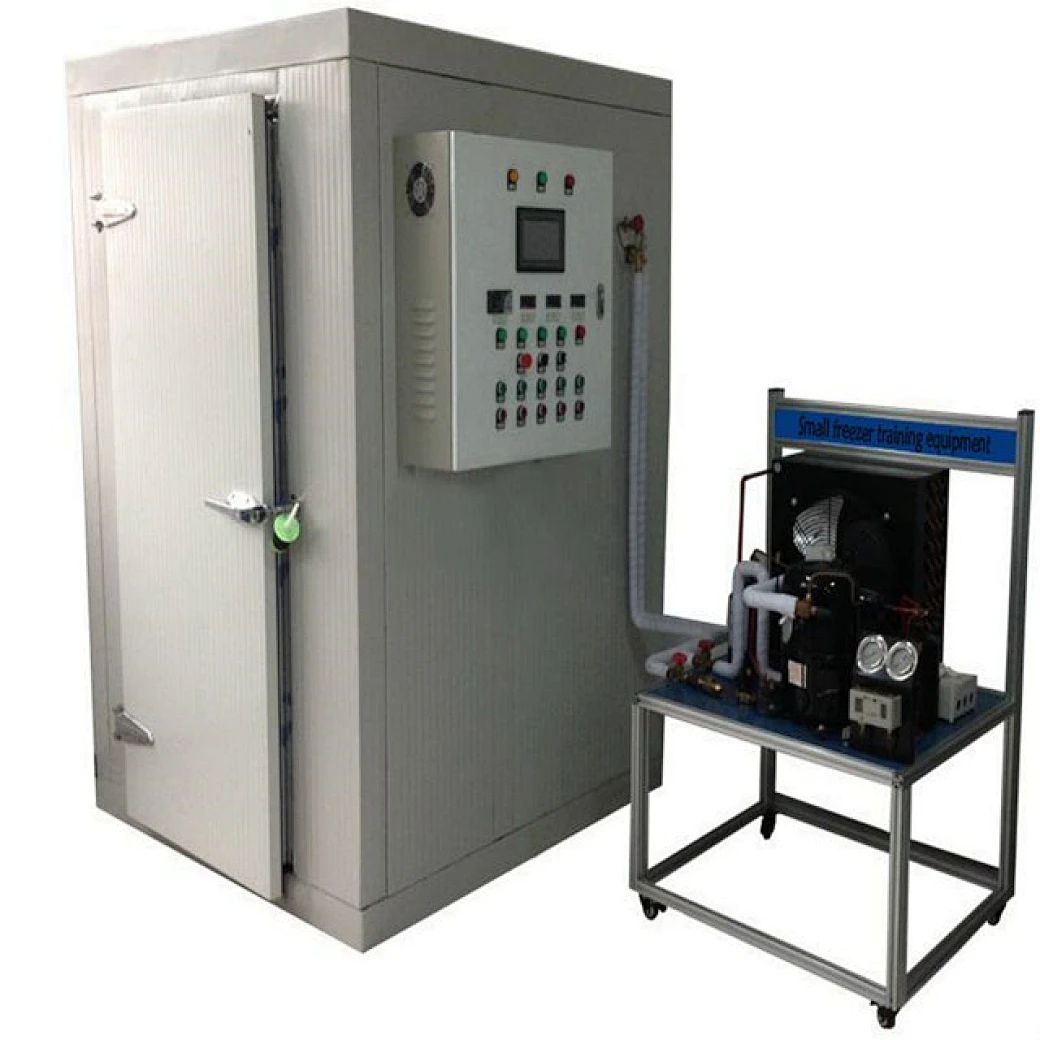

The small freezer training equipment includes three main parts of electrical control systems, refrigeration units, and real storage room. The vocational training equipment small freezer training equipment can simulate the control principle and work flow of real small freezer. The students ca learn the cold storage unit design, load calculation, electrical design, warehouse design, cold storage management, cost estimates and other aspects skills by operating on the vocational training equipment small freezer training equipment.
Technical parameter
1. Dimension: About 6000mm × 2400mm × 2500mm
2. Working power: AC380V±10%,50Hz
3. Compressor power: ≥2.5HP
4. Refrigerant: R22
5. Safety protection: overvoltage, over current, overload, leakage and grounding
Product composition
No.
Name
Specs
QTY
1
Cold storage units
Compressor power is above 2.5HP, semi-closed
1 pcs
2
Electrical control cabinet
Controller, operator terminals, lines
1 pcs
3
Cold storage room
Size: 1500(L)×1500(W)×2100mm(H),
The thickness of the storage room wall is above 100mm
1 pcs
4
Experiment manual
1 pcs
Training courses
1. Understand the structure and principle of small freezer system
2. Design of small freezer system, including cooling capacity calculation, cold room installation
3. Electrical control system design of small freezer system, including design of electrical diagrams, electrical protection
4. Small freezer system startup, operation, commissioning and protection technology
5. Small freezer fault analysis, solutions and prevention
Fault analysis and troubleshooting
1. Freezer temperature controller damaged
2. High temperature room temperature controller damaged
3. Freezer temperature sensor circuit disconnected
4. Freezer temperature sensor circuit shortcut
5. Freezer defrosts sensor circuit disconnected
6. Freezer defrosting sensor circuit shortcut
7. Pressure controller damaged
8. Condenser fan damaged
9. Freezer cooler damaged
10. Compressor does not work
11. Freezer does not work
12. Over-current protection alarm
13. High temperature room sensor circuit disconnected
14. High temperature room sensor circuit shortcut.
15. High temperature room defrost sensor circuit disconnected
16. High temperature room defrost sensor of circuit shortcut
17. High temperature room is not cooling
18. The freezer does not defrost
19. High temperature room does not defrost
