Pure electric vehicle integrated training system
GTAT-D0015-001

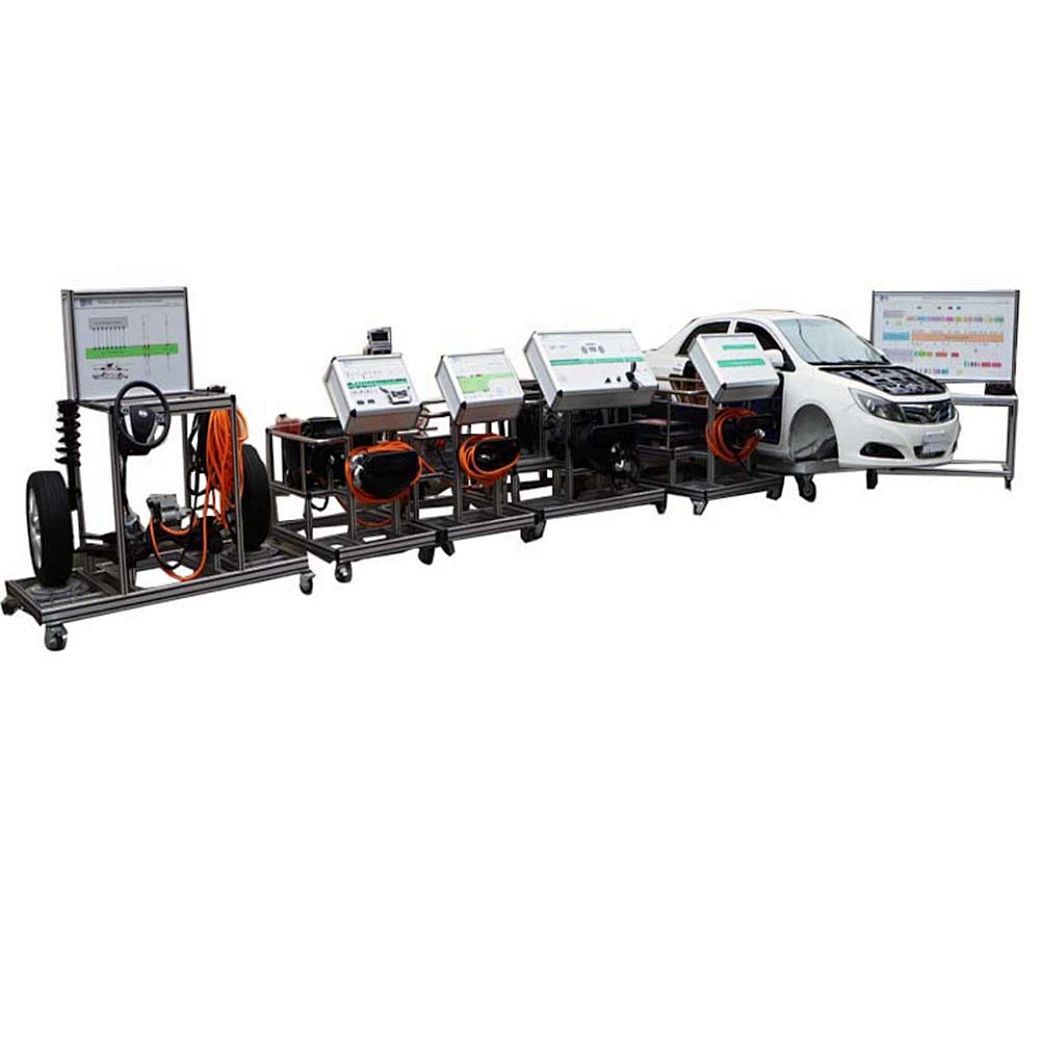

The electric vehicle comprehensive training system is based on the modular design of the pure electric vehicle system, including the following six modules:
1. Battery management system module,
2. Motor drive system module,
3. Control system module,
4. Air conditioning system module,
5. Power steering system module,
6. Vehicle electrical system module.
1. Battery management system module,
2. Motor drive system module,
3. Control system module,
4. Air conditioning system module,
5. Power steering system module,
6. Vehicle electrical system module.
Delivery
EXW
minimum order
1 set
Supply Ability
20set / Month
Country of Origin
Guangzhou,China
Stock Time
45Day
Quantity
The electric vehicle training equipment didactic equipment automotive training equipment is composed of integrated six modules and connected to each other, which can fully demonstrate the structural composition and working principle of each system of pure electric vehicles, allowing students to learn various technologies, structural design and maintenance skills of pure electric vehicles and ideal pure electric vehicle training equipment for colleges and universities.
Applicable models: BYD E5;
The electric vehicle comprehensive training system is based on the modular design of the pure electric vehicle system, including the following six modules:
1. Battery management system module,
2. Motor drive system module,
3. Control system module,
4. Air conditioning system module,
5. Power steering system module,
6. Vehicle electrical system module.
Product composition
1.BMS system module
Module P.N.: EVM01

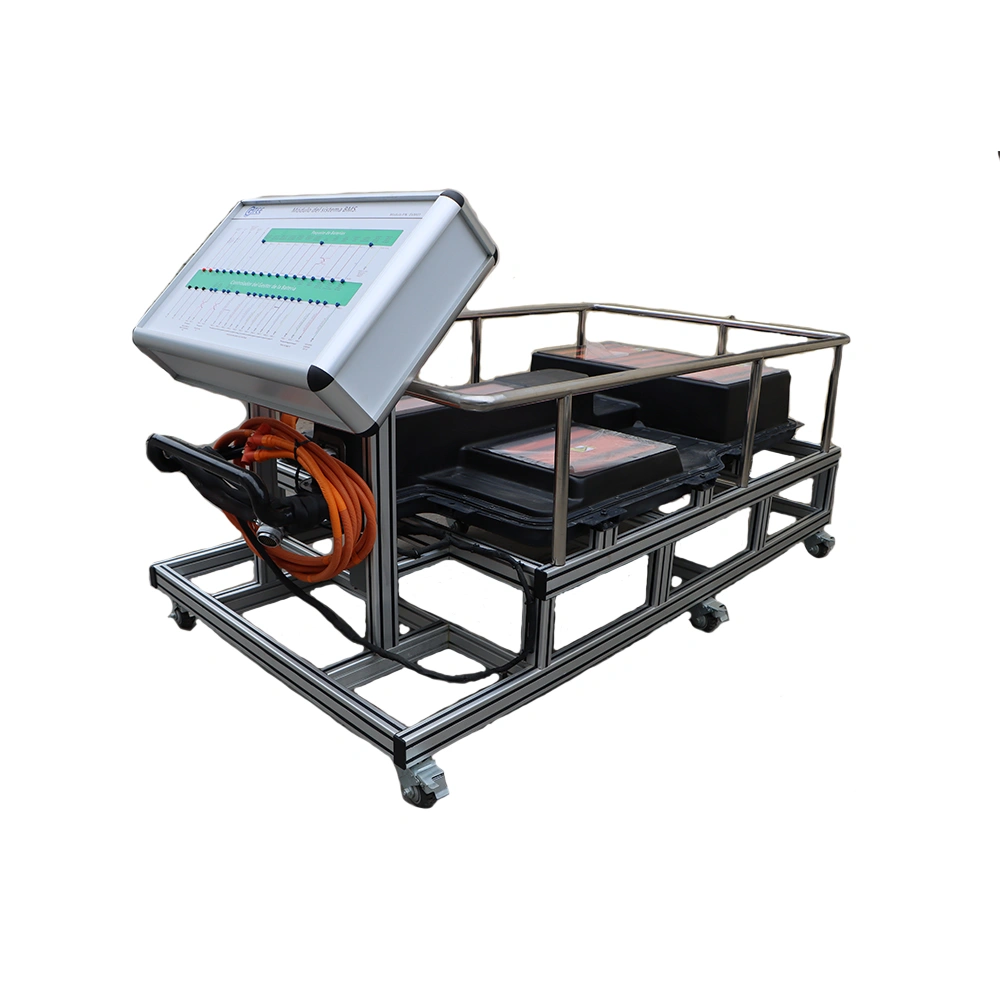

Picture for reference:
Specification:
Size: 2400×1360×1350mm
Weight: about 300kg
Product description
The training platform is based on pure electric vehicle battery and management system, and truly demonstrates the structure, principle and work flow of electric vehicle battery and management system; it is equipped with an intelligent fault module, which can perform fault detection and diagnosis, fault simulation and troubleshooting. By connecting the evm02 motor drive system module and the evm03 control system module, the structure and working process of the battery management system for pure electric vehicles can be demonstrated.
It is suitable for the practical teaching needs of various colleges and training institutions for the theory and maintenance training of automobile batteries.
Product composition
NO | Name | Spec | Quantity |
1 | Battery pack | According to car model | 1 |
2 | Battery management ECU | According to car model | 1 |
3 | High voltage connection line | According to car model | 1 |
5 | Low voltage connection line | According to car model | 1 |
17 | Color Circuit Schematic Panel | According to car model | 1 |
6 | Intelligent assessment fault setting module | GTEE | 1 |
7 | Training bench | Square tube size 50×50×2.0 | 1 |
8 | Swivel caster with brake | Diameter 75mm, width 35mm | 8 |
Training Courses:
1. Power battery safety operation training
2. Power battery structure understanding training
3. Power battery BMS structure understanding training
4. Disassembly and assembly training of power battery sealing strip
5. Power battery pack replacement training
6. Power battery safety inspection
7. Power battery tightness test
8. Power battery voltage detection
9. Power battery temperature detection
10. Power battery capacity test, capacity data analysis experiment.
11. Data analysis of power battery discharge current and charging current.
12. Power battery temperature test, over temperature protection test.
13. BMS data diagnosis, data analysis, data monitoring experiments.
14. Lithium battery charge and discharge experiment
2. Motor drive system module
Module P.N..: EVM02

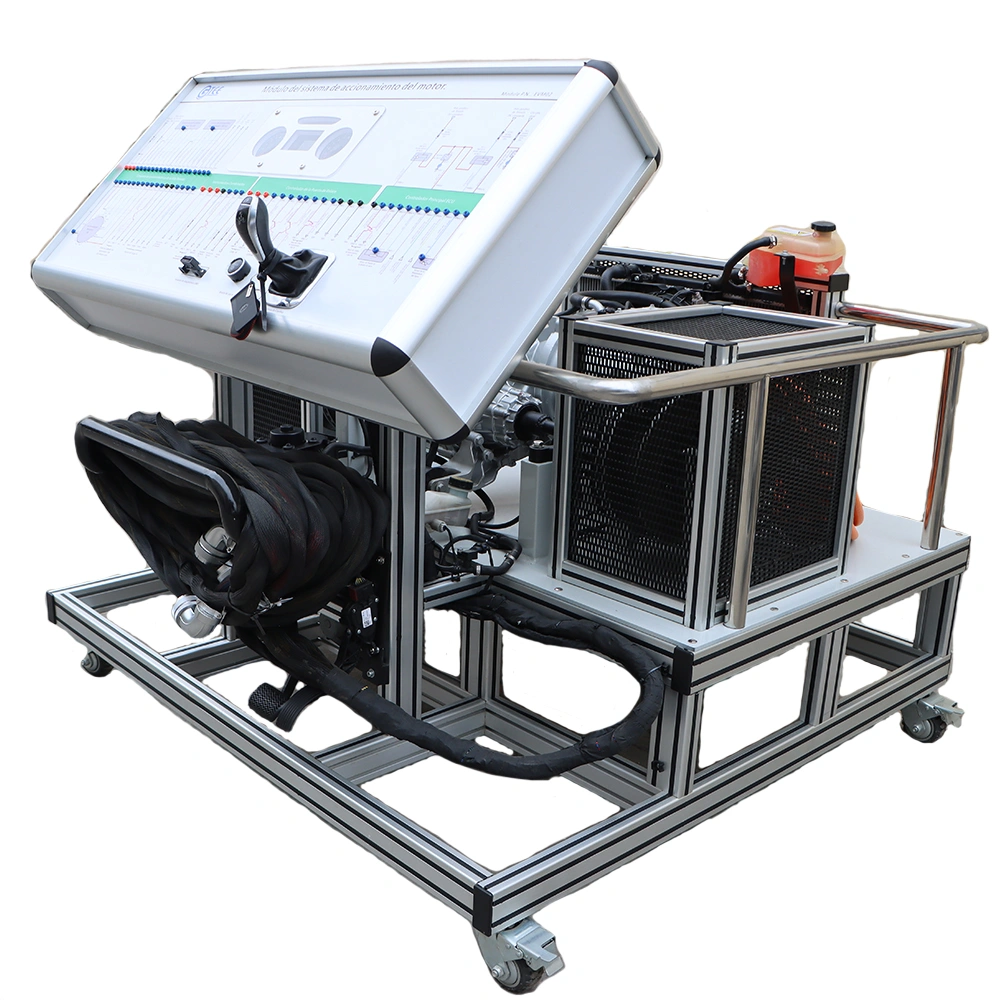

Picture for reference:
Specification:
Size: 1600×1450×1350mm
Weight: about 500kg
Product description:
This bench is based on the original drive motor system of pure electric vehicles, and truly shows the structure, principle and working process of the electric vehicle drive motor system; it is equipped with an intelligent fault module, which can perform fault diagnosis, fault simulation and troubleshooting. Practical practice of fault detection and diagnosis, fault simulation and troubleshooting. Connected with the evm01 battery management system module and the evm3 control system module, the working process of the electric vehicle motor drive system can be demonstrated.
It is suitable for various colleges and training institutions to meet the practical teaching needs of pure electric vehicle motor drive system theory and maintenance training.
Product composition
NO | Name | Spec | Quantity |
1 | Drive motor with transmission | According to car model | 1 |
2 | Drive half shaft | According to car model | 1 |
3 | Brake cylinder | According to car model | 1 |
4 | Brake pipe | According to car model | 1 |
5 | Brake claw assembly | According to car model | 1 |
6 | Brake pedal | According to car model | 1 |
7 | Brake vacuum pump | According to car model | 1 |
8 | Brake booster drum | According to car model | 1 |
9 | ABS master cylinder | According to car model | 1 |
10 | Cooling water tank and fan | According to car model | 1 |
11 | High voltage connection line | According to car model | 1 |
12 | Instrument assembly | According to car model | 1 |
13 | Gear lever | According to car model | 1 |
14 | One-button start | According to car model | 1 |
15 | OBD diagnostic seat | According to car model | 1 |
16 | Low voltage connection line | According to car model | 1 |
17 | Color Circuit Schematic Panel | According to car model | 1 |
18 | Intelligent assessment fault setting module | GTEE | 1 |
19 | Training bench | Square tube size 50×50×2.0 | 1 |
20 | Swivel caster with brake | Diameter 75mm, width 35mm | 8 |
Training Courses:
1. Disassembly and assembly of the motor assembly;
2. Disassembly and assembly of mechanical transmission assembly;
3. Familiar with the name, structure and principle of each part;
4. Drive system working signal voltage detection
5. Detection of the working speed signal of the drive motor
6. Fault diagnosis and detection of drive system
7. Drive motor temperature signal detection
3.Control system module
Module P.N..: EVM03
Picture for reference:
Specification:
Size: 1300×1000×1350mm
Weight: about 300kg
Product description
The training platform is based on the original control system of pure electric vehicles, and truly demonstrates the structure, principle and working process of the electric vehicle control system; it is equipped with an intelligent fault module, which can perform fault diagnosis, fault simulation and troubleshooting. It can be connected with the evm01 battery management system module and the evm02 motor drive system module to demonstrate the working process of the pure electric vehicle control system. It is suitable for all kinds of colleges and training institutions to meet the practical teaching needs of pure electric vehicle control system theory and maintenance training.
Product composition
NO | Name | Spec | Quantity |
1 | Four-in-one inverter | According to car model | 1 |
2 | Charging port | According to car model | 1 |
3 | High voltage connection line | According to car model | 1 |
5 | Low voltage connection line | According to car model | 1 |
6 | High Voltage Relay | According to car model | 1 |
7 | Color Circuit Schematic Panel | According to car model | 1 |
8 | Intelligent assessment fault setting module | GTEE | 1 |
9 | Training bench | Square tube size 50×50×2.0 | 1 |
10 | Swivel caster with brake | Diameter 75mm, width 35mm | 8 |
Training Courses:
1. The control system is connected to the power battery and the wiring harness of the drive system
2. Teaching the principles of control system construction
3. Signal detection of control system
4. Diagnosis and testing of control system
4. Air conditioning system module
Module P.N.: EVM04
Picture for reference:
Specification:
Size: 1300×1000×1350mm
Weight: about 150kg
Product description
Based on the original pure electric vehicle air conditioning system, the training bench truly demonstrates the structure, principle and working process of the electric vehicle air conditioning system; it is equipped with an intelligent fault module, which can perform fault diagnosis, fault simulation and troubleshooting. Connected with the evm01 battery management system module, it can demonstrate the working process of the pure electric vehicle air conditioning system. It is suitable for the practical teaching needs of various colleges and training institutions for the theory and maintenance training of electric vehicle air conditioning systems.
Product composition
NO | Name | Spec | Quantity |
1 | Evaporation box assembly | According to car model | 1 |
2 | Air conditioning pipe | According to car model | 1 |
3 | Condenser | According to car model | 1 |
4 | Cooling fan | According to car model | 1 |
5 | Compressor | According to car model | 1 |
6 | Pressure Sensor | According to car model | 1 |
7 | Heater | According to car model | 1 |
8 | Circulating pump | According to car model | 1 |
9 | Air conditioning control panel | According to car model | 1 |
10 | High voltage connection line | According to car model | 1 |
11 | Low voltage connection line | According to car model | 1 |
12 | Color Circuit Schematic Panel | According to car model | 1 |
13 | Intelligent assessment fault setting module | GTEE | 1 |
14 | Training bench | Square tube size 50×50×2.0 | 1 |
15 | Swivel caster with brake | Diameter 75mm, width 35mm | 8 |
Training Courses:
1. Master the structure principle and working principle of electric vehicle air conditioning system
2. Air conditioning pipeline disassembly and assembly training
3. Air conditioning compressor disassembly and assembly training
4. Air conditioning refrigerant emptying and filling training
5. Air-conditioning compressor working voltage detection
6. Data and signal detection of air conditioning control unit
7. Refrigeration and heating control signal detection of air-conditioning system
8. Fault diagnosis and detection of air-conditioning system
5. Power steering system module
Module P.N..: EVM05
Picture for reference:
Specification:
Size: 2000×1150×1350mm
Weight: about 150kg
Product description
Based on the original power steering system of pure electric vehicles, the training bench truly demonstrates the structure, principle and working process of the front axle and power steering system of electric vehicles; it is equipped with an intelligent fault module, which can perform fault diagnosis, fault simulation and fault diagnosis. exclude. Connect the evm01 battery management system module to demonstrate the working process of the pure electric vehicle power steering system. It is suitable for the practical teaching needs of various colleges and training institutions for the theory and maintenance training of electric vehicle power steering system.
Product composition
NO | Name | Spec | Quantity |
1 | Steering wheel | According to car model | 1 |
2 | Steering column | According to car model | 1 |
3 | Steering machine | According to car model | 1 |
4 | Front axle | According to car model | 1 |
5 | Tire | According to car model | 2 |
6 | Brake claw assembly | According to car model | 2 |
7 | Steering sensor | According to car model | 1 |
8 | Steering motor | According to car model | 1 |
9 | Low voltage connection line | According to car model | 1 |
10 | Color Circuit Schematic Panel | According to car model | 1 |
11 | Intelligent assessment fault setting module | GTEE | 1 |
12 | Training bench | Square tube size 40×40×2.0 | 1 |
13 | Swivel caster with brake | Diameter 75mm, width 35mm | 8 |
Training Courses:
1. Understand the structure of electric power steering (EPS);
2. Understand the function of each structure of electric power steering (EPS);
3. Familiar with the difference between EPS and mechanical hydraulic power;
6.The entire electrical system module
Module P.N.: EVM06
Picture for reference:
Specification:
Size: Training Vehicle: BYD E5: 4680×1765×1500mm
Training platform: 1800×700×1800mm
Weight: about 800kg
Product description
Based on the original electric body electrical system of the pure electric vehicle, the body is cut to fully display the composition and work flow of the vehicle instrument system, lighting system, wiper system, horn system, power window system, and power door lock. Electric rear-view mirror, audio system, etc., and equipped with a training panel for students to learn the function of circuit terminal detection. Equipped with intelligent fault module for fault diagnosis, fault simulation and troubleshooting. Connect with the evm01 battery management system module to demonstrate the working process of the electric system of pure electric vehicles. It is suitable for the practical teaching needs of various colleges and training institutions for the theory and maintenance training of electric vehicle power steering system.
Product composition
NO | Name | spec | Quantity |
1 | Anatomical car body | According to car model | 1 |
2 | Left headlight | According to car model | 1 |
3 | Right headlight | According to car model | 1 |
4 | Left fog light | According to car model | 1 |
5 | Right fog light | According to car model | 1 |
6 | Left rear tail light | According to car model | 1 |
7 | Right rear tail light | According to car model | 1 |
8 | Combination Switch | According to car model | 1 |
9 | Left front door | According to car model | 1 |
10 | Right front door | According to car model | 1 |
11 | Left rear door | According to car model | 1 |
12 | Right rear door | According to car model | 1 |
13 | Door lock motor | According to car model | 1 |
14 | Window motor | According to car model | 1 |
15 | Window switch | According to car model | 1 |
16 | Low voltage connection line | According to car model | 1 |
17 | Low voltage battery | According to car model | 1 |
18 | Fuse box | According to car model | 1 |
19 | Body computer | According to car model | 1 |
20 | Wiper motor | According to car model | 1 |
21 | Wiper water jet motor | According to car model | 1 |
22 | Test bench | According to car model | 1 |
23 | Intelligent assessment fault setting module | GTEE | 1 |
24 | Training bench | Square tube size 40×40×2.0 | 1 |
25 | Swivel caster with brake | Diameter 75mm, width 35mm | 8 |
Training Courses:
1. Disassembly and assembly of lighting system
2. Disassembly and assembly of central control door locks and windows
3. Disassembly and assembly of the water jet wiper
4. Disassembly and assembly of car audio system
5. Disassembly and assembly of electric rearview mirror
6. Understand the circuit layout and control principle of the vehicle
7. Headlamp Inspection
8. Rear tail light detection
9. Central control door lock detection
10. Water spray wiper detection
11. Sound detection
12. Electric rearview mirror detection
13. Body CAN-bus signal detection
