Portable penumatic training device
GTPT-0003
Technical parameter
Training box dimension: 560×400×230mm
Air compressor dimension: 540*220*540mm
Power supply: Single phase AC220V, 50Hz
Weight: about 30kg
Training box dimension: 560×400×230mm
Air compressor dimension: 540*220*540mm
Power supply: Single phase AC220V, 50Hz
Weight: about 30kg
Delivery
EXW
minimum order
10 sets
Supply Ability
30sets / Month
Country of Origin
Guangzhou,China
Stock Time
45Day
Quantity

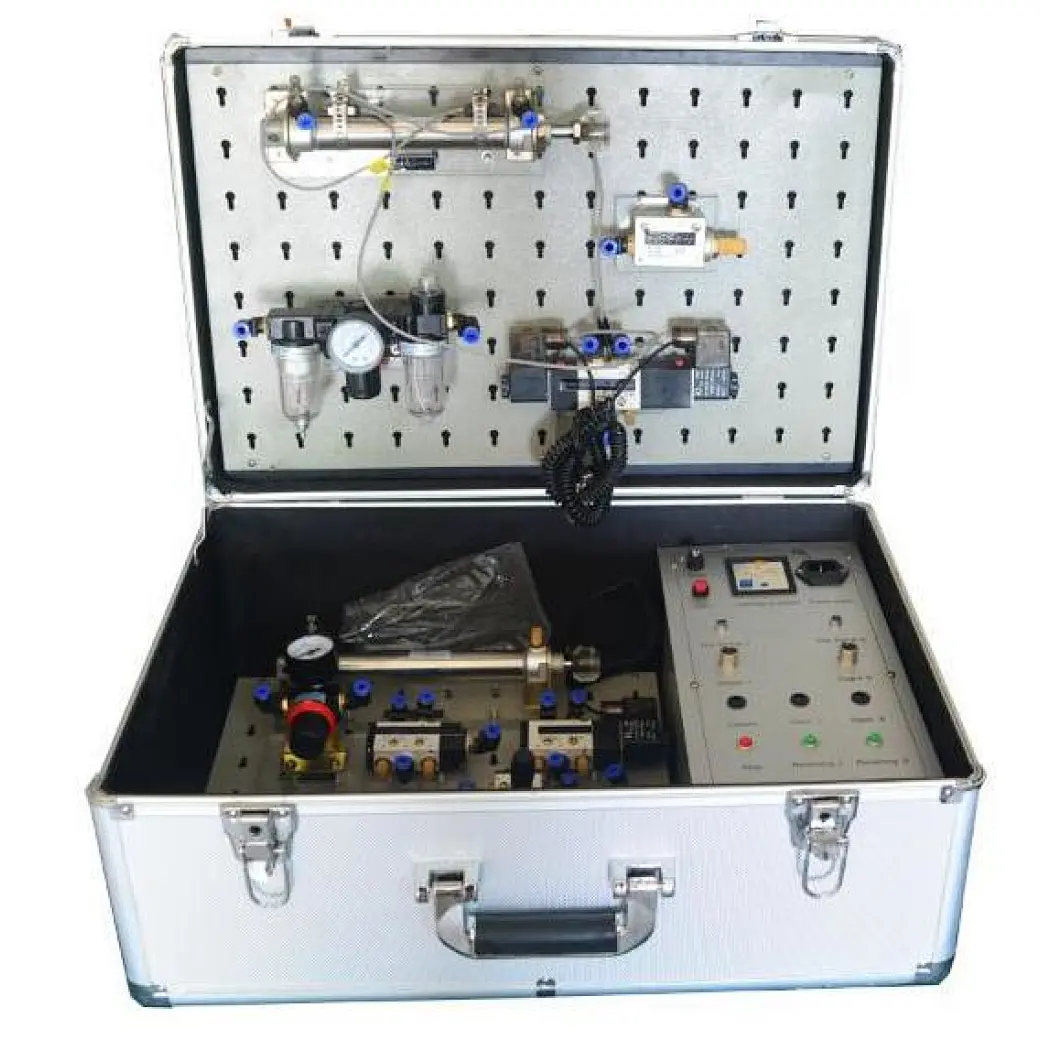

This educational equipment penumatic training device is mainly composed of aluminum alloy casing, all kinds of small standard industrial pneumatic components, electrical control part, its composition and structure is compact, lightweight and practical.
Students can independently design and connect pneumatic circuit and electric control circuit, and can do most basic pneumatic experiments on the penumatic training device. The educational equipment penumatic training device is suitable for vocational colleges and universities for basic pneumatic transmission technology practice teaching. The educational equipment training device is also suitable for teaching and skills training of related majors in higher vocational colleges and secondary vocational colleges.
Technical parameter
Dimension:
Training box: 560×400×230mm
Air compressor: 540*220*540mm
Power supply: Single phase AC220V, 50Hz
Weight: about 30kg
Product description
1. This training kit is mainly composed of aluminum alloy casing, all kinds of small standard industrial pneumatic components, electrical control part, its composition and structure is compact, lightweight and practical.
2. Students can independently design and connect pneumatic circuit and electric control circuit, and can do most basic pneumatic experiments. It is suitable for vocational colleges and universities for basic pneumatic transmission technology practice teaching.
Product composition
No. | Name | Specs | QTY |
1 | Experimental box | Pneumatic experiment box | 1pcs |
2 | Components | Mini air compressor | 1set |
Single-acting cylinder QGX25ⅹ100 | 1pcs | ||
Double-acting cylinder QGX25ⅹ100 | 1pcs | ||
Sanlian pieces AC2000 | 1pcs | ||
Manual steering valve H210-08 | 1pcs | ||
5/2 single electromagnetic directional valve | 1pcs | ||
5/3 Double electromagnetic directional valve | 1pcs | ||
5/2 Single gas reversing valve(two five-way)8 | 1pcs | ||
D5/2 double gas reversing valve | 1pcs | ||
Stroke valve (button) MOV-3A | 1pcs | ||
One-way throttle valve RE-02 | 1pcs | ||
3 | Tools | 1 set | |
4 | Accessories | 1 set |
Training courses
1. Single-acting cylinder commutation loop
2. Double-acting cylinder commutation loop
3. Single-acting cylinder speed control loop
4. Double-acting cylinder one-way speed control loop
5. Two-way double-acting cylinder speed control loop
6. Speed convert loop
7. Buffer loop
8. Secondary pressure control loop
9. Single cylinder continuous reciprocating motion loop
10. Unloading loop
11. Quick exhaust valve application circuits
5. Two-way double-acting cylinder speed control loop
6. Speed convert loop
7. Buffer loop
8. Secondary pressure control loop
9. Single cylinder continuous reciprocating motion loop
10. Unloading loop
11. Quick exhaust valve application circuits
