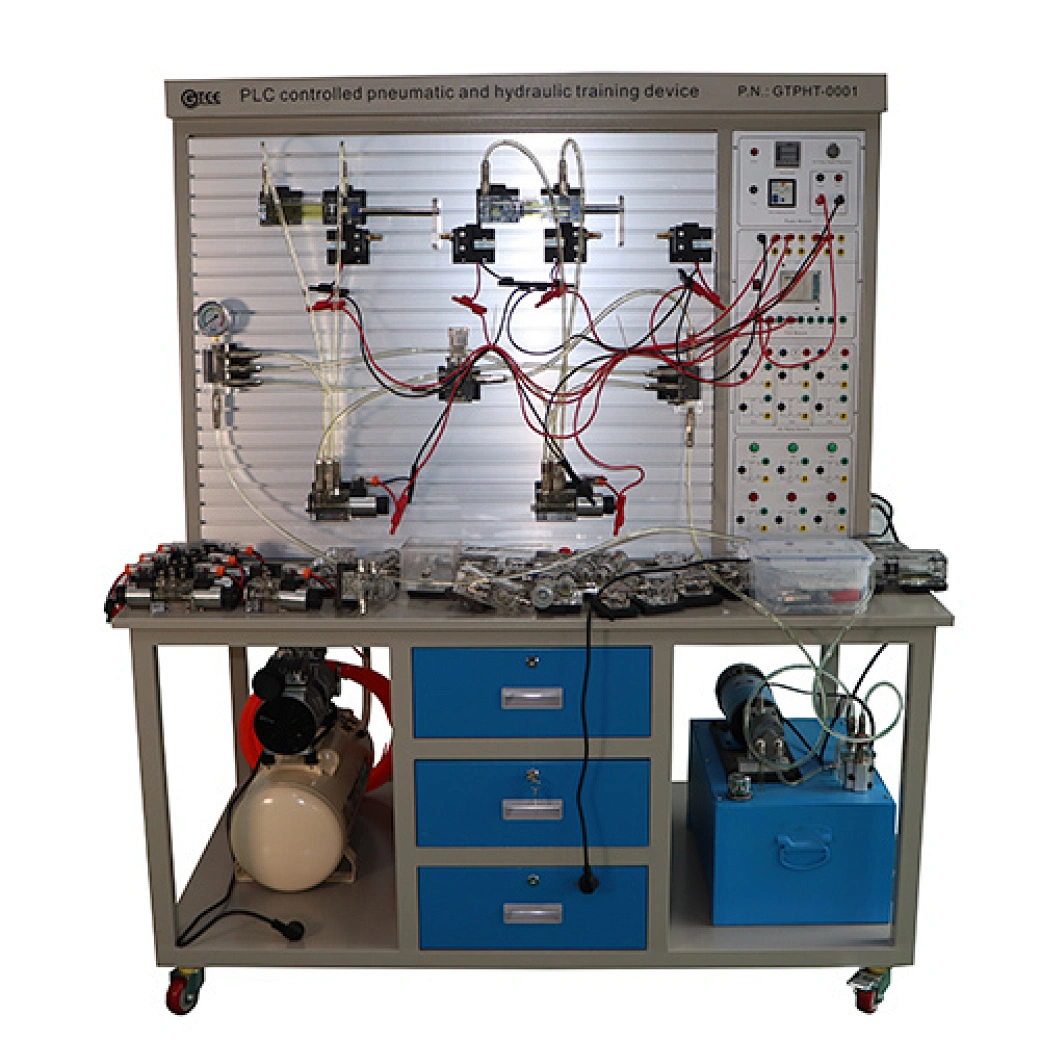

PLC controlled pneumatic and hydraulic training device
GTPHT-0001
Technical parameter
Dimension: 1500×800×1760mm
Power supply: Single phase AC220V, 50Hz
Weight: about 300kg
Dimension: 1500×800×1760mm
Power supply: Single phase AC220V, 50Hz
Weight: about 300kg
Delivery
EXW
minimum order
1 set
Supply Ability
30set / Month
Country of Origin
Guangzhou,China
Stock Time
45Day
Quantity
The pneumatic and hydraulic training equipment plc trainer uses double-sided structure, is an experimental table provides places for doing pneumatic and hydraulic test experiment for two groups of four students. The educational training equipment plc trainer pneumatic and hydraulic training equipment can simultaneously do double-sided comprehensive PLC controlled pneumatic and hydraulic experiments, optimizing and sharing resources and improving products’ performance. The educational training equipment plc trainer pneumatic and hydraulic training equipment uses transparent hydraulic components for easy understanding of the work principle of the hydraulic system. The educational training equipment pneumatic and hydraulic training equipment plc trainer is suitable for the teaching needs of the theory and maintenance training of hydraulic and pneumatic system in vocational and technical schools, colleges and universities, training institutions.
Technical parameter
Dimension: 1500×800×1760mm
Power supply: Single phase AC220V, 50Hz
Weight: about 300kg
Product composition
Pneumatic:
No. | Name | Specs | QTY |
1 | Air compressor | 10L, 0.7Mpa | 1 pcs |
2 | Experimental bench | 1 pcs | |
3 | Components installation panel | Relay control unit, Signal input unit, | 1 set |
4 | PLC control units and accessories | MITSUBISHI FX1S-20MR | 1 set |
5 | Single-acting cylinder | MSAX25×100-CA | 1 pcs |
6 | Dual-acting cylinder | MAX25×100-CA | 2 pcs |
7 | Oil-water separator | AC2000 Triple pieces | 1 pcs |
8 | Reducing valve (with pressure gauge) | AR2000 | 1 pcs |
9 | 5/2 Handle shuttle valve | 4H210-08 | 1 pcs |
10 | 5/2 Single solenoid shuttle valve | 4V210-08(DC24V) | 2 pcs |
11 | 5/2 Double solenoid shuttle valve | 4V220-08(DC24V) | 1 pcs |
12 | 5/3 Double solenoid shuttle valve | 4V230-08(DC24V) | 1 pcs |
13 | 5/2 Single pneumatic control | 4A210-08 | 2 pcs |
14 | 5/2 Double pneumatic control | 4A220-08 | 2 pcs |
15 | 2/2 knob valve | MOV-02 | 1 pcs |
16 | 2/2 button valve | MOV-03A | 1 pcs |
17 | “OR” gate shuttle valve | ST-08 | 2 pcs |
18 | Quick exhaust valve | QV-08 | 2 pcs |
19 | One-way throttle valve | KLA-08 | 2 pcs |
20 | One-way throttle valve(install on the cylinder) | JSC601 | 7 pcs |
21 | One-way valve | 1/4 | 2 pcs |
22 | Sequence valve | Designed and made | 2 pcs |
23 | Air capacitor | Designed and made | 1 pcs |
24 | Six-way valve | Designed and made | 2 pcs |
25 | Magnetic switch | Designed and made | 4 pcs |
26 | Tools | 1 set | |
27 | Accessories | 1 set |
Hydraulic
No. | Name | Specs | QTY |
1 | Experimental bench | 1 pcs | |
2 | PLC control units and accessories | MITSUBISHI FX1S-20MR | 1 set |
3 | Drag motor and speed controller | 400W, 1500rpm | 1 set |
4 | Gear oil pump | 10L/min, 0-1.6Mpa | 1 pcs |
5 | Fuel tank | 1 pcs | |
6 | Auxiliary fuel tank | 1 pcs | |
7 | Cylinder stopper plate | 2 pcs | |
8 | Cylinder(with stroke collision block) | 2 pcs | |
9 | Spring return cylinder | 1 pcs | |
10 | Pressurized cylinder | 1 pcs | |
11 | Check Valves | 2 pcs | |
12 | Pilot Operated Check Valves | 2 pcs | |
13 | Overflow valve | 2 pcs | |
14 | The throttle valve | 1 pcs | |
15 | Speed control valve | 2 pcs | |
16 | Sequence valve | 2 pcs | |
17 | Pressure reducing valve | 1 pcs | |
18 | 2/2 solenoid valve | 1 pcs | |
19 | 4/2 solenoid valve | 2 pcs | |
20 | 4/3 solenoid valve | 1 pcs | |
21 | 4/3-way solenoid valve | 1 pcs | |
22 | 4/3 solenoid valve | 1 pcs | |
23 | Manual reversing valve | 1 pcs | |
24 | Pressure relay | 1 pcs | |
25 | Limit switch(normally closed) | 2 pcs | |
26 | Limit switch(normally open) | 2 pcs | |
27 | Pressure gauge | 3 pcs | |
28 | Three way | 2 pcs | |
29 | Four way | 2 pcs | |
30 | Tools | 1 set | |
31 | Accessories | 1 set |
Training courses
Pneumatic:
- The reversing loop of single acting cylinder
- The reversing loop of double acting cylinder
- Single acting cylinder speed control loop
- Single phase speed control loop of double acting cylinder
- Double acting cylinder speed control loop
- Speed switching loop
- Buffer loop
- Secondary pressure control loop
- Counting loop
- Delay loop
- Interlocking loop
- Single cylinder and single reciprocating control loop
- Single cylinder continuous reciprocating action loop
- Sequential action loop of a straight cylinder and a rotating cylinder
- Multi cylinder sequential working loop
- Double cylinder synchronous action loop
- Four cylinder linkage loop
- Unloading loop
- The application loop of the “OR” gate shuttle valve
- The application loop of the fast exhaust valve
- High and low voltage switch over control loop
- Overloading protection loop
Hydraulic:
- The reversing loop by using reversing valve
- The locking loop by using “O” functional reversing valve
- The locking loop by using hydraulic controlled one-way valve
- Pressure setting loop
- Two stage pressure loop
- Reducing loop by using reducing valve
- Boost loop by using pressure cylinder
- Unloading loop by using reversing valve
- The oil inlet throttling speed regulating loop
- The oil return throttling speed regulating loop
- The variable pump speed regulating loop
- Compound speed regulating loop with gear pump and speed regulating valve
- Speed transition circuit with short connected flow valve
- Two times feed loop in series of speed regulating valve
- Two times loop parallel to the speed regulating valve
- Sequent circuit by using sequence valve
- Sequent circuit by using pressure relay
- Sequent circuit by using electrical stroke switch
- Sequent circuit by using motion valve
