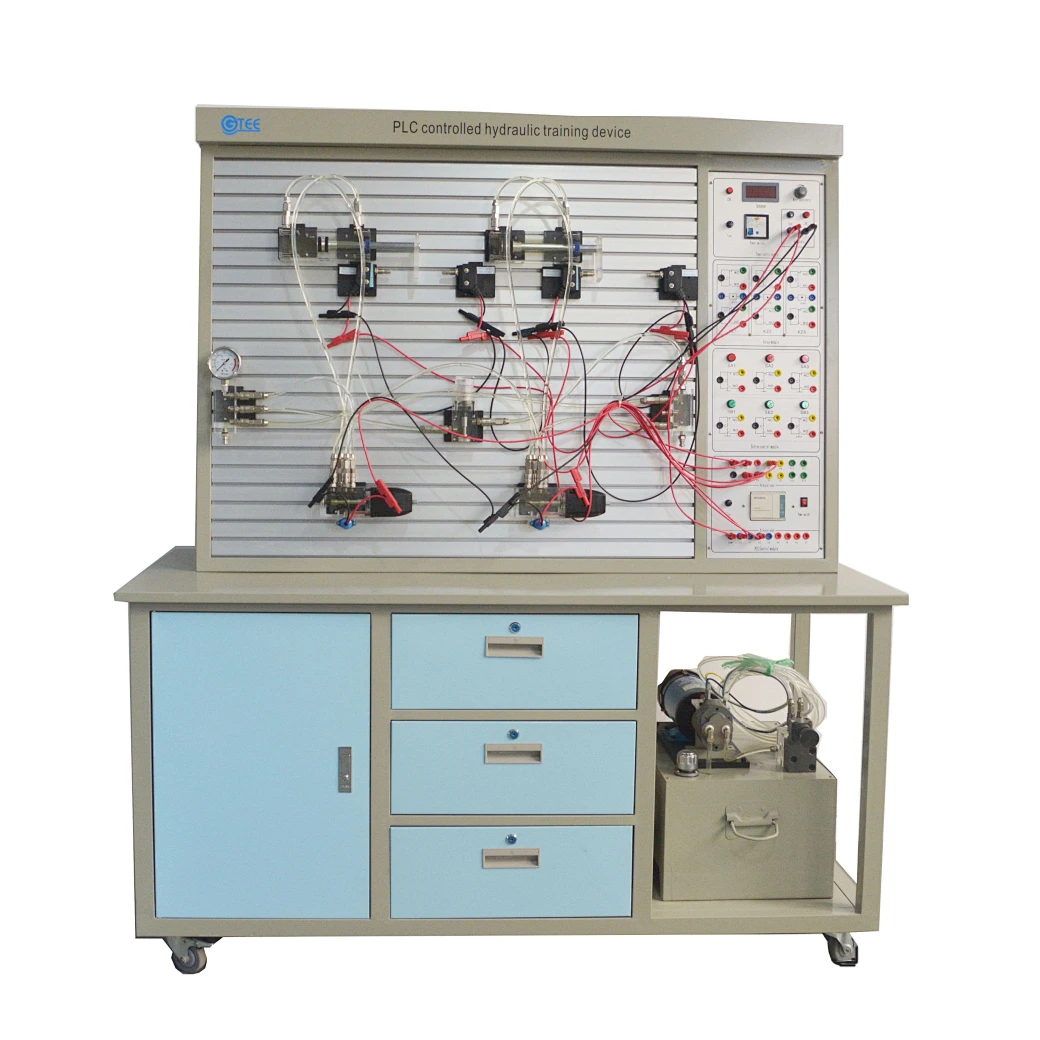

PLC controlled hydraulic training device
GTHT-0001
Technical parameter
Dimension: 1500mm × 650mm × 1710mm
Power supply: Single phase AC220V, 50Hz
Weight: about 200kg
Dimension: 1500mm × 650mm × 1710mm
Power supply: Single phase AC220V, 50Hz
Weight: about 200kg
Delivery
EXW
minimum order
1 set
Supply Ability
30set / Month
Country of Origin
Guangzhou,China
Stock Time
45Day
Quantity
This plc controlled hydraulic trainer educational equipment is designed and made based on the universal content about “Hydraulic transmission”, “Hydraulic control technology”. Students can get more accurate, in-depth understanding of the structure of hydraulic components, hydraulic control loop theory and design methods through operation on the plc controlled hydraulic trainer. The educational equipment plc controlled hydraulic trainer uses transparent hydraulic components for easy understanding of the work principle of the hydraulic system.The educational equipment hydraulic trainer is also suitable for the teaching and skills training of related majors in higher vocational colleges and secondary vocational colleges. At the same time, the educational equipment can also be used as an assessment device for skill training and skill appraisal in technical schools, vocational education centers, and vocational qualification appraisal stations.
Technical parameter
Dimension: 1500mm × 650mm × 1710mm
Power supply: Single phase AC220V, 50Hz
Weight: about 200kg
Product composition
No. | Name | Specs | QTY |
1 | Experimental bench | 1 pcs | |
2 | PLC control units and accessories | MITSUBISHI FX1S-20MR | 1 set |
3 | Drag motor and speed controller | 400W, 1500rpm | 1 set |
4 | Gear oil pump | 10L/min, 0-1.6Mpa | 1 pcs |
5 | Fuel tank | 1 pcs | |
6 | Auxiliary fuel tank | 1 pcs | |
7 | Cylinder stopper plate | 2 pcs | |
8 | Cylinder(with stroke collision block) | 2 pcs | |
9 | Spring return cylinder | 1 pcs | |
10 | Pressurized cylinder | 1 pcs | |
11 | Check Valves | 2 pcs | |
12 | Pilot Operated Check Valves | 2 pcs | |
13 | Overflow valve | 2 pcs | |
14 | The throttle valve | 1 pcs | |
15 | Speed control valve | 2 pcs | |
16 | Sequence valve | 2 pcs | |
17 | Pressure reducing valve | 1 pcs | |
18 | 2/2 solenoid valve | 1 pcs | |
19 | 4/2 solenoid valve | 2 pcs | |
20 | 4/3 solenoid valve | 1 pcs | |
21 | 4/3-way solenoid valve | 1 pcs | |
22 | 4/3 solenoid valve | 1 pcs | |
23 | Manual reversing valve | 1 pcs | |
24 | Pressure relay | 1 pcs | |
25 | Limit switch(normally closed) | 2 pcs | |
26 | Limit switch(normally open) | 2 pcs | |
27 | Pressure gauge | 3 pcs | |
28 | Three way | 2 pcs | |
29 | Four way | 2 pcs | |
30 | Tools | 1 set | |
31 | Accessories | 1 set |
Training courses
1. The reversing loop by using reversing valve
2. The locking loop by using “O” functional reversing valve
3. The locking loop by using hydraulic controlled one-way valve
4. Pressure setting loop
5. Two stage pressure loop
6. Reducing loop by using reducing valve
7. Boost loop by using pressure cylinder
8. Unloading loop by using reversing valve
9. The oil inlet throttling speed regulating loop
10. The oil return throttling speed regulating loop
11. The variable pump speed regulating loop
12. Compound speed regulating loop with gear pump and speed regulating valve
13. Speed transition circuit with short connected flow valve
14. Two times feed loop in series of speed regulating valve
15. Two times loop parallel to the speed regulating valve
16. Sequent circuit by using sequence valve
17. Sequent circuit by using pressure relay
18. Sequent circuit by using electrical stroke switch
19. Sequent circuit by using motion valve
