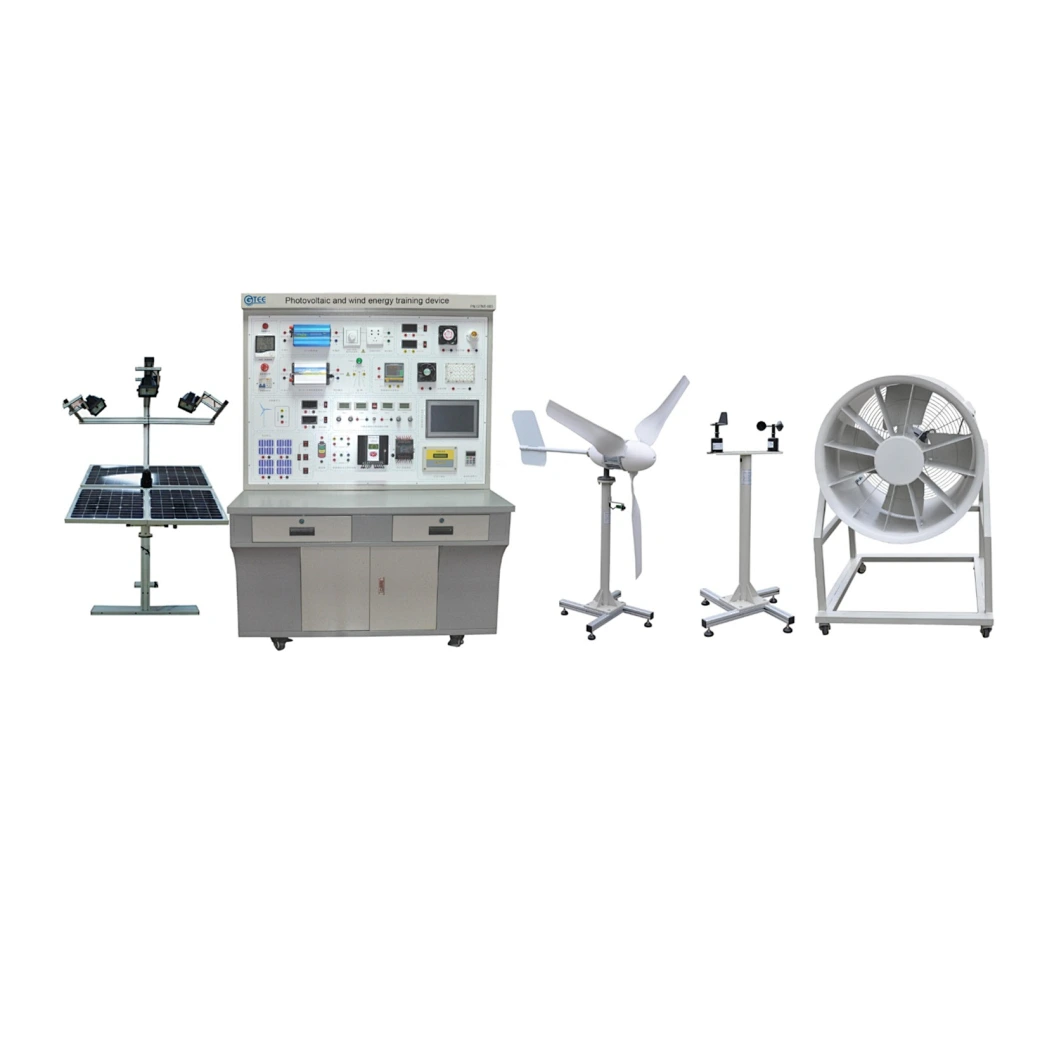

Photovoltaic and wind energy training device
GTNT-005
Technical parameter
Power supply: Three phase, AC380V±10%, 50HZ;
Temperature: -10°C～+40°C
Dimensions (l × w × h): work bench: 1500* 700 ×1800mm;
Solar and wind generator frame: 2500*1500*1900mm
Weight: About 350kg
Power supply: Three phase, AC380V±10%, 50HZ;
Temperature: -10°C～+40°C
Dimensions (l × w × h): work bench: 1500* 700 ×1800mm;
Solar and wind generator frame: 2500*1500*1900mm
Weight: About 350kg
Delivery
EXW
minimum order
1 set
Supply Ability
30set / Month
Country of Origin
Guangzhou,China
Stock Time
45Day
Quantity
This vocational training equipment photovoltaic and wind energy training device adopts 4 sets 100W monocrystalline silicon solar cell panel (54cm*100cm) and 220V, 1000W solar simulation light to simulate light source, and 2.2kw blower and 400we wind power generator for the training basis. The vocational training equipment photovoltaic and wind energy training device adopts dual system charge and discharge controller with multiple working modes and perfect protection functions, which is ideal training device for solar and wind power generating training.The vocational training equipment photovoltaic and wind energy training device is suitable for the teaching needs of the theory and maintenance training of electric vehicle power steering system and front suspension system in vocational and technical schools, colleges and universities, training institutions.
Technical parameter
Power supply: Three phase, AC380V±10%, 50HZ;
Temperature: -10°C～+40°C
Dimensions (l × w × h): work bench: 1500* 700 ×1800mm;
Solar and wind generator frame: 2500*1500*1900mm
Weight: About 350kg
Product composition
Training bench 1500*700*1800mm
Solar panel 4 sets: DC18V Power:100w, Size:670*820mm
Simulated light source: Power: 1000w, 220VAC
Controller : 12V/24V，10A
Blower: 380VAC, 2.2kw
Wind power generator: 400w，12VDC
Inverter: 380VAC, 4kw
Battery: 12V/65AH
Measuring device: Ammeter, Voltmeter, Wattmeter;
Equipped with USB interface and PC data processing software.
Training courses:
Part 1: Solar energy
1. Energy conversion experiment of solar photovoltaic panels
2. The influence of environment on PV transformation
3. Direct load characteristic test of solar cell photovoltaic system
4. Working principle experiment and protection measures of solar controller
5. Experiment on overcharging protection of solar cells
6. Experiment on battery discharge protection of solar controller
Part 2: Wind energy
1. The principle of wind power generator
2. The influence of environment on wind power generator
3. Simulation experiment of wind power generation
4. Wind power related measurement technology experiment
5. Wind power generation control technology experiment
6. Direct load test of wind power generation system
7. Wind speed change influence experiment of wind power generation system
Part 3: Comprehensive experiment
1. Operation principle experiment and protection measures of off net Inverters
2. The application of AC load and DC load
3. Single chip computer programming experiment
