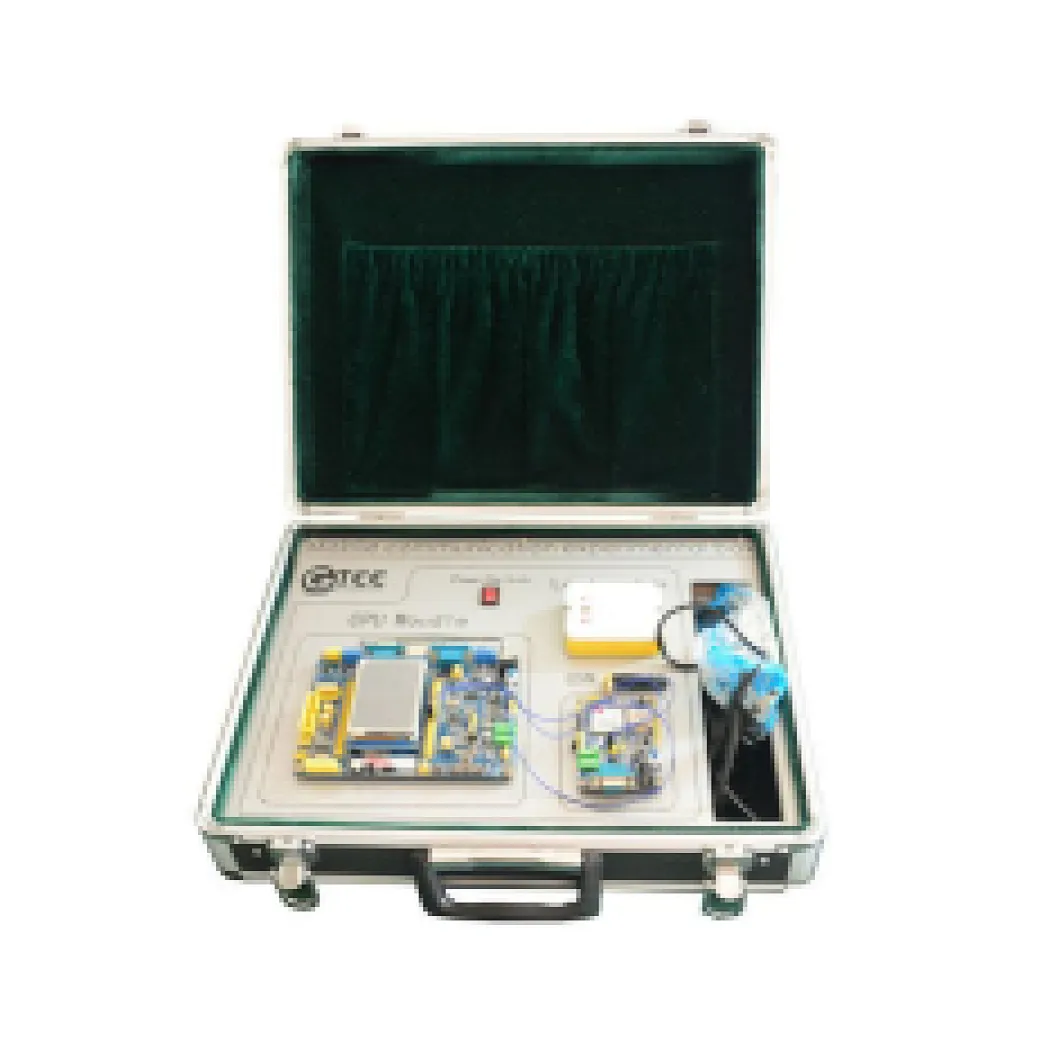

Mobile communication training system
GTCT-012
Technical parameter
1. Dimension: About 420mm × 330mm × 120mm
2. Working power: 230V AC
3. Output power : +5 to +33db, 3.2 min to 2w
4. Weight(trainer): About 5kg
5. Cellular system: GSM receive
6. Frequency bank: 935 to 960 MHZ
7. Mains housing (trainer): It is housed in an elegant cabinet.
8. Accessories: loud speaker box, connection strip (mobile connector cable), mobile hand set, charger cord.
1. Dimension: About 420mm × 330mm × 120mm
2. Working power: 230V AC
3. Output power : +5 to +33db, 3.2 min to 2w
4. Weight(trainer): About 5kg
5. Cellular system: GSM receive
6. Frequency bank: 935 to 960 MHZ
7. Mains housing (trainer): It is housed in an elegant cabinet.
8. Accessories: loud speaker box, connection strip (mobile connector cable), mobile hand set, charger cord.
Delivery
EXW
minimum order
10 sets
Supply Ability
30sets / Month
Country of Origin
Guangzhou,China
Stock Time
45Day
Quantity
This educational training equipment mobile communication training kit can be used to learn the basic knowledge, and other knowledge and skills of electrical machines.The educational training equipment mobile communication training kit is also suitable for the teaching and skills training of related majors in higher vocational colleges and secondary vocational colleges. At the same time, the educational training equipment mobile communication training kit can also be used as an assessment device for skill training and skill appraisal in technical schools, vocational education centers, and vocational qualification appraisal stations. The educational training equipment communication training kit is suitable for the teaching needs of the theory training of electronics communication system in vocational and technical schools, colleges and universities, training institutions.
Technical parameter
- Dimension: About 420mm × 330mm × 120mm
- Working power: 230V AC
- Output power : +5 to +33db, 3.2 min to 2w
- Weight(trainer): About 5kg
- Cellular system: GSM receive
- Frequency bank: 935 to 960 MHZ
- Mains housing (trainer): It is housed in an elegant cabinet.
- Accessories: loud speaker box, connection strip (mobile connector cable), mobile hand set, charger cord.
Product composition
No. | Item | QTY |
1 | Power switch (AC 220V input) | 1 pcs |
2 | Audio amplifier circuits | 1 pcs |
3 | CPU module | 1 pcs |
4 | GSM SIMM900A module | 1 pcs |
Other standard accessories also contain the following items: | ||
5.1 | USB Download Dataline | 1 pcs |
5.2 | 232 communication data line | 1 F-M |
5.3 | Earphone microphone | 1 pcs |
5.4 | Infrared remote control | 1 pcs |
5.5 | The wireless communication module | 1 pcs |
5.6 | 2.8-inch color screen | 1 pcs |
5.7 | Touch screen pen | 1 pcs |
5.8 | Wire | Several |
5.9 | GSM receiving antenna | 1 pcs |
Basic experiments
1. Preparations
2. AT instruction exercise experiment
3. Make / receive phone call experiment
4. Read and send text messages experiment
5. GPRS communication training
6. SIM900 (A) Module Upgrade Notes
7. DTMF module decoding instruction
