Logic circuit training kit
GTET-SEM
Technical parameter
Dimension: About 500mm × 380mm × 160mm
Working power: Single phase, AC 220V±10%, 50Hz
Weight: About 5kg
Dimension: About 500mm × 380mm × 160mm
Working power: Single phase, AC 220V±10%, 50Hz
Weight: About 5kg
Delivery
EXW
minimum order
10 sets
Supply Ability
30sets / Month
Country of Origin
Guangzhou,China
Stock Time
45Day
Quantity

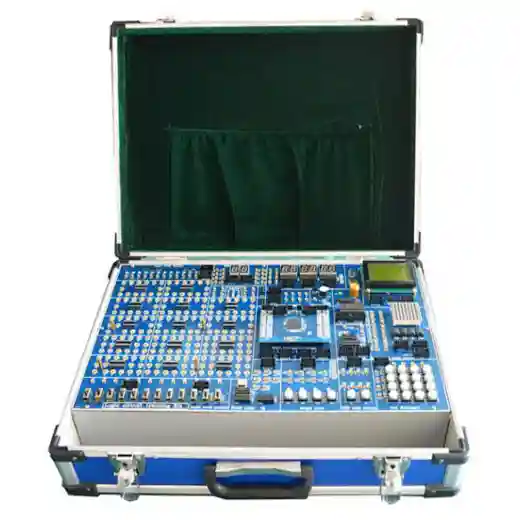

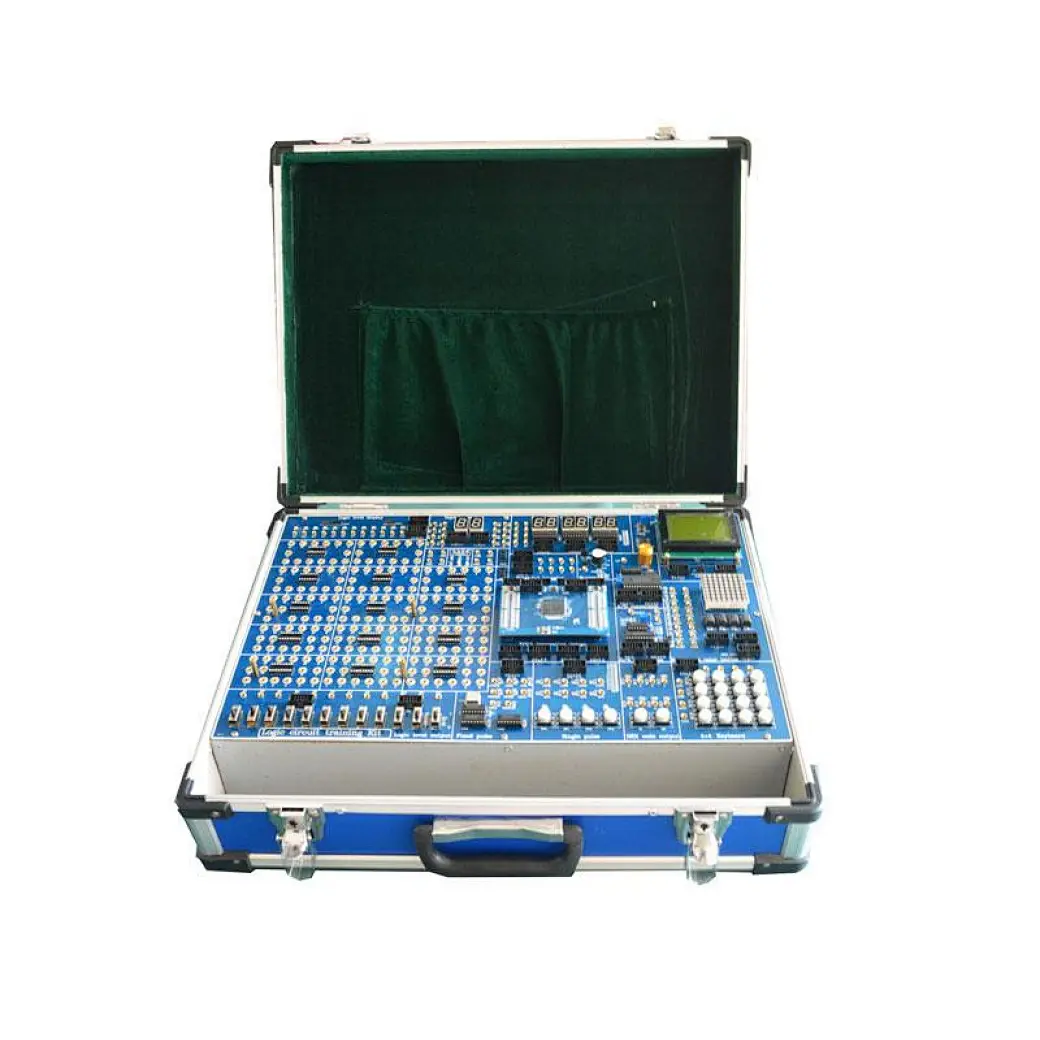

This electronic trainer kit logic circuit training kit educational equipment is a comprehensive electronic design platform for electronic system design and teaching. The educational equipment electronic trainer kit can carry out multi type experiment and the logic circuit training kit is suitable for electronic technology logic circuit training kit research and development in the vocational and technical school and universities. The educational equipment is also suitable for the teaching and skills training of related majors in higher vocational colleges and secondary vocational colleges. At the same time, the electronic trainer kit can also be used as an assessment device for skill training and skill appraisal in technical schools, vocational education centers, and vocational qualification appraisal stations.
Technical parameter
Dimension: About 500mm × 380mm × 160mm
Working power: Single phase, AC 220V±10%, 50Hz
Weight: About 5kg
Product composition
No. | Name | Specs | QTY |
1 | 7 channel fixed frequency pulse sources | 1HZ,10HZ,100HZ,1KHZ,10KHZ,100KHZ,1MHZ | 1PCS |
2 | Digital frequency meter | 0~300KHZ | 1PCS |
3 | Two single pulse | Positive and negative pulses, pulse amplitude is TTL level | 1PCS |
4 | Quad (T1, T2, T3, T4) and start and stop timing generator circuit. | 1PCS | |
5 | Logic level input and display | 1PCS | |
6 | Sixteen digital independent logic level switch | output"0","1"level (positive logic) | 1PCS |
7 | Sixteen digital logic level display circuit driven by the LED driver circuit | 1PCS | |
8 | 6 digital consisted of eight digital LED tube BCD decoder display | 1PCS | |
9 | IC socket | 40P×1pcs, 20P×2pcs, 16P×1pcs, 14P×4pc | 1SET |
10 | Potentiometer | 2PCS |
Training courses
1. TTL integrated logic gates parametric tests
2. CMOS integrated logic gates tests
3. Logic gate circuit experiment
4. Commonly used combinational logic device function tests
5. Data Selector and its applications
6. Blood relations and voting circuit detection circuit
7. RS trigger function test
8. JK trigger logic functions and the main parameters test
9. Functional testing of the shift register
10. Decimal counter (CMOS)
11. Asynchronous Counter
12. Synchronous counter
13. Counting, decoding, display circuit experiment
13. Counting, decoding, display circuit experiment
14. 555 integrated timer and its application
15. Sequence Detector
16. Digital - analog converter
17. Following comparison type A / D converter circuit
18. Manually controlled traffic light controller
19. Taillights control circuit
20. Digital clock circuit design
21. Timing circuit testing and research
22. Waveform generator and one-shot
23. A / D converter circuit
24. D / A converter circuit
25. EDA device development and design experiments
