Hybrid engine trainer
GTAT-1004
Technical parameter
1. Dimensions: 1500 × 1000 × 1800mm;
2. Work voltage: DC12V
1. Dimensions: 1500 × 1000 × 1800mm;
2. Work voltage: DC12V
Delivery
EXW
minimum order
1 set
Supply Ability
30set / Month
Country of Origin
Guangzhou,China
Stock Time
45Day
Quantity

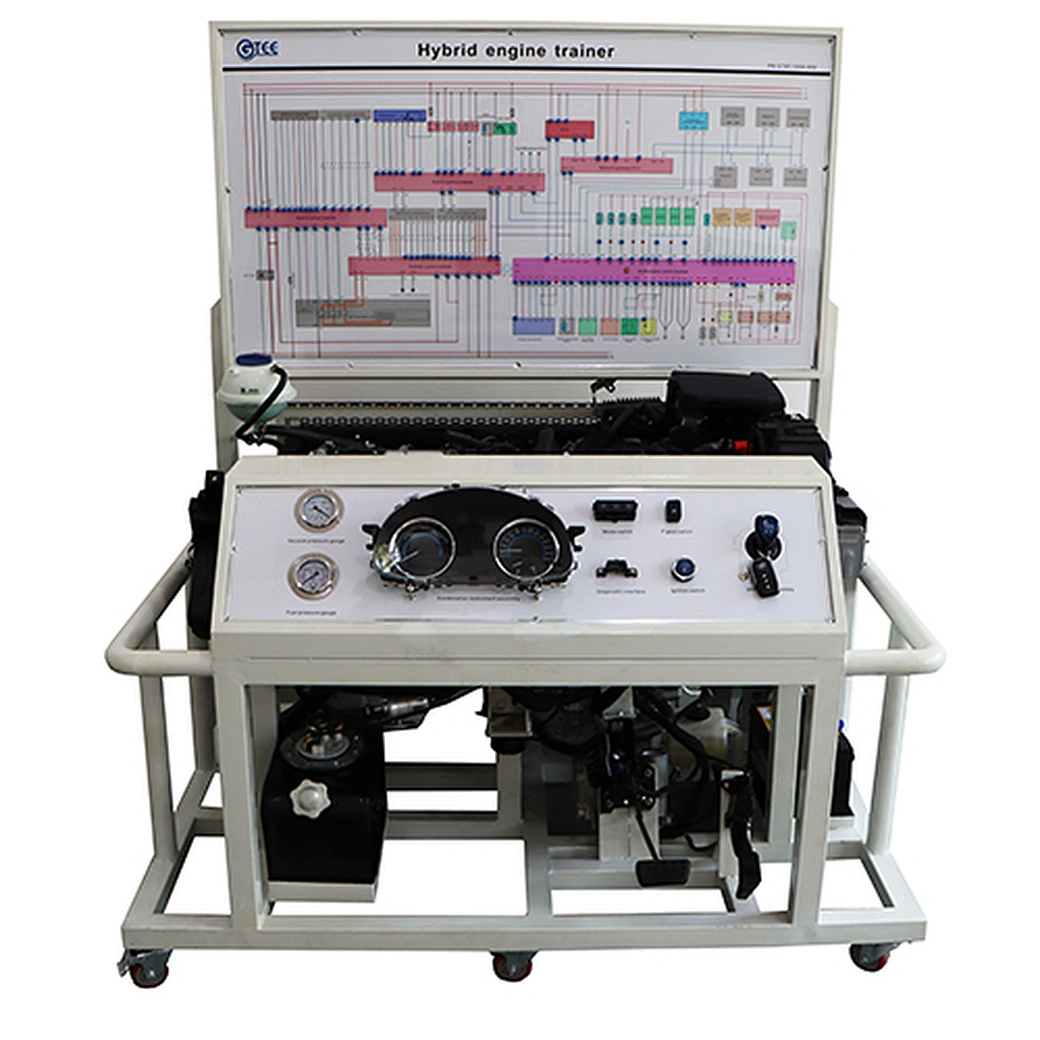

The automotive teaching equipment hybrid engine trainer displays the basic principles and structures of hybrid engine(oil-electric), and simulates its operation.
Technical parameter
1. Dimensions: 1500 × 1000 × 1800mm;
2. Work voltage: DC12V
Product composition
No. | Name | QTY |
1 | Test panel | 1 set |
2 | Dashboard | 1 set |
3 | Engine ECU | 1 set |
4 | Automatic transmission ECU | 1 set |
5 | Hybrid control ECU | 1 set |
6 | High voltage battery control ECU | 1 set |
7 | Power control ECU | 1 set |
8 | Anti theft control ECU | 1 set |
9 | Air conditioner control ECU | 1 set |
10 | Gateway ECU | 1 set |
11 | Diagnostic seat | 1 set |
12 | Smart key | 1 pcs |
13 | High voltage battery | 1 set |
14 | Half axle brake system | 1 set |
15 | Fuel pressure gauge | 1 pcs |
16 | Vacuum pressure gauge | 1 pcs |
17 | Engine assembly | 1 set |
18 | Fuel tank 10L | 1 set |
19 | Accelerator pedal | 1 set |
20 | Radiator and cooling electronic fan | 1 set |
21 | Battery12V 65Ah | 1 set |
22 | Relay | 1 set |
23 | Fuse box | 1 set |
24 | Fault set module | 1 set |
25 | Mobile stand | 1 set |
Main Features:
1.The engine works properly and smoothly, hybrid engine trainer can show the structures and work processes of hybrid gasoline engine;
2.The hybrid engine trainer can clearly show the working process of the gasoline engine and three-phase AC motor.
3.The test panel is printed with complete electrical control system schematics and mounted with test terminals, the signal parameters such as voltage, resistance, frequency, etc. of the sensors and actuators can be tested by multimeter or oscilloscope.
4.The automotive teaching equipment hybrid engine trainer is equipped with diagnosis seat, the automotive teaching equipment can be connected to scanner to read or clear fault codes, and read data stream and can be used for other engine self-diagnosis function.
5.The automotive teaching equipment hybrid engine trainer is equipped with fault setting module: manual fault set module.
Training courses
1. Function introduction of main components of hybrid engine;
2. Demonstration of hybrid engine running, starting, accelerating etc;
3. Measurement of the signals of the sensors and actuators by multimeter or oscilloscope;
4. Read fault code, data stream and remove faults through the scanner;
5. Fault set and troubleshooting.
Suitable car or engine models listed below:
P.N. | Car model |
GTAT-1004-001 | Renewed Toyota Corolla hybrid engine |
GTAT-1004-002 | Renewed Toyota Camry hybrid engine |
