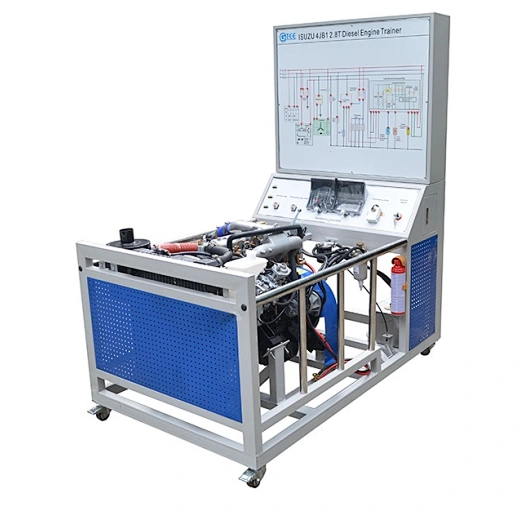

Electronically controlled diesel engine trainer
GTAT-1002
Technical parameter
1. Dimension: 1500x1000x1800mm
2. Working temperature: -40℃~50℃
1. Dimension: 1500x1000x1800mm
2. Working temperature: -40℃~50℃
Delivery
EXW
minimum order
1 set
Supply Ability
30set / Month
Country of Origin
Guangzhou,China
Stock Time
45Day
Quantity
The automotive training equipment electronically controlled diesel engine training model displays the basic principles and structures of electronically controlled diesel engine, and simulates its operation. This electronically controlled diesel engine training model automotive training equipment can be used to learn the basic knowledge, inspection work and other knowledge and skills of electrically controlled gasoline engine. The automotive training equipment engine training model is also suitable for the teaching and skills training of electronically controlled diesel engine in higher vocational colleges and secondary vocational colleges. At the same time, automotive training equipment engine training model can also be used as an educational equipment for skill training and skill appraisal in technical schools, vocational education centers, and vocational qualification appraisal stations.
Technical parameter
1. Dimension: 1500x1000x1800mm
2. Working temperature: -40℃~50℃
Product composition
Diesel engine assembly | 1PCS |
ECU | 1PCS |
Dashboard | 1PCS |
Fault insert module | 1PCS |
Battery | 1PCS |
Test panel with circuit schematic | 1PCS |
OBD diagnostics seat | 1PCS |
Accessories for starting engine | 1PCS |
Mobile stand | 1PCS |
Main Features
1. This trainer can simulate normal engine operation, ie. starting, idling, acceleration, deceleration, fault detection and diagnosis, fault simulation, etc.
2. Equipped with fault simulation systems can simulate multiple failures in the real engine.
3. Equipped with voltmeter to show the real-time change of the sensors and actuators
4. Equipped with LED light to simulate the status of the injecting system.
5. Equipped with diagnosis seat which can use a scanner to read the fault codes and data flow of the engine control system through the diagnosis seat.
6. The training panel is printed with the color circuit schematics which makes the students can understand and analyzing the engine control system directly.
7. There are test terminals mounted on the training panel, electrical signal, such as the resistance, voltage, current, frequency, waveform of the sensors, actuators can be measured by multimeter or oscilloscope through the test terminals.
8. Equipped with power switch, tank guard, flywheel and other rotating parts shields to protect the students and teachers.
9. Equipped with fault setting module: manual fault set module.
Training courses
1. Function introduction of main components of electronically controlled diesel engine;
2. Demonstration of engine running, starting, accelerating etc;
3. Measurement of the signals of the sensors and actuators by multimeter or oscilloscope;
4. Read fault code, data stream and remove faults through the scanner;
5. Fault set and troubleshooting.
Suitable car or engine models listed below:
P.N. | Car model |
GTAT-1002-001 | Bora TDI |
GTAT-1002-002 | Great wall 2.8TC (High pressure common rail) |
GTAT-1002-002A | Great wall 4D20 CRDI diesel engine 2.0 L |
GTAT-1002-003 | Isuzu 2.8TC(High pressure common rail) |
GTAT-1002-004 | Jetta SDI |
