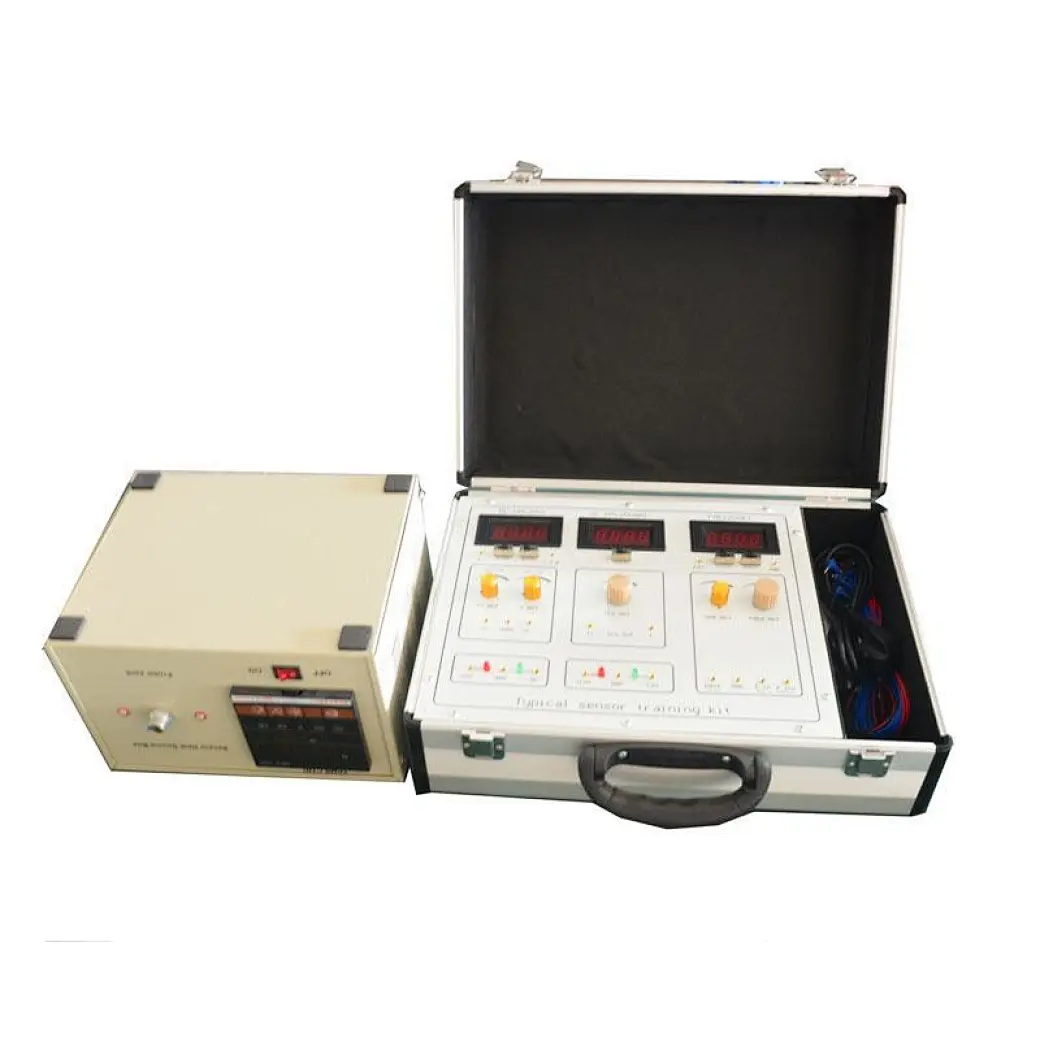

Typical sensor training kit
GTET-CG3
Technical parameter
Dimension: About 500mm × 380mm × 160mm
Power supply: Single phase, AC 220V±10%, 50HZ
Weight: about 5kg
Dimension: About 500mm × 380mm × 160mm
Power supply: Single phase, AC 220V±10%, 50HZ
Weight: about 5kg
Delivery
EXW
minimum order
1 set
Supply Ability
30set / Month
Country of Origin
Guangzhou,China
Stock Time
45Day
Quantity
The educational equipment typical sensor training kit adopts independent sensor modular units and modular design which makes more easily to carry out the relative experiments.This educational equipment typical sensor training kit vocational training equipment can be used to learn the basic knowledge and skills of typical sensors. The vocational training equipment educational equipment is also suitable for the teaching and skills training of related majors in higher vocational colleges and secondary vocational colleges. At the same time, vocational training equipment typical sensor training kit can also be used as an assessment device for skill training and skill appraisal in technical schools, vocational education centers, and vocational qualification appraisal stations.
Technical parameter
Dimension: About 500mm × 380mm × 160mm
Power supply: Single phase, AC 220V±10%, 50HZ
Weight: about 5kg
Product composition
No. | Name | Specs | QTY |
1 | Temperature sensor module include | PN junction, negative thermal sensitive resistors, LM35, platinum resistance, copper resistance, K-type thermocouple, E-type thermocouple | 1SET |
2 | Optical speed sensor module | 1PCS | |
3 | Strain sensor module | 1PCS | |
4 | Differential transformer module | 1PCS | |
5 | Hall sensor module | 1PCS | |
6 | Capacitive sensor module | 1PCS |
Training courses
1. Wheatstone bridge performance test
2. Half-bridge performance test
3. Full-bridge performance test
4. Metal foil strain gauge arm, half-bridge, full-bridge performance comparison
5. Temperature of the metal foil strain gauge the impact of the experiment
6. Full-bridge DC applications - electronic scale experiments
7. Displacement characteristics of capacitive sensor experiments
8. Displacement DC excitation Hall sensor experiment
9. Displacement AC excitation Hall sensor experiment
10. Application of Hall sensors - Current overrun detection alarm
11. Differential transformer displacement characteristics experiment
12. Excitation frequency on the characteristics of the differential transformer
13. Zero residual voltage differential transformer compensation experiment
14. Photoelectric sensor speed circuit experiment
15. Eddy current speed sensor circuit experiment
16. Magnetic speed sensor circuit experiment
17. Hall speed sensor circuit experiment
18. Speed fiber optic sensor circuit experiment
19. Displacement characteristics of optical fiber sensors experiment
20. PN junction temperature sensor temperature characteristic experiment
21. Negative thermal sensitive resistance temperature characteristic experiment
22. Integrated temperature sensor LM35 temperature characteristic experiment
23. Platinum resistance temperature characteristic experiment
24. Copper resistance temperature characteristic experiment
25. K-type thermocouple experiment
26. E-type thermocouple experiment
27. Measurements Enlarge experiment
