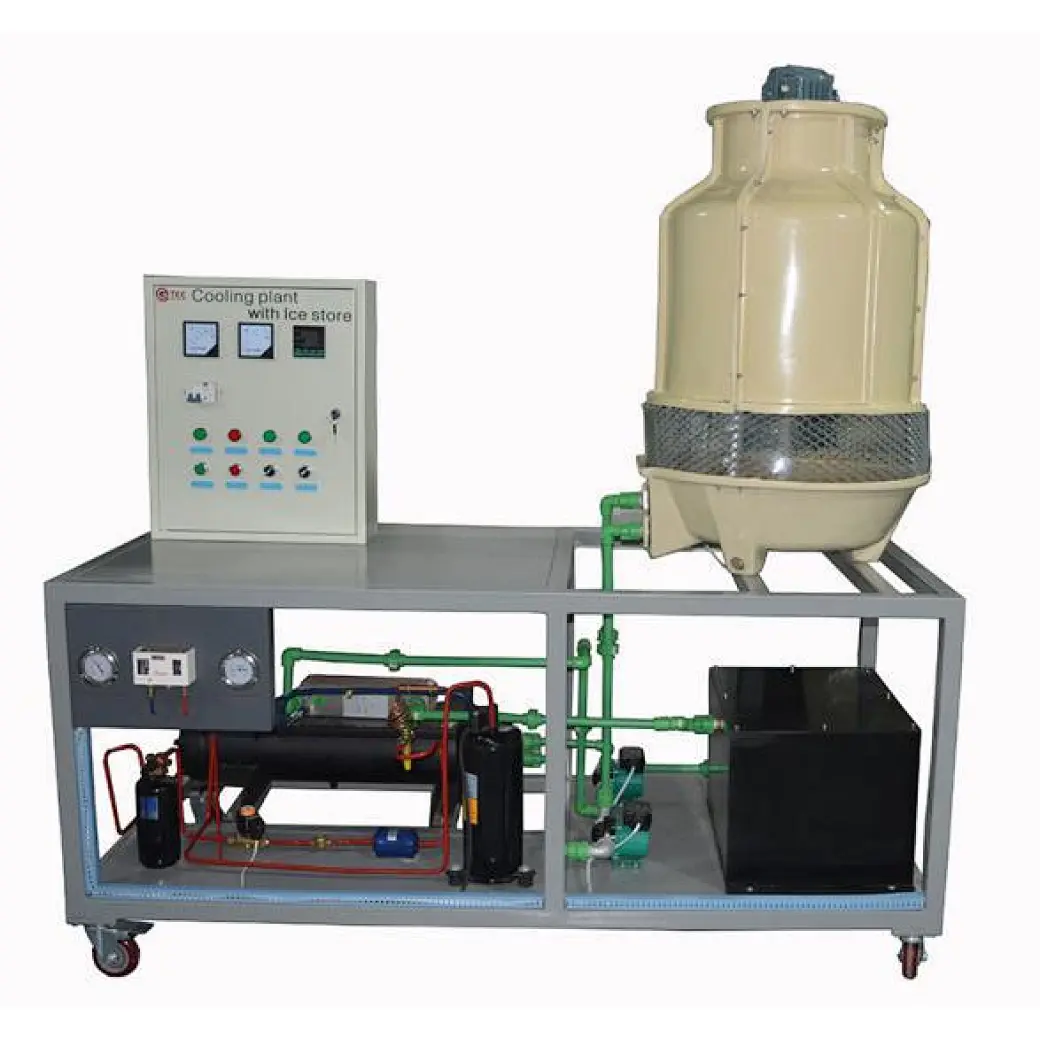

Cooling plant with ice store
GTRT-0016
Technical parameter
Dimension (Wet cooling tower): 2060×635×1850mm
Dimension (Dry cooler): About 710mm x 600mm x 550mm
Power supply: Three phase, AC380V/50Hz
Refrigerant: R134a, CFC-free
Weight: About 300kg
Dimension (Wet cooling tower): 2060×635×1850mm
Dimension (Dry cooler): About 710mm x 600mm x 550mm
Power supply: Three phase, AC380V/50Hz
Refrigerant: R134a, CFC-free
Weight: About 300kg
Delivery
EXW
minimum order
1 set
Supply Ability
30set / Month
Country of Origin
Guangzhou,China
Stock Time
45Day
Quantity
This educational equipment device cooling plant system with ice store can be used as teaching and training equipment to train students to master the theoretical knowledge and practice skills of the cooling plant with ice store. This teaching and training equipment cooling plant system with ice store educational equipment can be used to learn the basic knowledge and other knowledge and skills of cooling plant system. The educational equipment teaching and training equipment is also suitable for the teaching and skills training of related majors in higher vocational colleges and secondary vocational colleges. Meanwhile, the teaching and training equipment cooling plant system with ice store can also be used as a educational equipment for skill training and skill appraisal in technical schools, vocational education centers, and vocational qualification appraisal stations.
Technical parameter
Dimension (Wet cooling tower): 2060×635×1850mm
Dimension (Dry cooler): About 710mm x 600mm x 550mm
Power supply: Three phase, AC380V/50Hz
Refrigerant: R134a, CFC-free
Weight: About 300kg
Product composition
No. | Name | Specs | QTY |
1 | Condensing unit | Power consumption: 1880W, refrigerating capacity: 1719Wat-15/32℃ | 1 pcs |
2 | Plate heat exchanger as evaporator | Capacity: 1.7kW | 1 pcs |
3 | Cooling tower | Cooling capacity: 12.8kW | 1 pcs |
4 | Dry cooler | Cooling capacity: 3.0kW | 1pcs |
5 | Ice store | 1501tr | 1 set |
6 | Glycol, tank | 28itr | 1 set |
7 | Measuring gauges | Temperature gauge: -20-40℃/ 0-.60℃; pressure gauge: -1-9bar/ -1-24bar; flow meter: Flow rate: R134a: 8-1021tr/h. | 1 set |
Training courses
1. Master the work principle of the cooling plant system with ice store.
2. Understand the main components and its function of cooling plant system with ice store
3 Understand the different circuits of the cooling plant: refrigerant, glycol-water mixture, and water
4. Simulate the different cooling modes the cooling plant with ice store;
