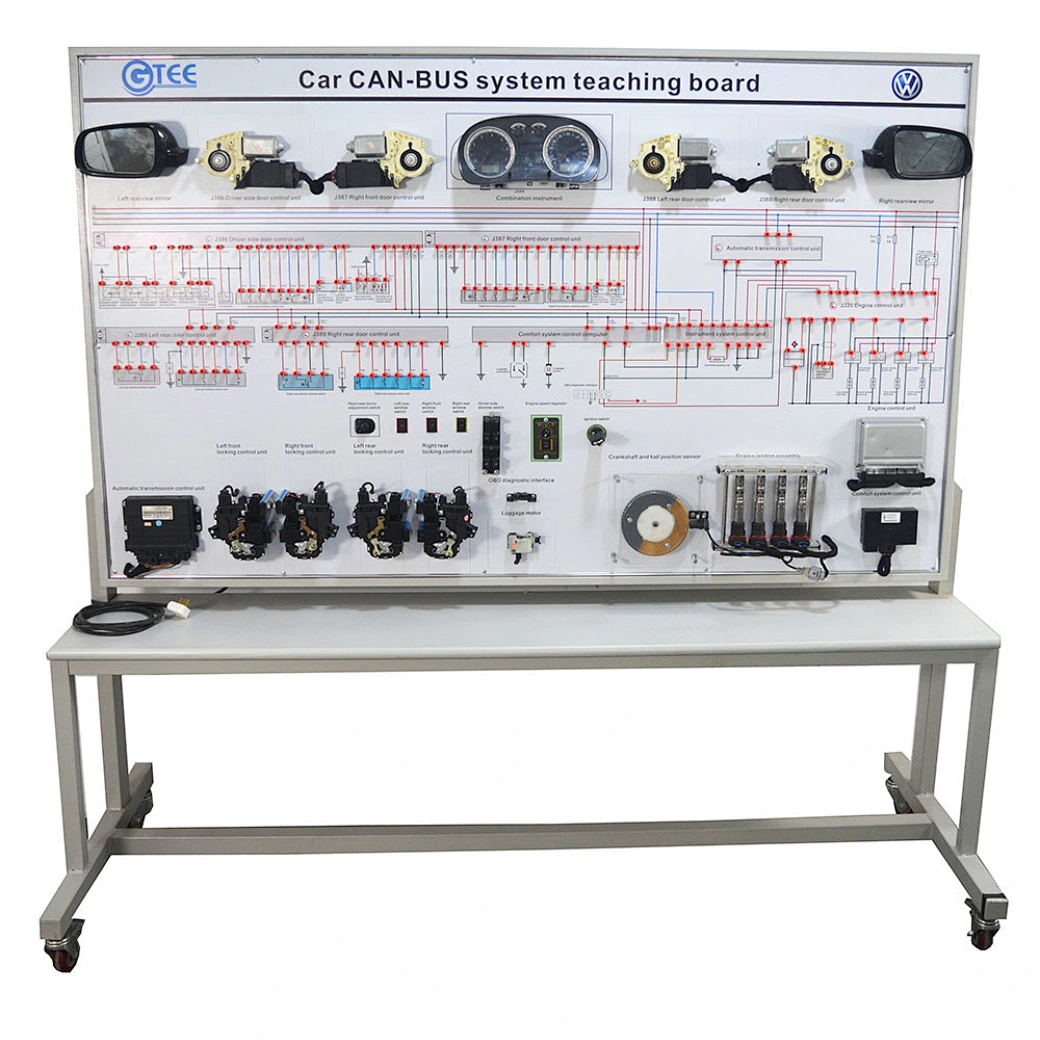

Car CAN-BUS system teaching board

GTAT-4002

Technical parameter
1. Dimensions: about 2000x850x1860mm
2. Power supply: AC220V, 50Hz

Delivery

EXW

minimum order

1 set

Supply Ability

30set / Month

Country of Origin

Guangzhou,China

Stock Time

45Day

Quantity

Contact Now

The automotive teaching board CAN-BUS system automotive training equipment contains related parts of the car engine piping systems and comfort systems.

Main features

1. The automotive teaching board CAN-BUS system automotive training equipment can fully demonstrates the structure of the various systems and the working principle of the CAN-BUS system..

2. The automotive teaching board CAN-BUS system automotive training equipment is equipped with fault setting module: manual fault set module.

3. Diagnostic seat is installed on the panel which can be connected to an auto decoder to read the fault codes, and clear the fault code and reading data stream.

4. The test terminals on the test panel can be used to detect the signals of the related sensors and actuators which make automotive teaching board easily to analyze the fault.

Technical parameter

1. Dimensions: about 2000x850x1860mm

2. Power supply: AC220V, 50Hz

Product composition

Engine control system	1SET
Comfort system ECU	1SET
Window regulator	1SET
CAN wiring harness	1SET
Anti-theft system	1SET
Door locker	1SET
Electric rear mirror system	1SET
Ignition/fuel injection system	1SET
Fault set module	1SET
Mobile stand with test panel	1SET

Training courses

1. Function introduction of main components of each car CAN BUS system;

2. Demonstration of the work principle and process of CAN BUS system;

3. Measurement of the signals of the sensors and actuators by multimeter or oscilloscope;

4. Fault set and troubleshooting

Suitable car or engine models listed below:

P.N.	Car model
GTAT-4002-001	Volkswagen Passat
GTAT-4002-002	Volkswagen Golf
GTAT-4002-003	Audi A6
GTAT-4002-004	Volkswagen Skoda
