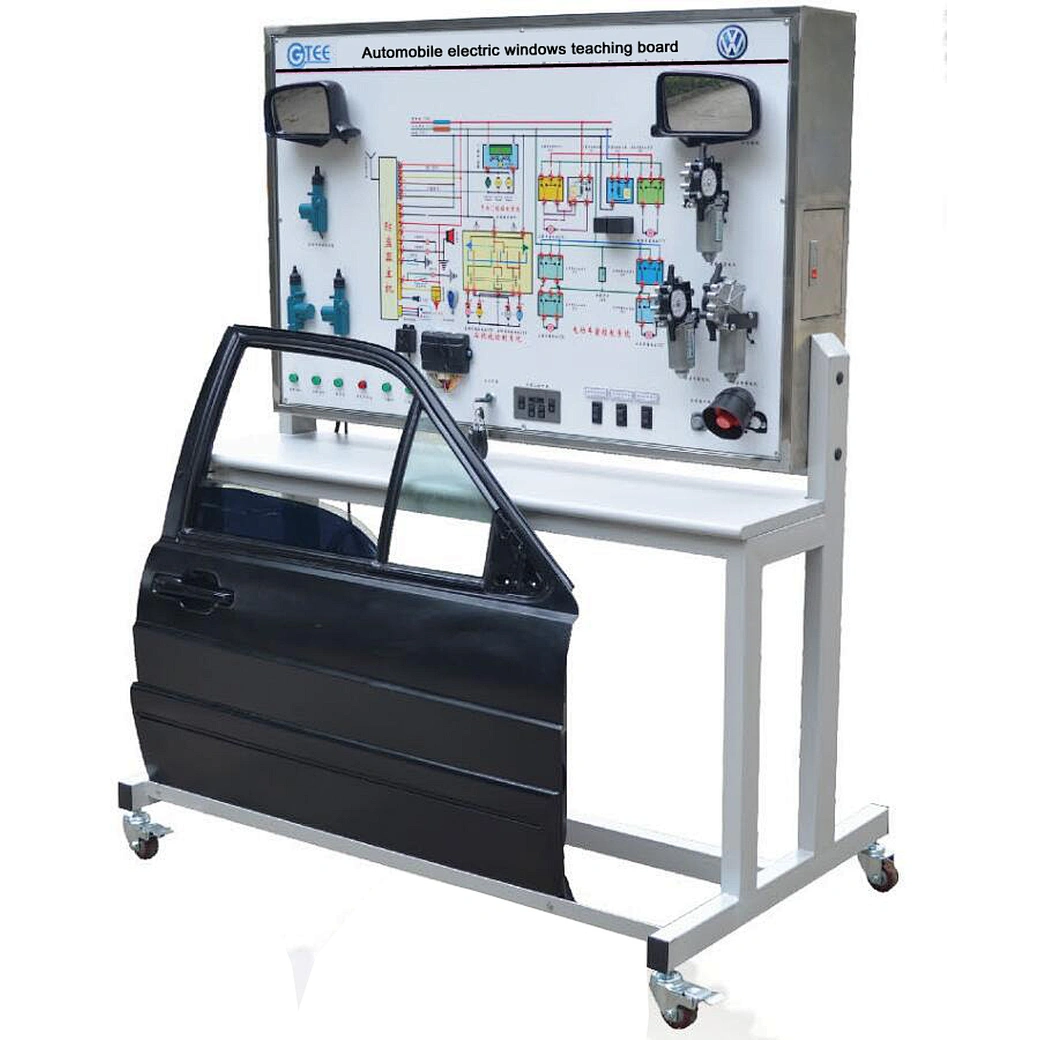

Automobile electric windows teaching board
GTAT-4011
Technical parameter
1. Dimensions: about 1260x850x1890mm.
2. Power supply: AC220, 50Hz.
1. Dimensions: about 1260x850x1890mm.
2. Power supply: AC220, 50Hz.
Delivery
EXW
minimum order
1 set
Supply Ability
30set / Month
Country of Origin
Guangzhou,China
Stock Time
45Day
Quantity
The automobile teaching equipment electric windows teaching board uses real car windows as the base. The automobile teaching equipment electric windows teaching board can fully demonstrate the structure and work process of automotive power window system. The automobile teaching equipment electric windows teaching board is suitable for the teaching needs of the theory and maintenance training of electric windows system in vocational and technical schools, colleges and universities, training institutions.
Technical parameter
1. Dimensions: about 1260x850x1890mm.
2. Power supply: AC220, 50Hz.
Product composition
Power window switch | 1SET |
Power window motors | 1SET |
Power window | 1SET |
Ignition switch | 1PCS |
Fault set module | 1PCS |
Mobile stand with test panel | 1PCS |
Main features
1. The automobile teaching equipment electric windows teaching board is based on the real power window system.
2. The electrical signals such as resistance, voltage, current, frequency, etc of the electrical components can be measured.
3. Fault setting module: manual fault set module.
Training courses
1. Function introduction of main components of power window system;
2. Demonstration of the work principle and process of power window system;
3. Measurement of the signals of the sensors and actuators by multimeter or oscilloscope;
4. Fault set and troubleshooting.
