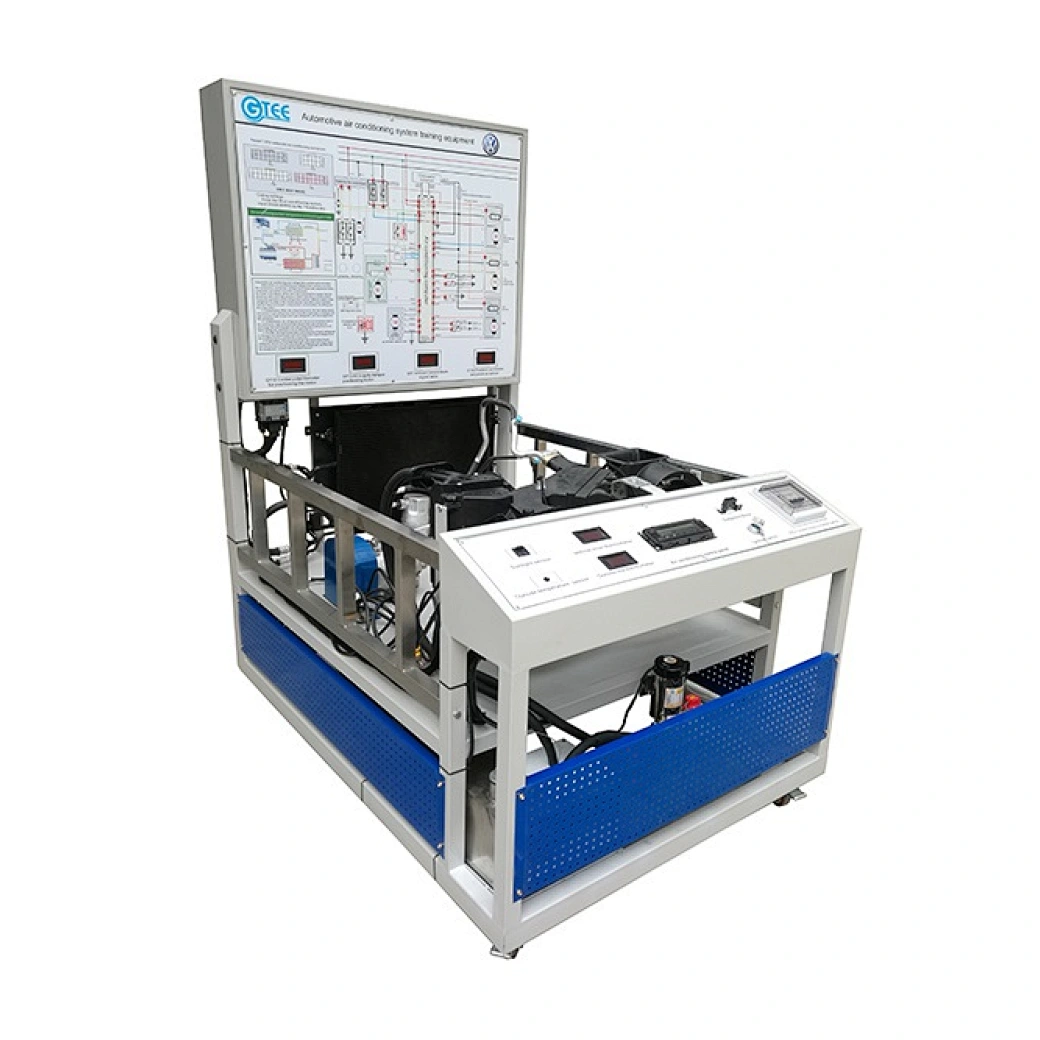

Auto air conditioning trainer
GTAT-2001
Technical parameter
1. Dimensions: about 1000x1600x1800mm
2.Power supply: AC 220V/380V, 50Hz; DC12V
3. Refrigerant: R134a
1. Dimensions: about 1000x1600x1800mm
2.Power supply: AC 220V/380V, 50Hz; DC12V
3. Refrigerant: R134a
Delivery
EXW
minimum order
1 set
Supply Ability
30set / Month
Country of Origin
Guangzhou,China
Stock Time
45Day
Quantity
The automotive training equipment automobile air conditioning teaching equipment adopts original auto air conditioning system and uses motor to simulate the engine drive the air conditioning system. The automotive training equipment automobile air conditioning teaching equipment can really show the structure and working principle of the auto air conditioning system.
Technical parameter
1. Dimensions: about 1000x1600x1800mm
2.Power supply: AC 220V/380V, 50Hz; DC12V
3. Refrigerant: R134a
Product composition
No. | Name | QTY |
1 | Mobile stand with test panel | 1 set |
2 | Ignition switch | 1 pcs |
3 | High/low pressure gauge | 1 set |
4 | Air conditioning controller | 1 set |
5 | Evaporator assembly | 1 set |
6 | Air compressor | 1 pcs |
7 | Expansion valve | 1 pcs |
8 | Dryer | 1 pcs |
9 | Blower | 1 pcs |
10 | Condenser | 1 set |
11 | Drive motor | 1 pcs |
12 | Cooling electronic fan | 1 pcs |
13 | Fault set module | 1 set |
Training courses
1. Function introduction of main components of the auto air conditioning system;
2. Demonstration of the work principle and process of the auto air conditioning system;
3. Measurement of the signals of the sensors and actuators by multimeter or oscilloscope;
4. Practical exercise of vacuum pumping, refrigerant filling, refrigerant leak detection, etc;
5. Fault set and troubleshooting
Suitable car models listed below
P.N. | Car model | P.N. | Car model |
GTAT-2001-001 | Jetta 1.6L(Manual) | GTAT-2001-004 | Passat B5(Automatic) |
GTAT-2001-002 | Santana 2000(Manual) | GTAT-2001-005 | Lexus LS400(Automatic) |
GTAT-2001-003 | Toyota Vios(Manual) | GTAT-2001-006 | Toyota Corolla1.8L(Automatic) |
