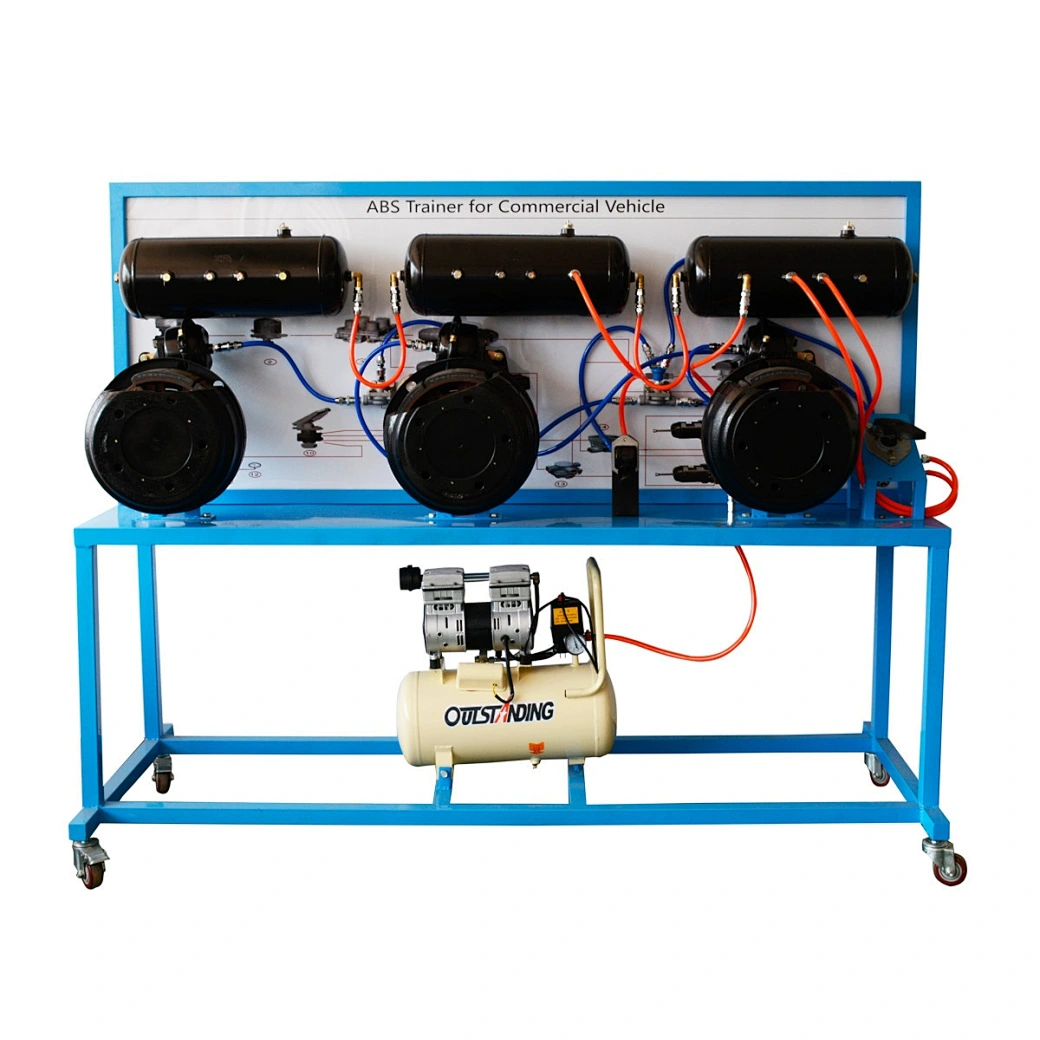

ABS trainer for commercial vehicle
GTAT-2011A
Technical parameter
1. Dimension:2000 (L) x 1300 (W) x 1800 (H) mm approx.
2. External power supply: 220~240 V AC, 50/60 Hz
3. Truck Model: DONGFENG
4. Air compressor: at least 0.75 kw; 0~1000 k Pa
5. Receiver tank capacity: 10~25l.
1. Dimension:2000 (L) x 1300 (W) x 1800 (H) mm approx.
2. External power supply: 220~240 V AC, 50/60 Hz
3. Truck Model: DONGFENG
4. Air compressor: at least 0.75 kw; 0~1000 k Pa
5. Receiver tank capacity: 10~25l.
Delivery
EXW
minimum order
1 set
Supply Ability
30set / Month
Country of Origin
Guangzhou,China
Stock Time
45Day
Quantity
This didactic equipment commercial vehicle ABS trainer provides a comprehensive system whereby students may study and understand the principles, operational theory and maintenance of air brake systems on trucks or large vehicles. Original components are used throughout the commercial vehicle ABS trainer and they feature quick connection couplings with color-coded pneumatic hoses. The didactic equipment commercial vehicle ABS trainer is also suitable for the teaching and skills training of related majors in higher vocational colleges and secondary vocational colleges. At the same time, the didactic equipment can also be used as an ABS trainer for skill training and skill appraisal in technical schools, vocational education centers, and vocational qualification appraisal stations.
Technical parameter
1. Dimension:2000 (L) x 1300 (W) x 1800 (H) mm approx.
2. External power supply: 220~240 V AC, 50/60 Hz
3. Truck Model: DONGFENG
4. Air compressor: at least 0.75 kw; 0~1000 k Pa
5. Receiver tank capacity: 10~25l.
Product composition
Hub | 1PCS |
Receiver tank | 1 PCS |
Air pressure pump | 1PCS |
Air compressor | 1 PCS |
Parking brake | 1PCS |
Service brake | 1 PCS |
Mobile stand | 1 PCS |
Main features
1.The didactic equipment ABS trainer is design to achieve following training aims: Study and understand the principles, operational theory and maintenance of air brake systems found on trucks or large vehicles.
2.Familiarization of all the major components as found on trucks and heavy vehicles so as to form a complete braking system circuit.
3.Color chart showing the brake system circuit is mounted onto the trainer for reference.
4. Brake drum can be rotated on the ABS trainer and have been sectioned to show the active components.
5. Demonstration of vehicle movement and braking by seeing the brake shoe movement and contact to brake drums
6.The didactic equipment commercial vehicle ABS trainer equip with heavy duty steel roller heavy duty lockable castor wheels.
7.The didactic equipment commercial vehicle ABS trainer includes service brake and parking brake.
8.Service brake: dual circuit, air brake system, front and rear brake are self-adjustable, cam, air operated, drum brake with the exhaust auxiliary brake system.
9.Parking brake: spring brakes controlled by manual operated valve through air pipes.
System supporting structure: epoxy coated with primer and finishing coats, RAL5005
Training courses
Function introduction of main components of the ABS air brake system;
Work principle introduction of the ABS air brake system;
Demonstration of how the ABS air brake system works when braking.
