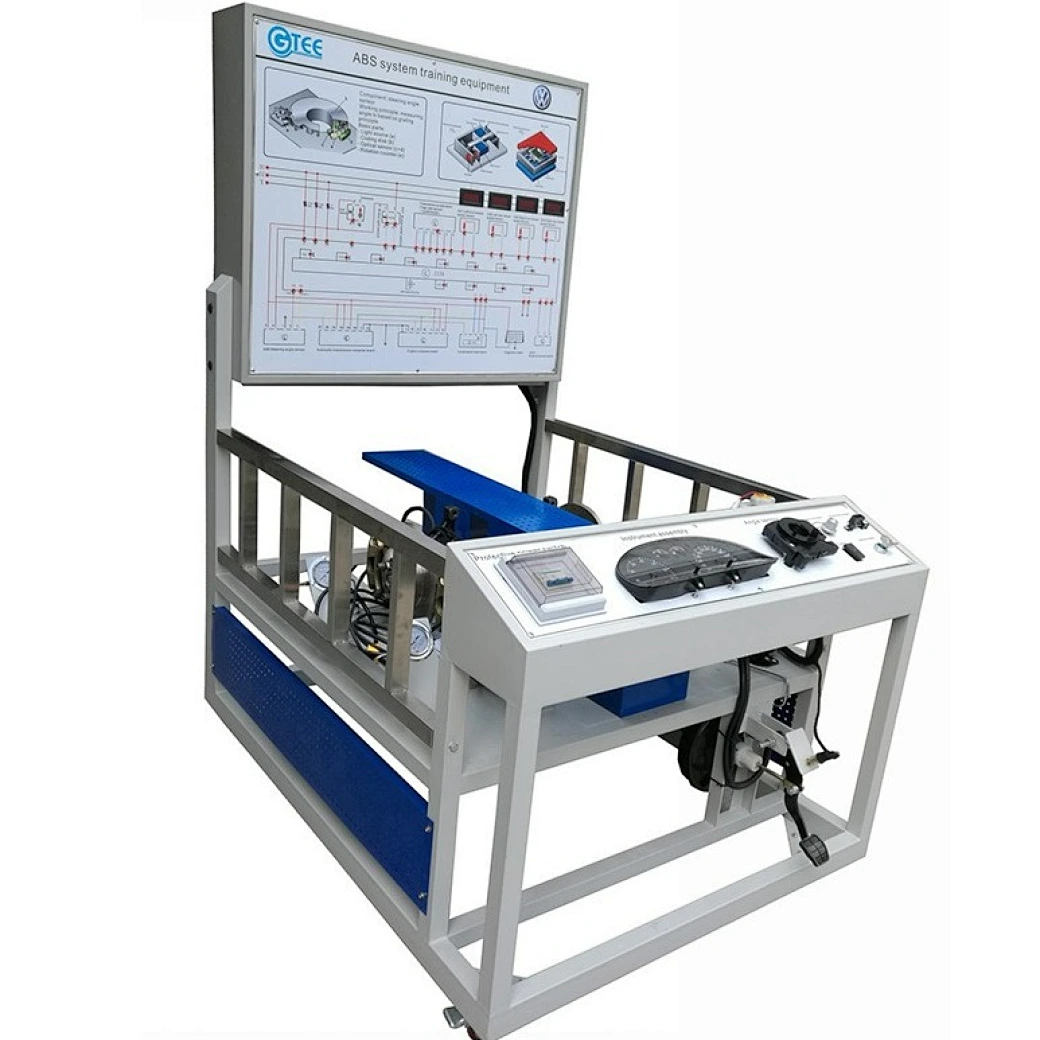

The didactic equipment ABS braking system trainer demonstrates structure and working principle of the auto ABS braking system. This didactic equipment ABS braking system trainer is based on the original ABS braking system components. The ABS braking system trainer didactic equipment is suitable for the teaching needs of the theory and maintenance training of ABS braking system in vocational and technical schools, colleges and universities, training institutions.
Technical parameter
1. Dimensions: about 1000x1600x1800mm
2. Power supply: AC 220V/50Hz;
Product composition
Inverter
1PCS
ABS controller
1PCS
Speed sensors
1PCS
Disc brake
1SET
Brake wheel cylinders
1PCS
Brake master cylinder and slave cylinder
1SET
Electric motor
1PCS
ABS ECU
1PCS
Pressure gauges
1SET
Fault set module
1PCS
Mobile stand with test panel
1SET
Main features
1. The working principle and process is displayed by the LED indicator on the panel. And the change of the wheel speed can be monitored in time.
2. The complete schematics and test terminal of the ABS braking system are printed on the test panel, the signal such as voltage, resistance, frequency, etc. of various sensors can be measured through the test terminals.
3. Pressure gauges are installed on the bench which can display the hydraulic pressure changes in the master cylinder and the brake cylinder when braking.
4. After setting the fault, the trainees can use the instruments to check out the location and the failure through the fault troubleshooting exercises.
Training courses
Function introduction of main components of the ABS braking system;
Work principle introduction of the ABS braking system;
Demonstration of how the ABS braking system works when braking.
Measurement of the signals of the sensors and actuators by multimeter or oscilloscope;
Fault set and troubleshooting
Suitable car models listed below:
P.N.
Car model
P.N.
Car model
GTAT-2011-001
Volkswagen Jetta
GTAT-2011-003
Volkswagen Passat ABS/EBD/ASR
GTAT-2011-002
Volkswagen Passat ABS/EBD
GTAT-2011-004
Toyota Lexus ABS/EBD
GTAT-2011-005
Toyota Corolla ABS/EBD
